A/C Condenser Replacement

  1. Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY  ).
  2. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  3. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  4. Remove the bolt, then disconnect the receiver line (A) from the A/C condenser. Remove the O-ring (B).
    Fig 1: Bolt, Receiver Line, A/C Condenser And O-Ring With Torque Specifications
    G08076371Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolt, then disconnect the discharge hose (A) from the A/C condenser. Remove the O-ring (B).
    Fig 2: Bolt, Discharge Hose, A/C Condenser And O-Ring With Torque Specifications
    G08076372Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the bolts and the radiator upper brackets (A).
    Fig 3: Bolts And Radiator Upper Brackets With Torque Specifications
    G08076373Courtesy of AMERICAN HONDA MOTOR CO., INC.

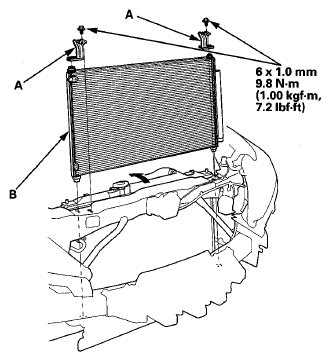

  7. Remove the bolts, then remove the A/C condenser upper mount brackets (A). Remove the A/C condenser (B) by lifting it up. Be careful not to damage the radiator or the A/C condenser fins when removing the A/C condenser.
    Fig 4: Bolts, A/C Condenser Upper Mount Brackets And A/C Condenser With Torque Specifications
    G08076374Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the A/C condenser in the reverse order of removal, and note these items:
    • If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C REFRIGERANT OIL REPLACEMENT  ).
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
    • Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
    • Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
    • Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
    • Charge the system (see SYSTEM CHARGING  ).
  9. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
