A/C Line Replacement

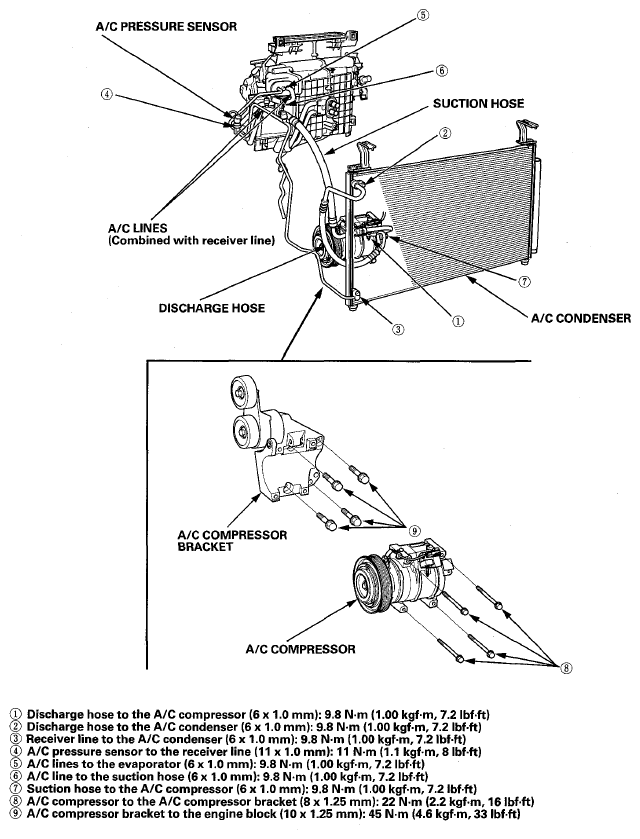

Fig 1: A/C Line Replacement Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
