Heater Unit/Core Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  2. Recover the refrigerant with a recovery/recycling/ charging station (see REFRIGERANT RECOVERY  ).
  3. Disconnect the A/C line from the evaporator core (see step  3 ).
  4. When the engine is cool, drain the engine coolant from the radiator (see COOLANT CHECK ).
  5. From under the hood, slide the hose clamps (A) back. Disconnect the inlet heater hose (B) and the outlet heater hose (C) from the heater unit. Note the layout of the hoses.

    Engine coolant will run out when the hoses are disconnected; drain it into a clean drip pan. Be sure not to let coolant spill on the electrical parts or the painted surfaces. If any coolant spills, rinse it off immediately.

    Fig 1: Identifying Hose Clamps, Inlet Heater Hose And Outlet Heater Hose
    G08076400Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the mounting nut from the heater unit. Take care not to damage or bend the fuel lines or the brake lines.
    Fig 2: Mounting Nut And Heater Unit With Torque Specifications
    G08076401Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the dashboard (see DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION ).

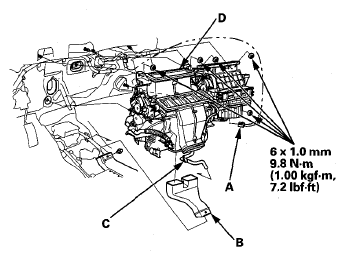

  8. Disconnect the right engine compartment wire harness connector (C201) (A). Remove the duct (B) and the drain hose (C). Then remove the mounting nuts and the blower-heater unit (D).
    Fig 3: Right Engine Compartment Wire Harness Connector (C201), Mounting Nuts And Blower-Heater Unit With Torque Specifications
    G08076402Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Disconnect the connector (A) from the blower motor. Detach the harness clips (B).
    Fig 4: Identifying Connector, Blower Motor And Harness Clips
    G08076403Courtesy of AMERICAN HONDA MOTOR CO., INC.

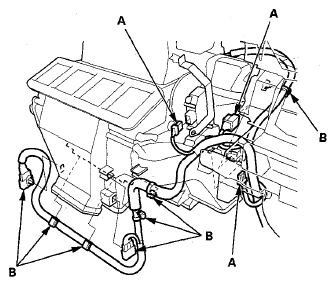

  10. Disconnect these connectors (A): The passenger's mode control motor, the power transistor, and the passenger's air mix control motor. Detach the harness clips (B).
    Fig 5: Identifying Connectors Of Passenger's Mode Control Motor, Power Transistor, And Passenger's Air Mix Control Motor And Harness Clips
    G08076404Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Disconnect these connectors (A): The recirculation control motor, and the climate control unit. Detach the harness clip (B).
    Fig 6: Identifying Connectors Of Recirculation Control Motor, Climate Control Unit And Harness Clip
    G08076405Courtesy of AMERICAN HONDA MOTOR CO., INC.

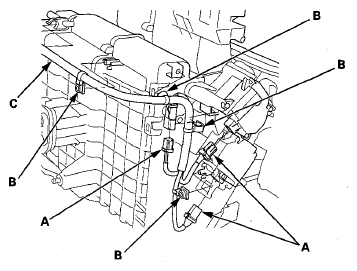

  12. Disconnect these connectors (A): the driver's air mix control motor, the driver's mode control motor, and evaporator temperature sensor. Detach the harness clips (B) and remove the wire harness (C).
    Fig 7: Identifying Connectors Of Driver's Air Mix Control Motor, Driver's Mode Control Motor, Evaporator Temperature Sensor, Harness Clips And Wire Harness
    G08076406Courtesy of AMERICAN HONDA MOTOR CO., INC.

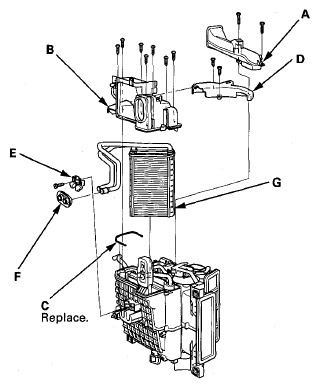

  13. Remove the self-tapping screws, the passenger's heater duct (A), the joint duct (B), the seal (C), and the heater core cover (D).
    Fig 8: Identifying Self-Tapping Screws, Passenger's Heater Duct, Joint Duct, Seal And Heater Core Cover
    G08076407Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Remove the self-tapping screw, the heater pipe bracket (E), and the grommet (F), and carefully pull out the heater core (G).
  15. Install the heater core in the reverse order of removal.
  16. Install the heater unit in the reverse order of removal, and note these items:
    • Do not interchange the inlet and outlet heater hoses, and install the hose clamps securely.
    • Refill the cooling system with engine coolant (see COOLANT CHECK ).
    • Make sure that there is no coolant leakage.
    • Charge the system (see SYSTEM CHARGING  ).
    • Make sure that there is no air leakage.
    • Make sure that there is no refrigerant leakage.
  17. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
