Engine Control System & Engine Mechanical - Testing & Troubleshooting (Hybrid)
›
Component Location Index
›

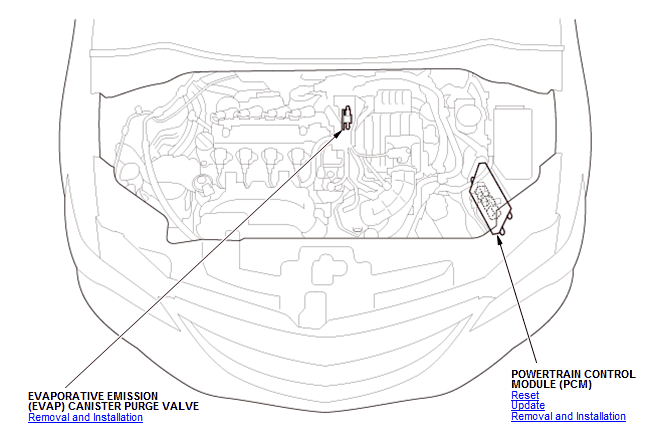

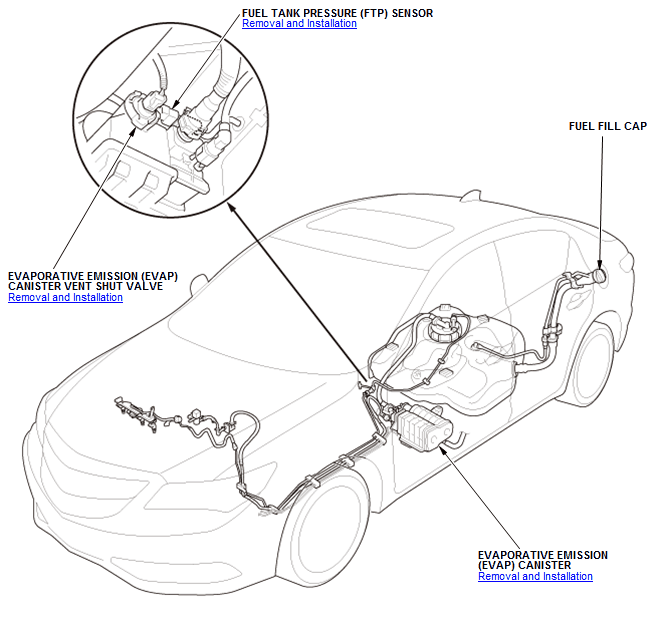

EVAP Control System Component Location Index
EVAP Control System Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
