HOMELINK Remote Control System
›
Circuit Diagram
Circuit Diagram

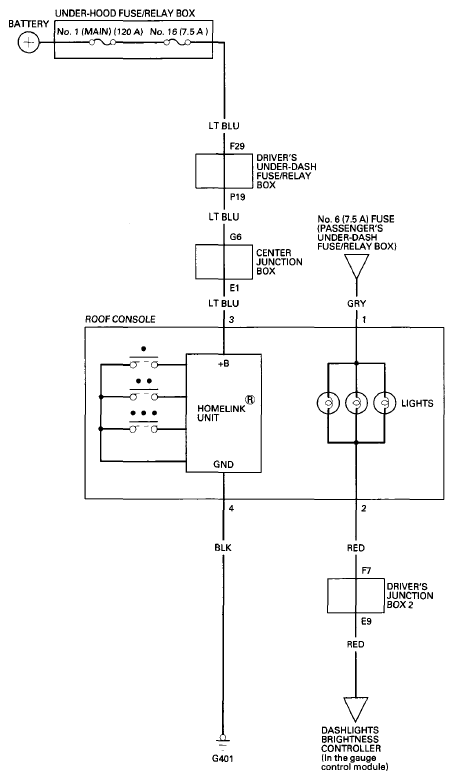

Fig 1: HomeLink Remote Control System Circuit Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
