ANC/Active Sound Control Unit Connector End View
ANC/Active Sound Control Unit Connector End View

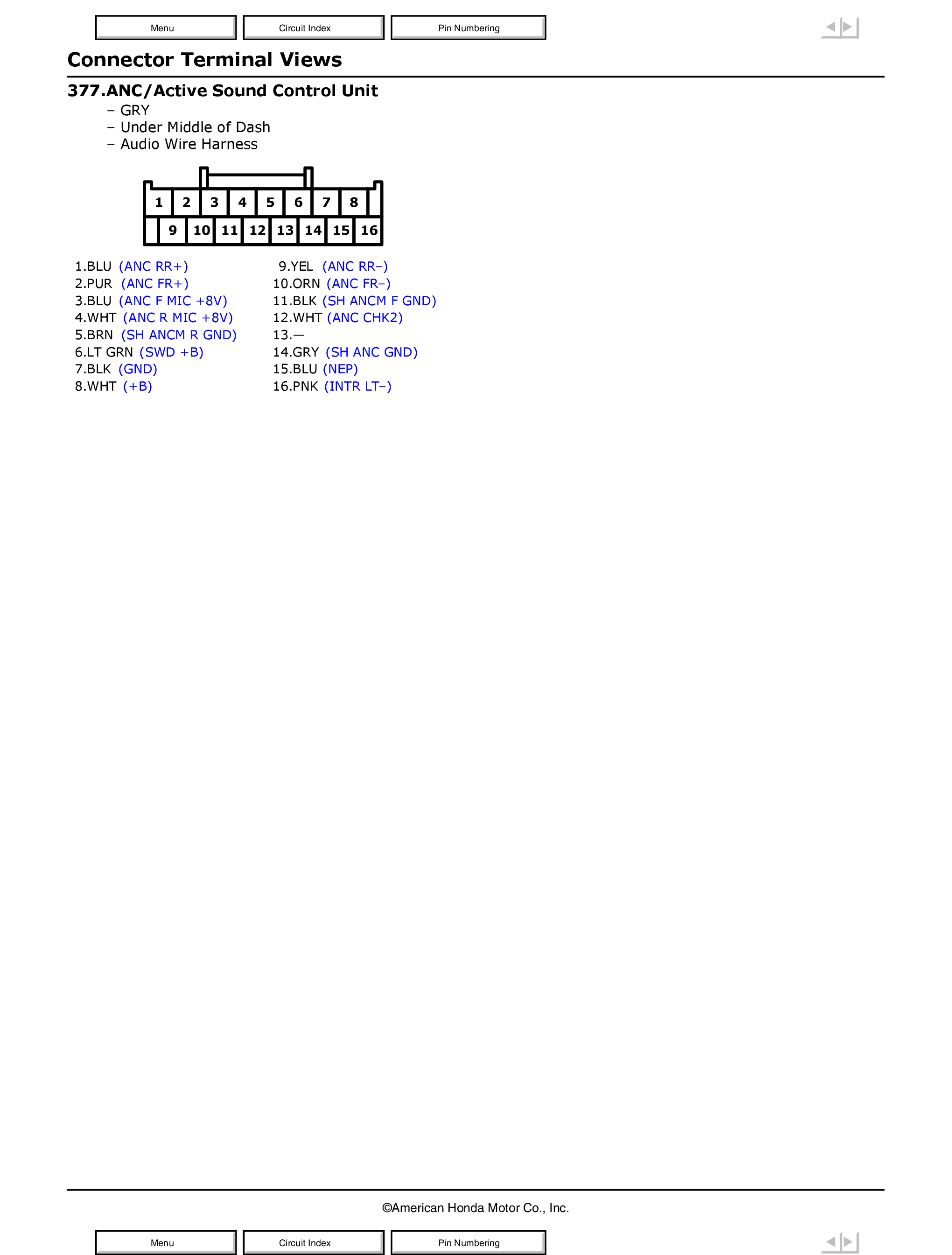

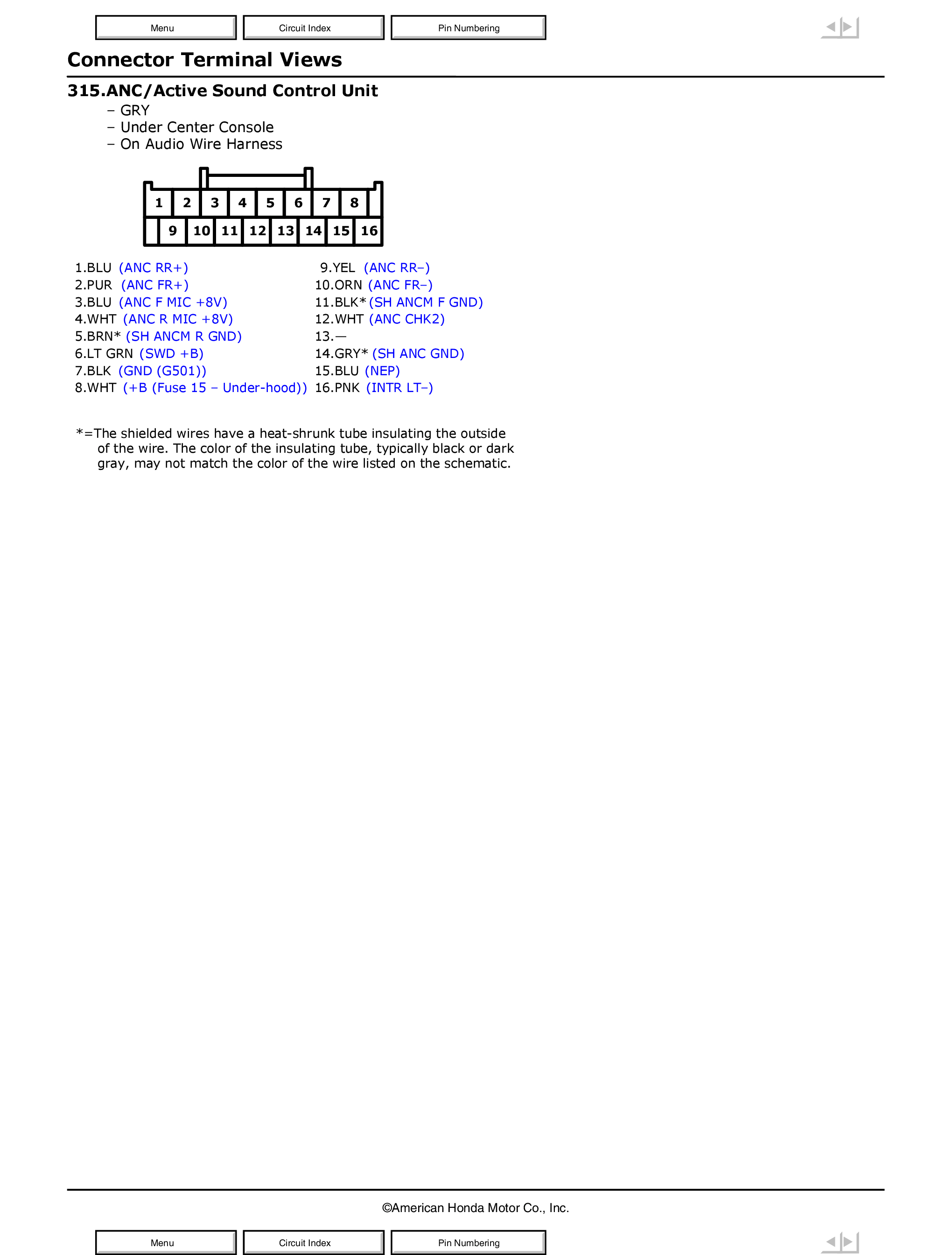

Fig 1: ANC/Active Sound Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: ANC/Active Sound Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
