Audio Remote, HFL-Navigation, Voice Control Switch (With Navigation) Connector End View
Audio Remote, HFL-Navigation, Voice Control Switch (With Navigation) Connector End View

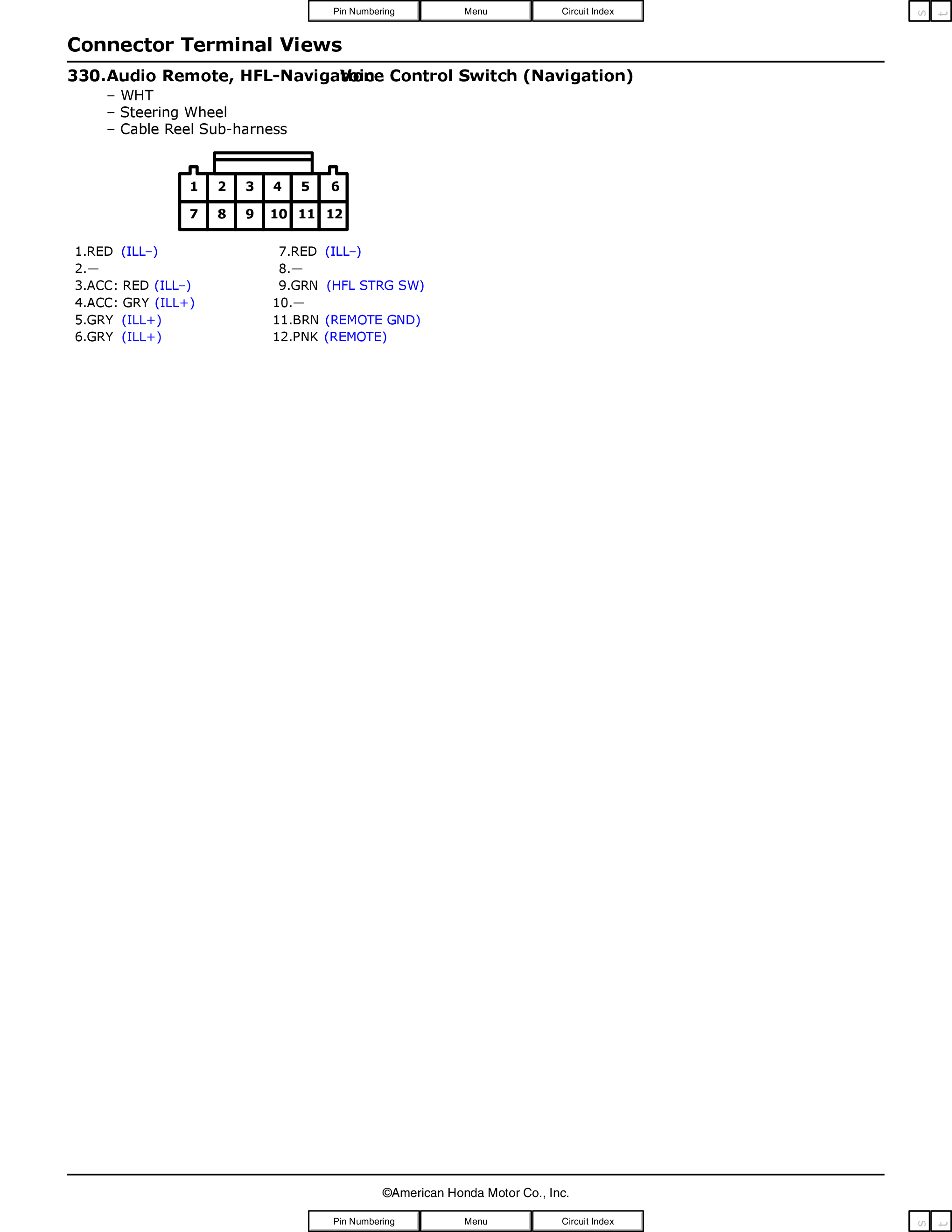

Fig 1: Audio Remote, HFL-Navigation, Voice Control Switch (With Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
