Audio-Navigation and HVAC Switch Panel Connector End View
Audio-Navigation and HVAC Switch Panel Connector End View

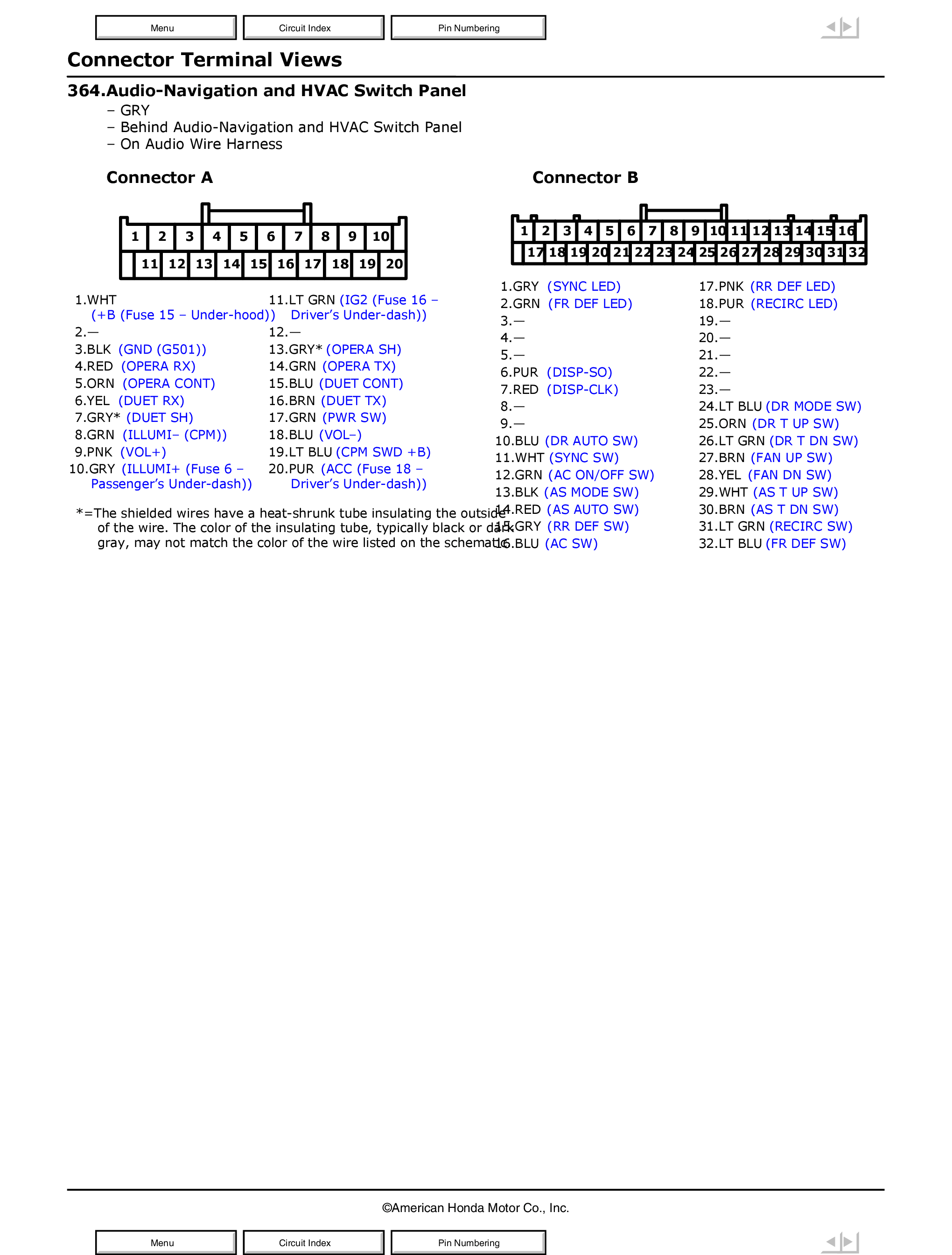

Fig 1: Audio-Navigation and HVAC Switch Panel Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
