Auxiliary Jack Assembly Connector End View
Auxiliary Jack Assembly Connector End View

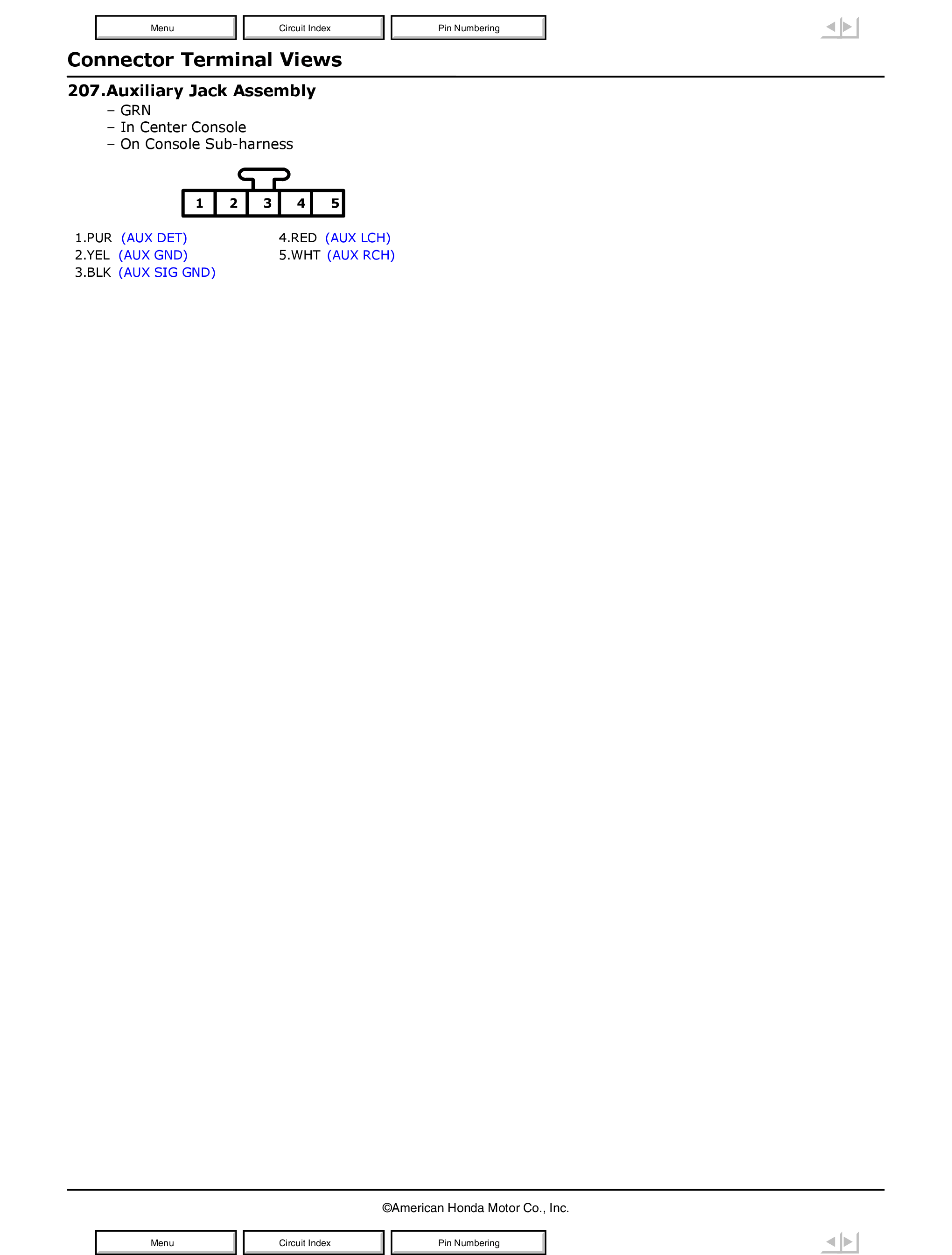

Fig 1: Auxiliary Jack Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
