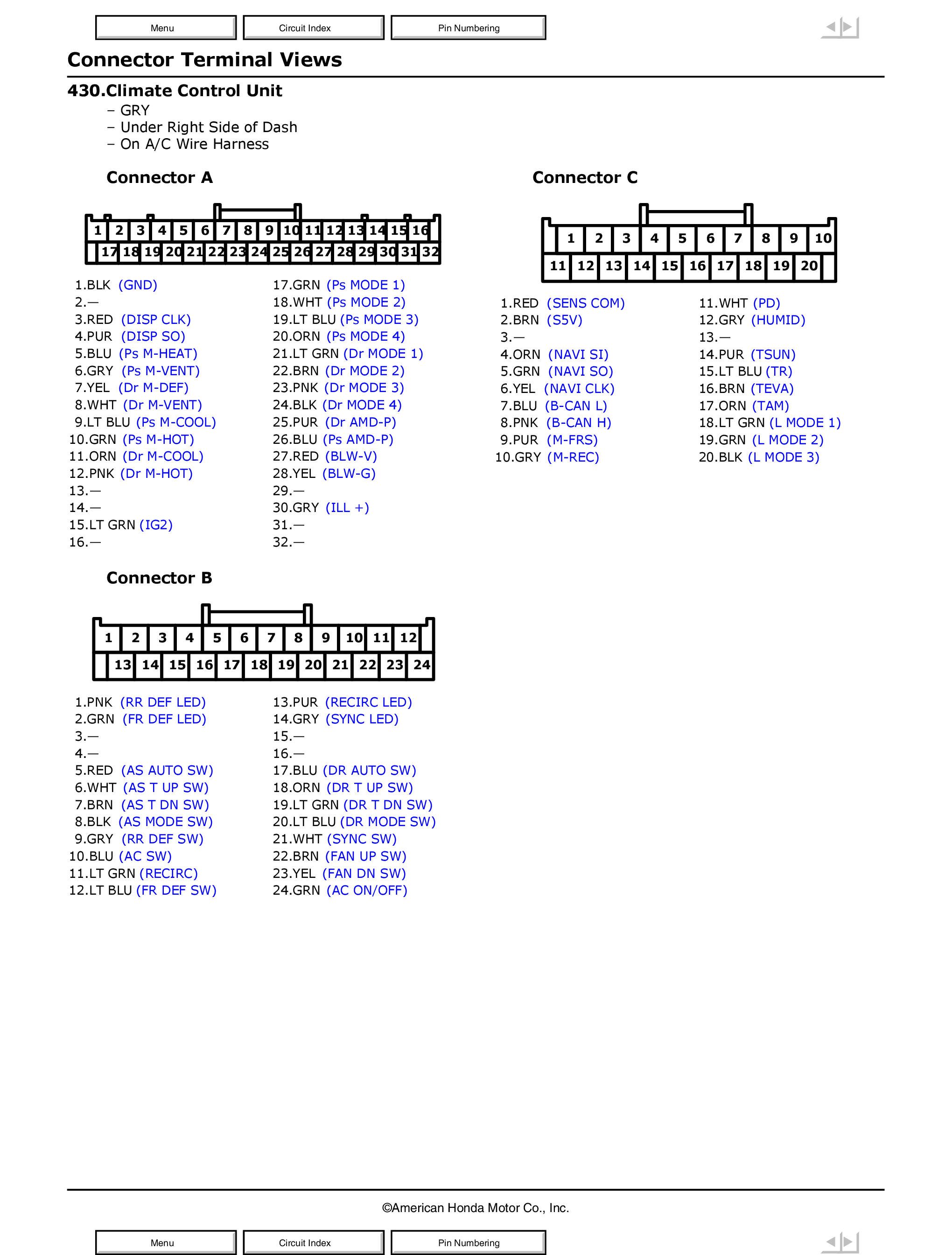

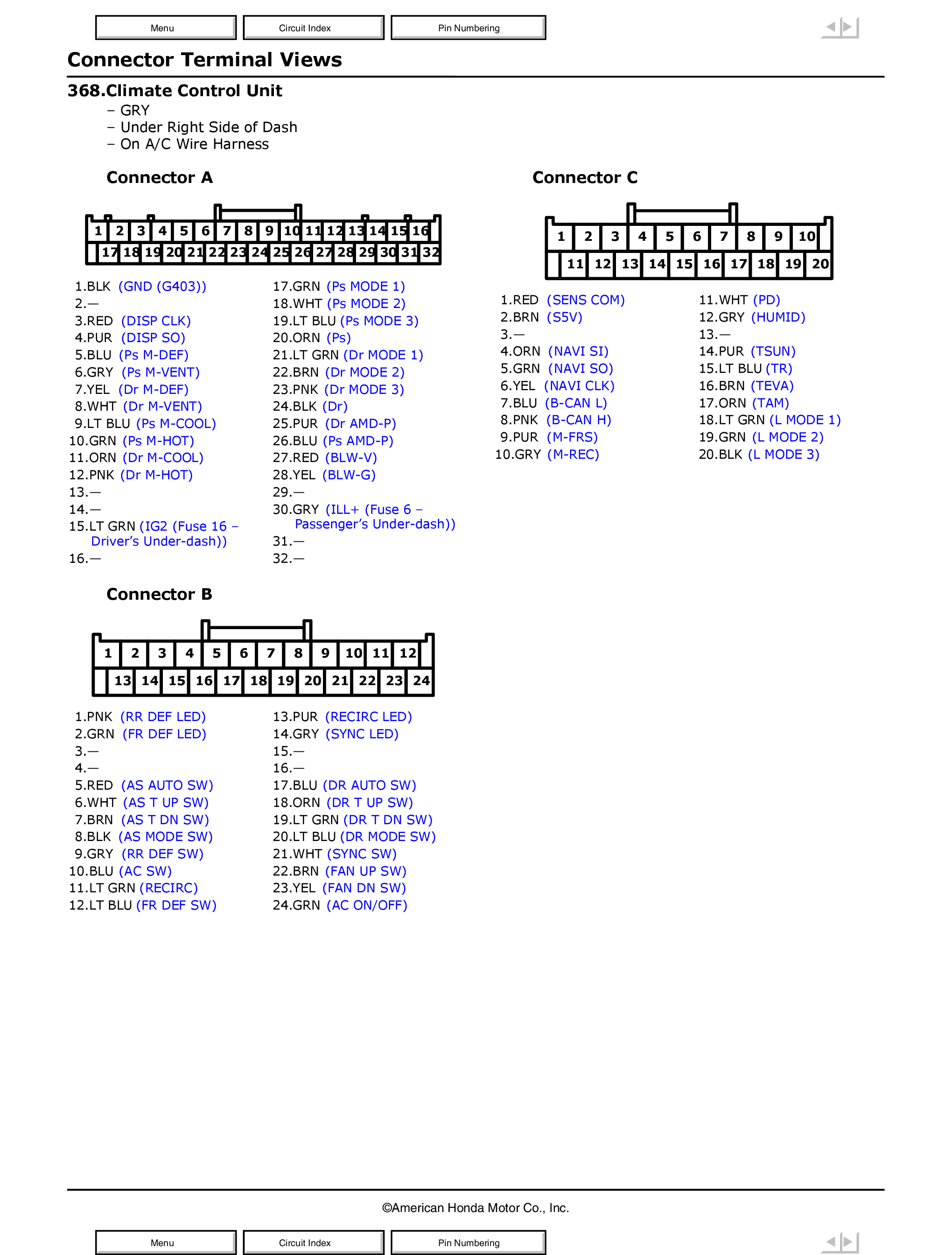

Climate Control Unit Connector End View

Fig 1: Climate Control Unit Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Climate Control Unit Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
