Driver's Mode Control Motor Connector End View
Driver's Mode Control Motor Connector End View

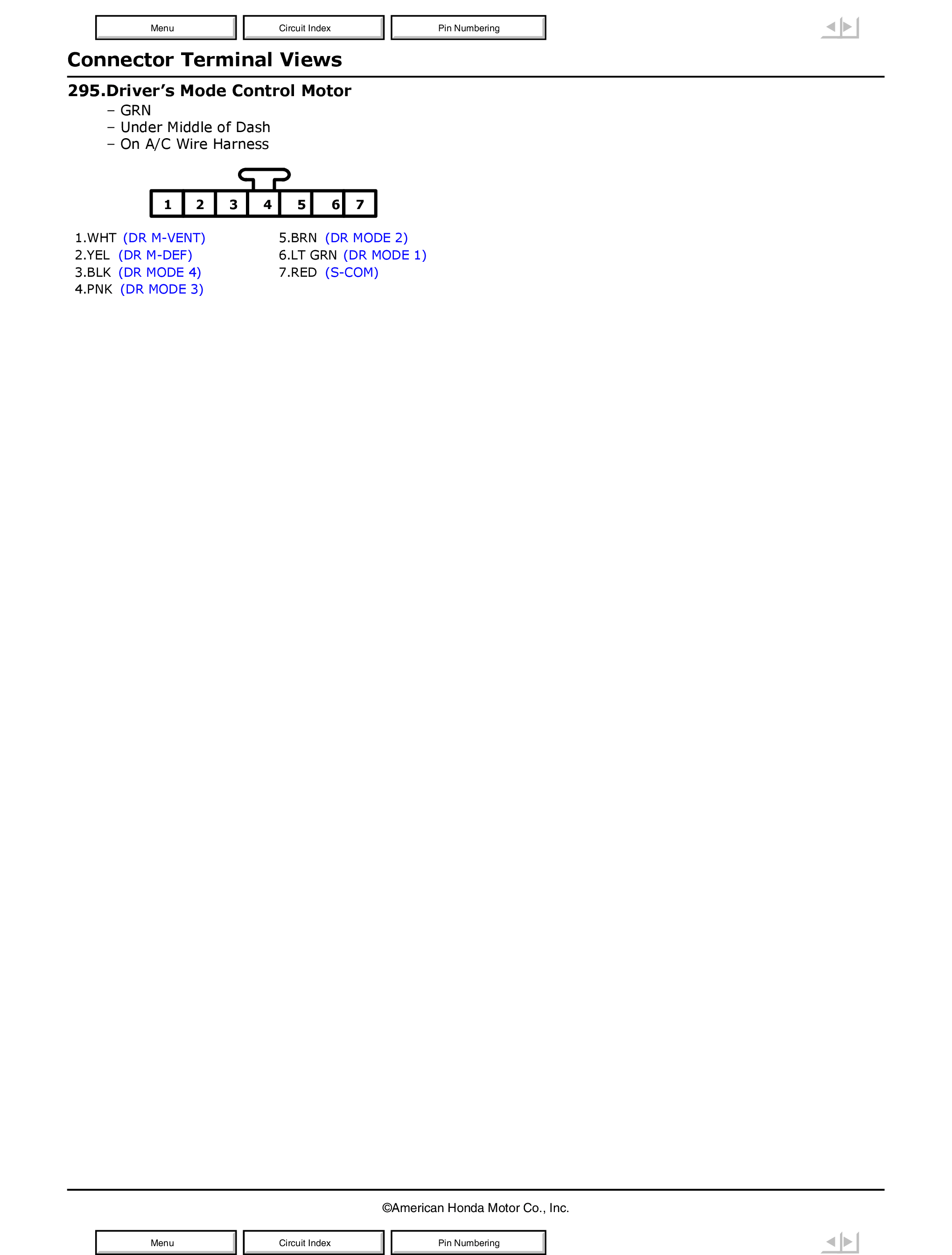

Fig 1: Driver's Mode Control Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

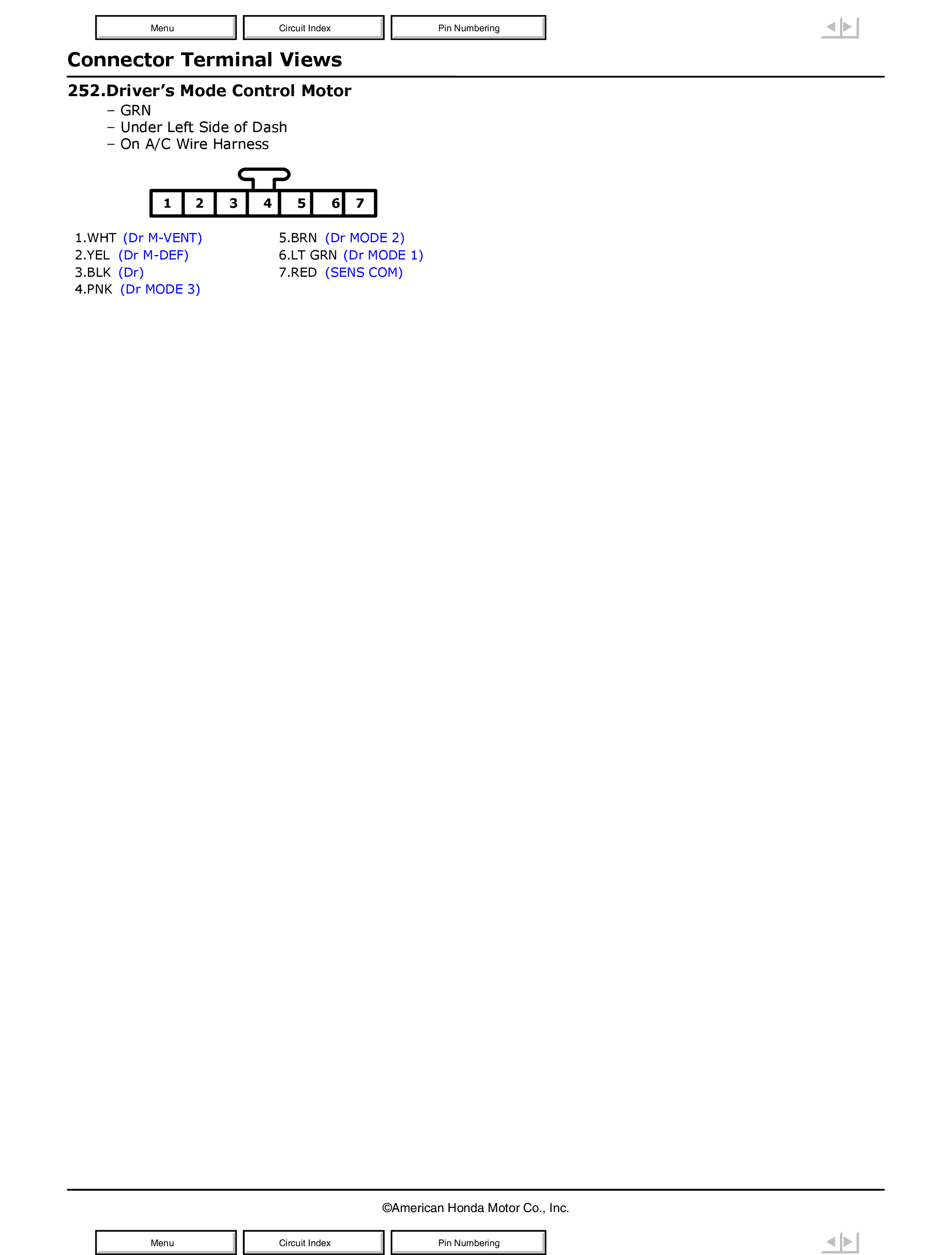

Fig 1: Driver's Mode Control Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
