Front Passenger's Mode Control Motor Connector End View
Front Passenger's Mode Control Motor Connector End View

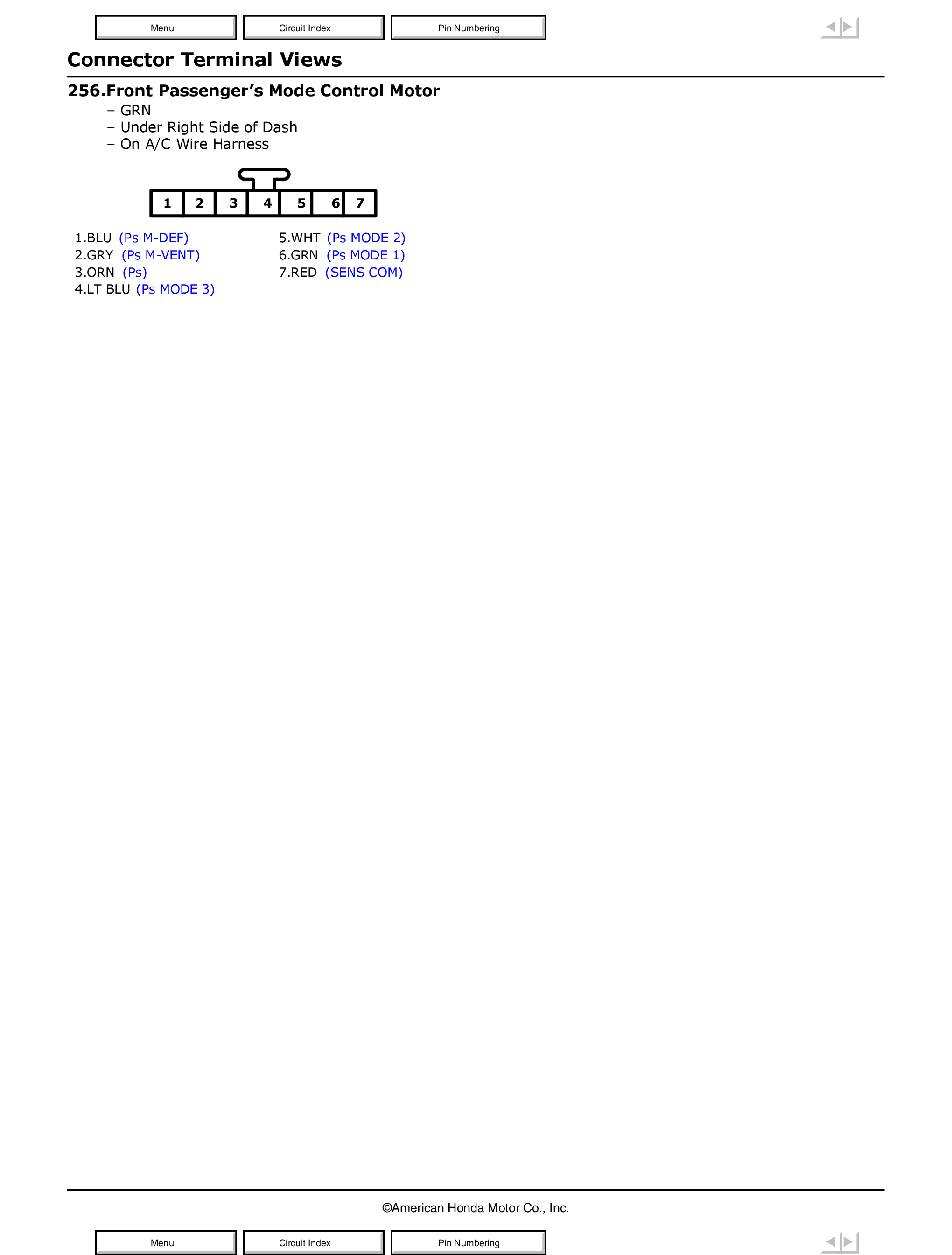

Fig 1: Front Passenger's Mode Control Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
