Left BSI Radar Unit Connector End View
Left BSI Radar Unit Connector End View

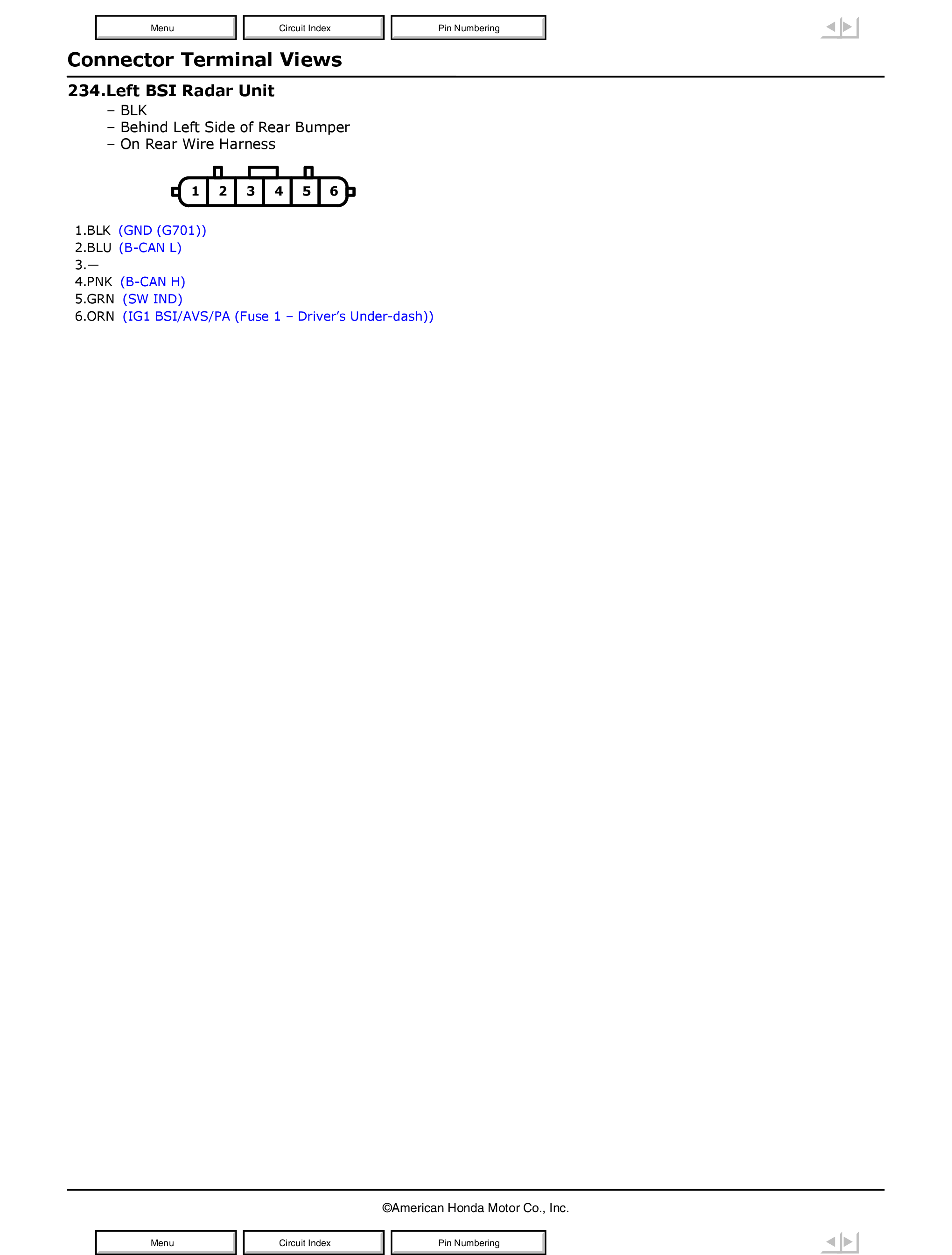

Fig 1: Left BSI Radar Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
