Left License Plate Light Connector End View
Left License Plate Light Connector End View

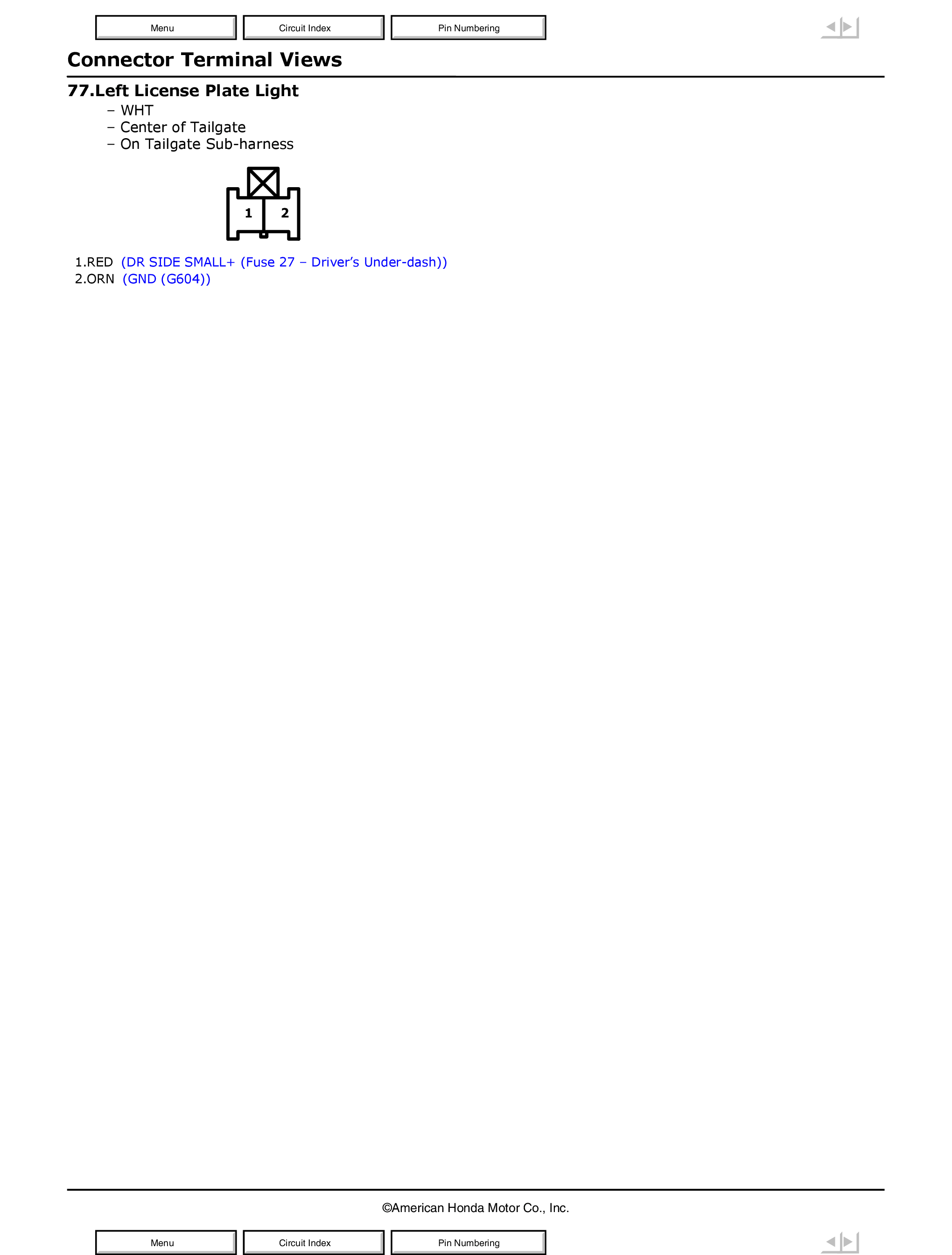

Fig 1: Left License Plate Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

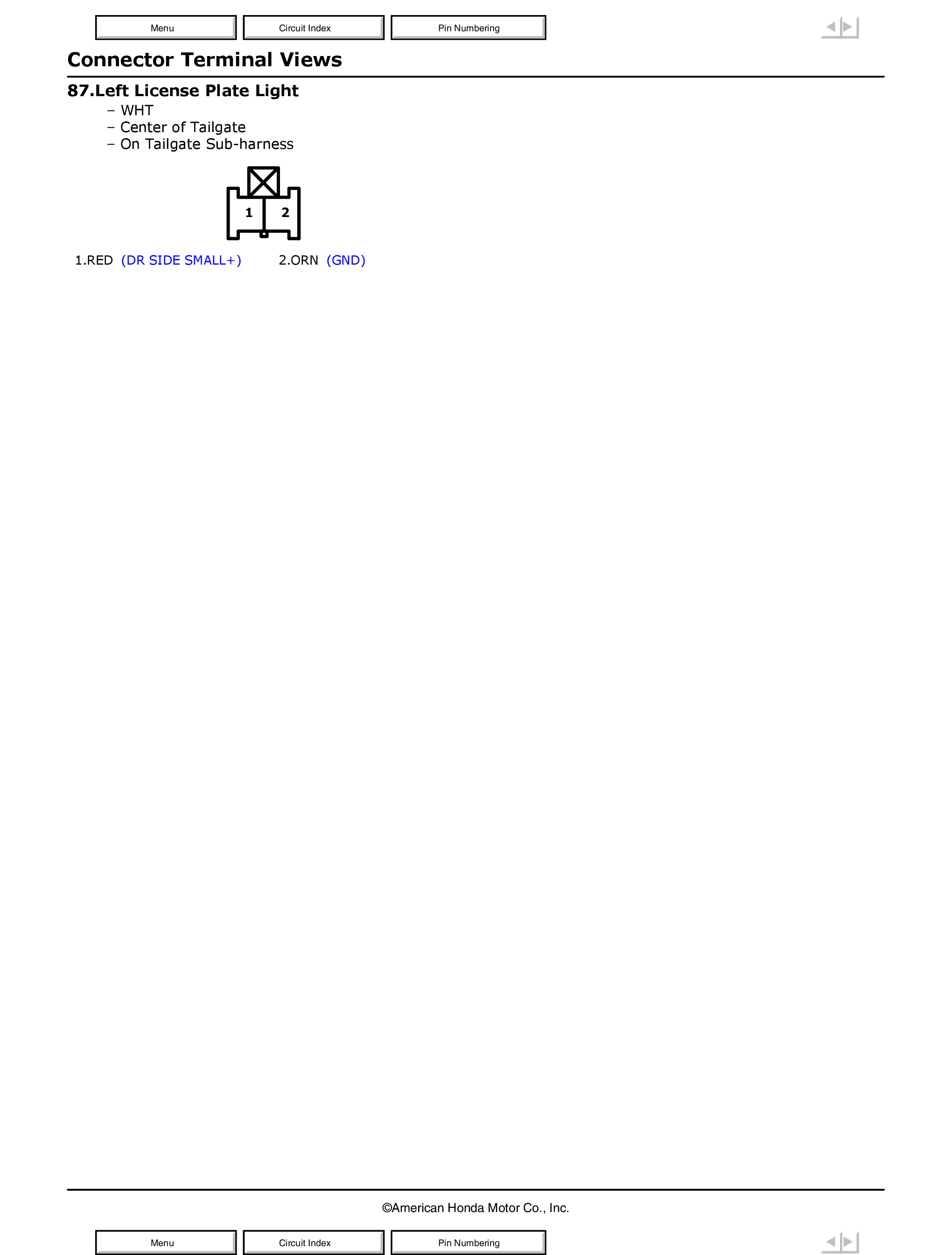

Fig 1: Left License Plate Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
