PCM (Without Keyless Access System) Connector End View
PCM (Without Keyless Access System) Connector End View

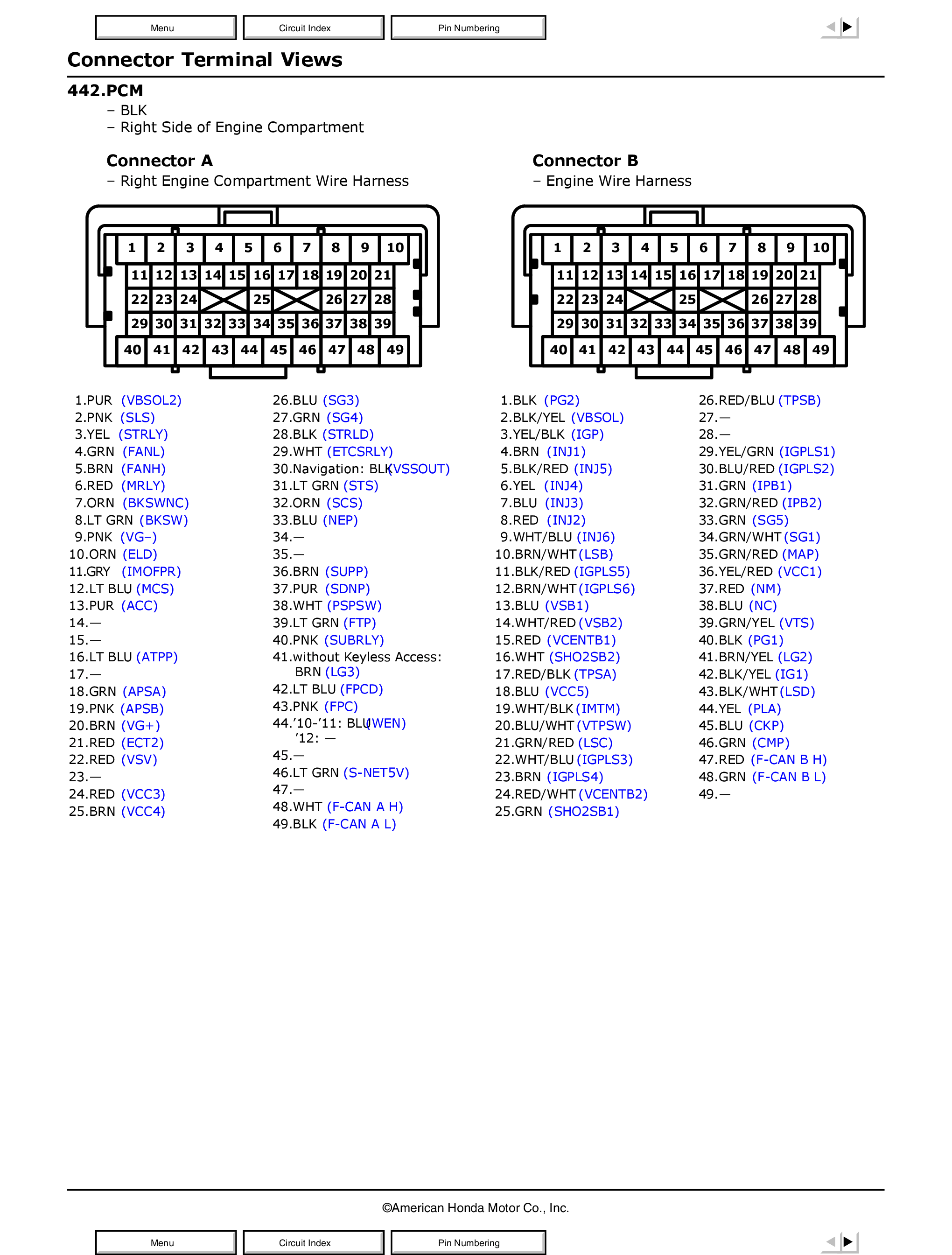

Fig 1: PCM (Without Keyless Access System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
