Power Control Unit (With Keyless Access System) Connector End View
Power Control Unit (With Keyless Access System) Connector End View

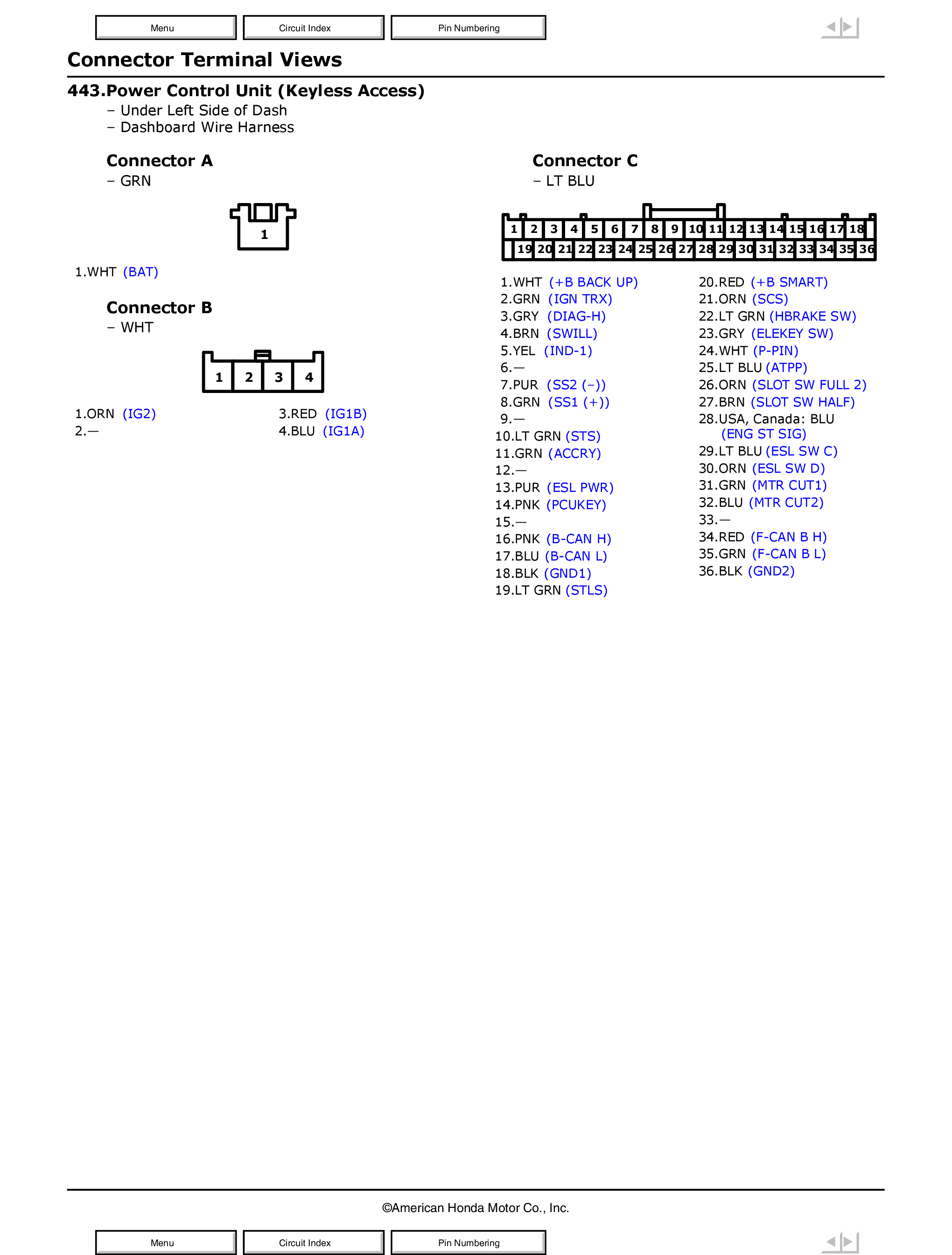

Fig 1: Power Control Unit (With Keyless Access System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
