Power Tailgate Inside Switch Connector End View
Power Tailgate Inside Switch Connector End View

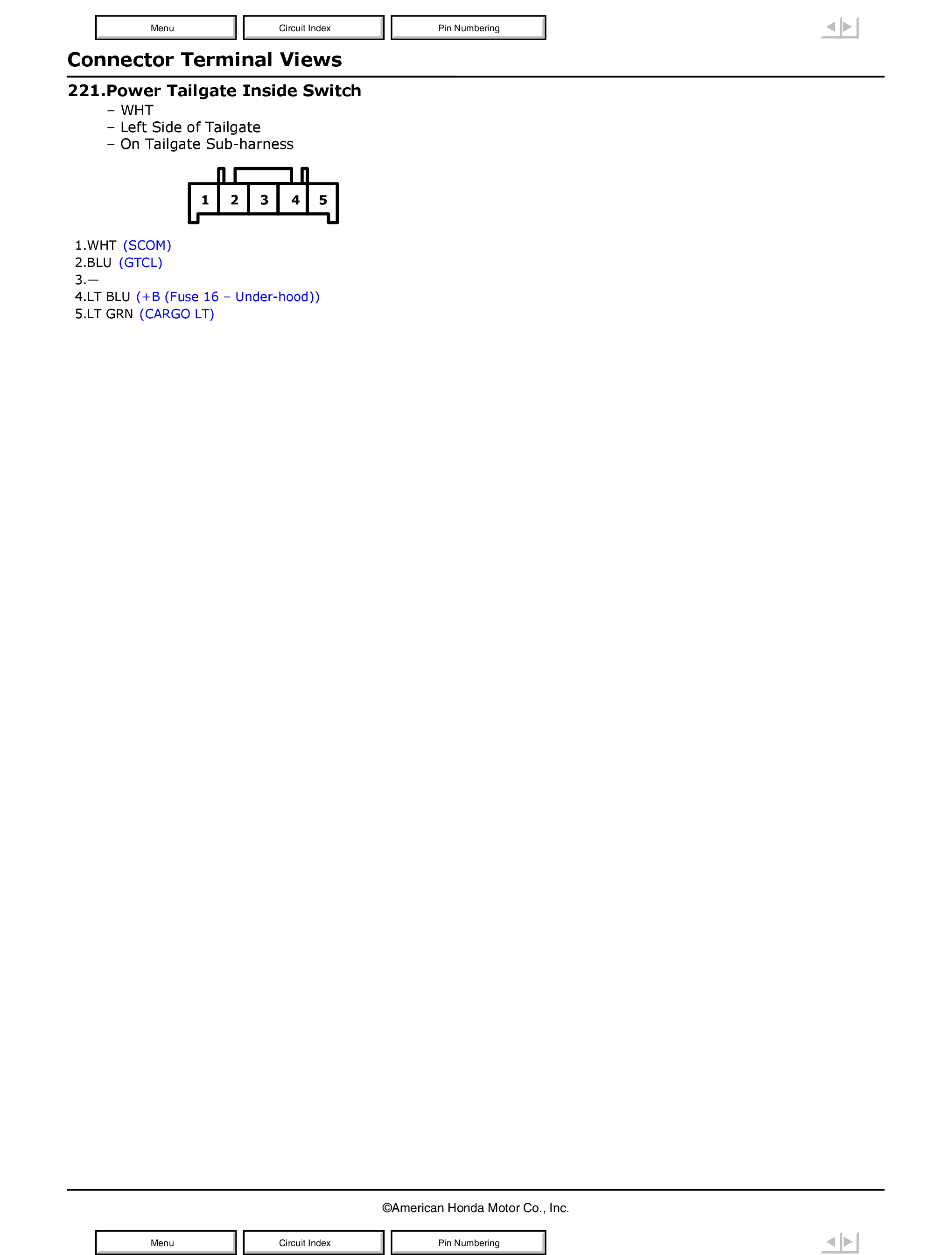

Fig 1: Power Tailgate Inside Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

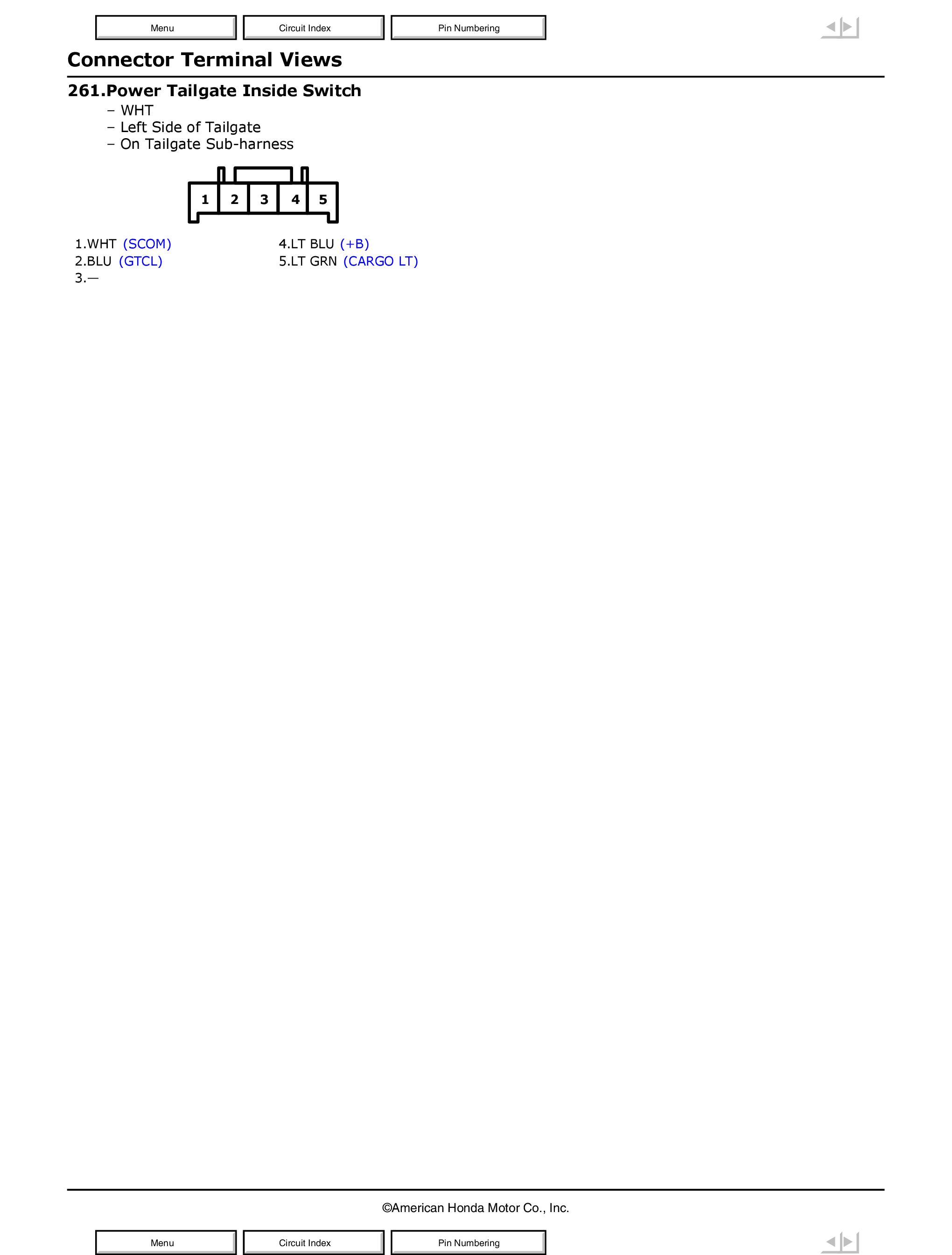

Fig 1: Power Tailgate Inside Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
