Power Tilt Motor/Position Sensor Connector End View
Power Tilt Motor/Position Sensor Connector End View

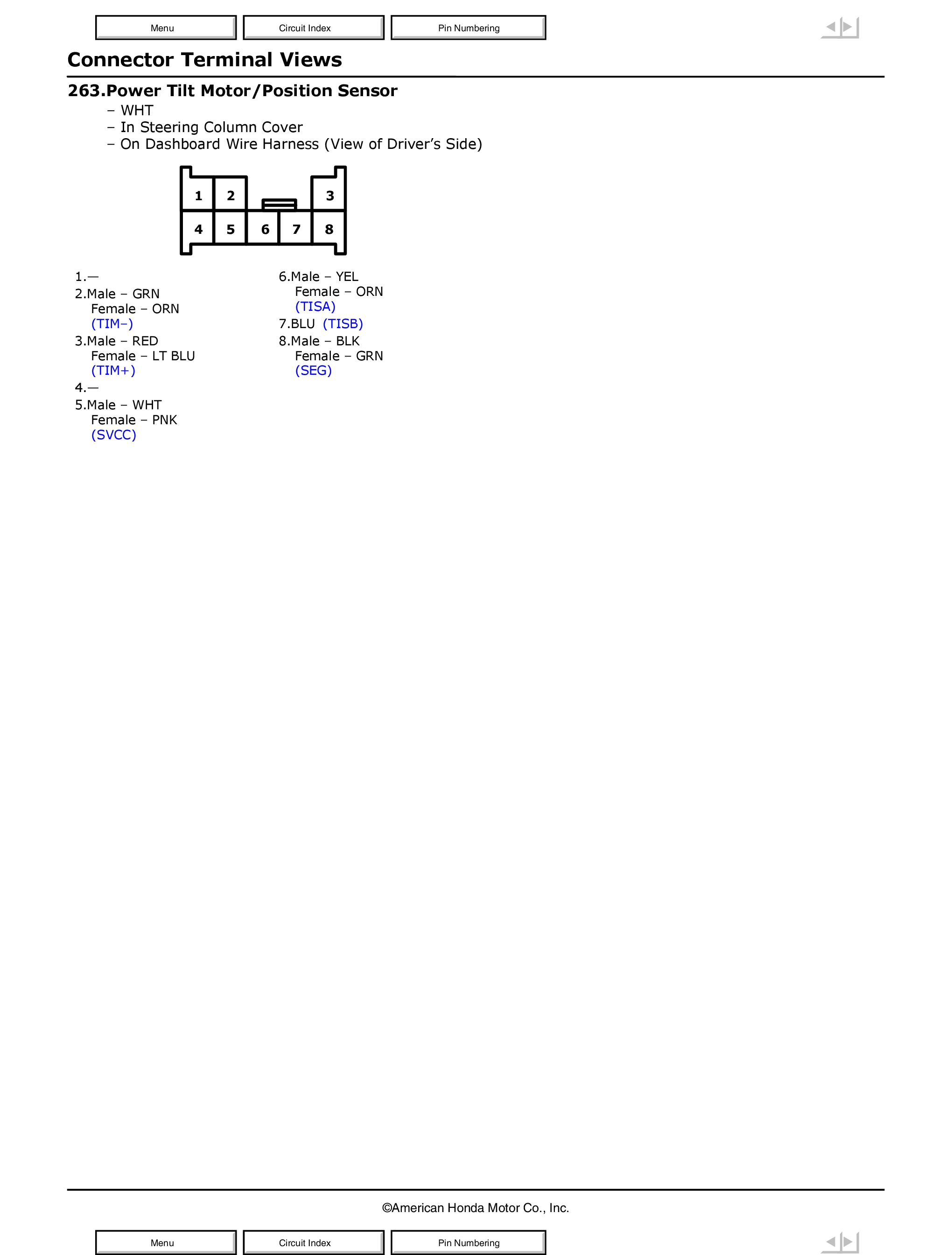

Fig 1: Power Tilt Motor/Position Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

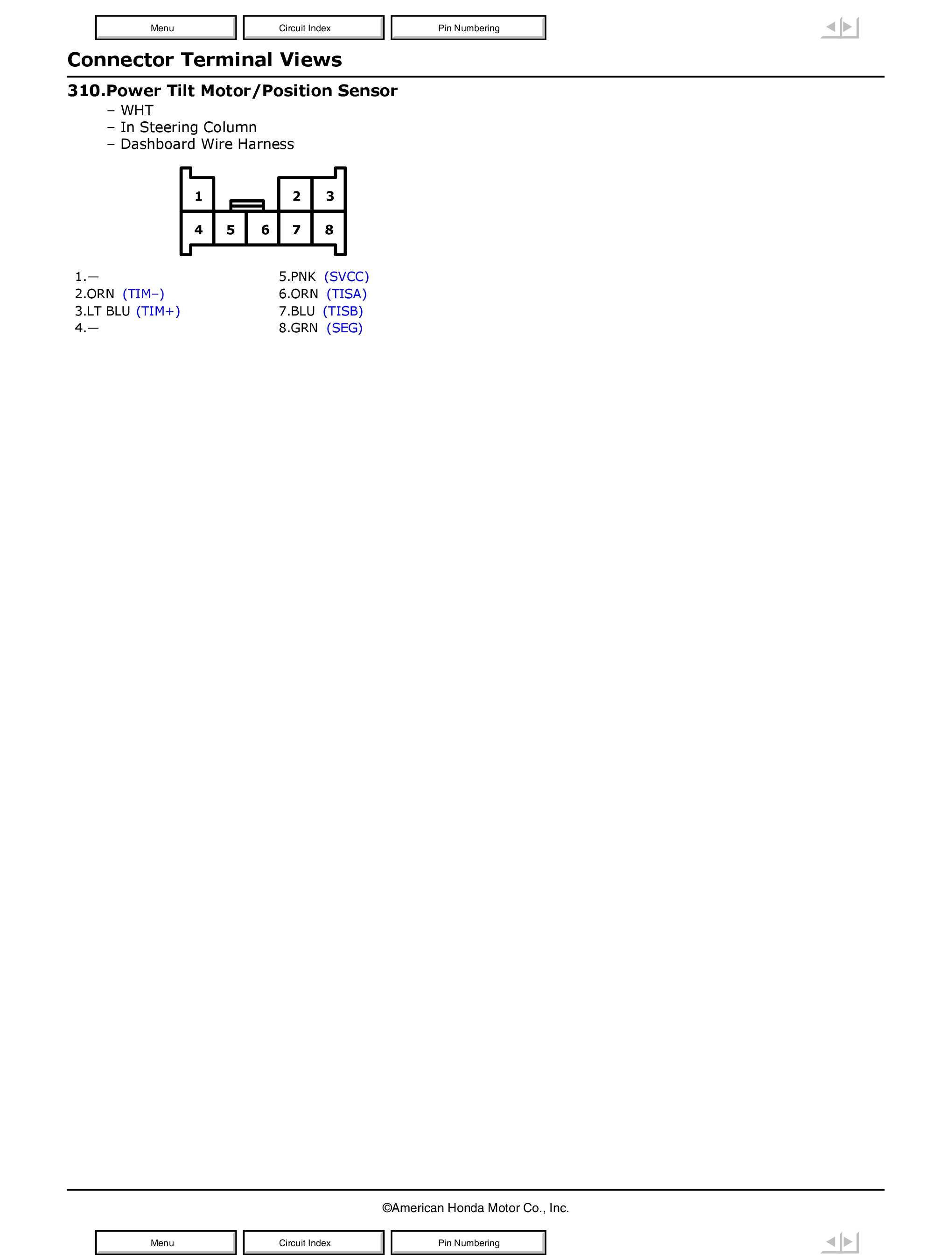

Fig 1: Power Tilt Motor/Position Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
