Remote Slot Control Unit (With Keyless Access System) Connector End View
Remote Slot Control Unit (With Keyless Access System) Connector End View

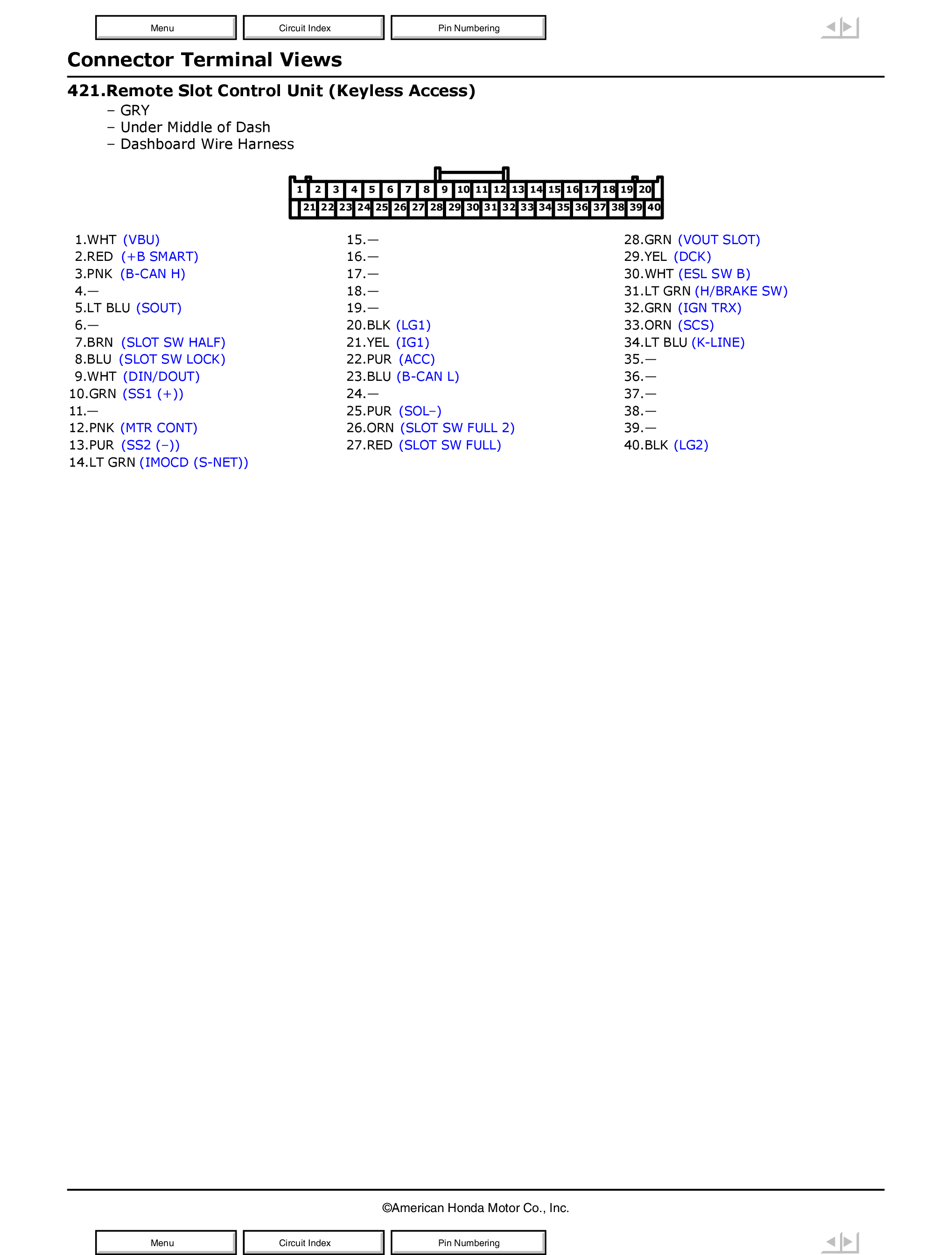

Fig 1: Remote Slot Control Unit (With Keyless Access System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
