Right Fog Light Connector End View
Right Fog Light Connector End View

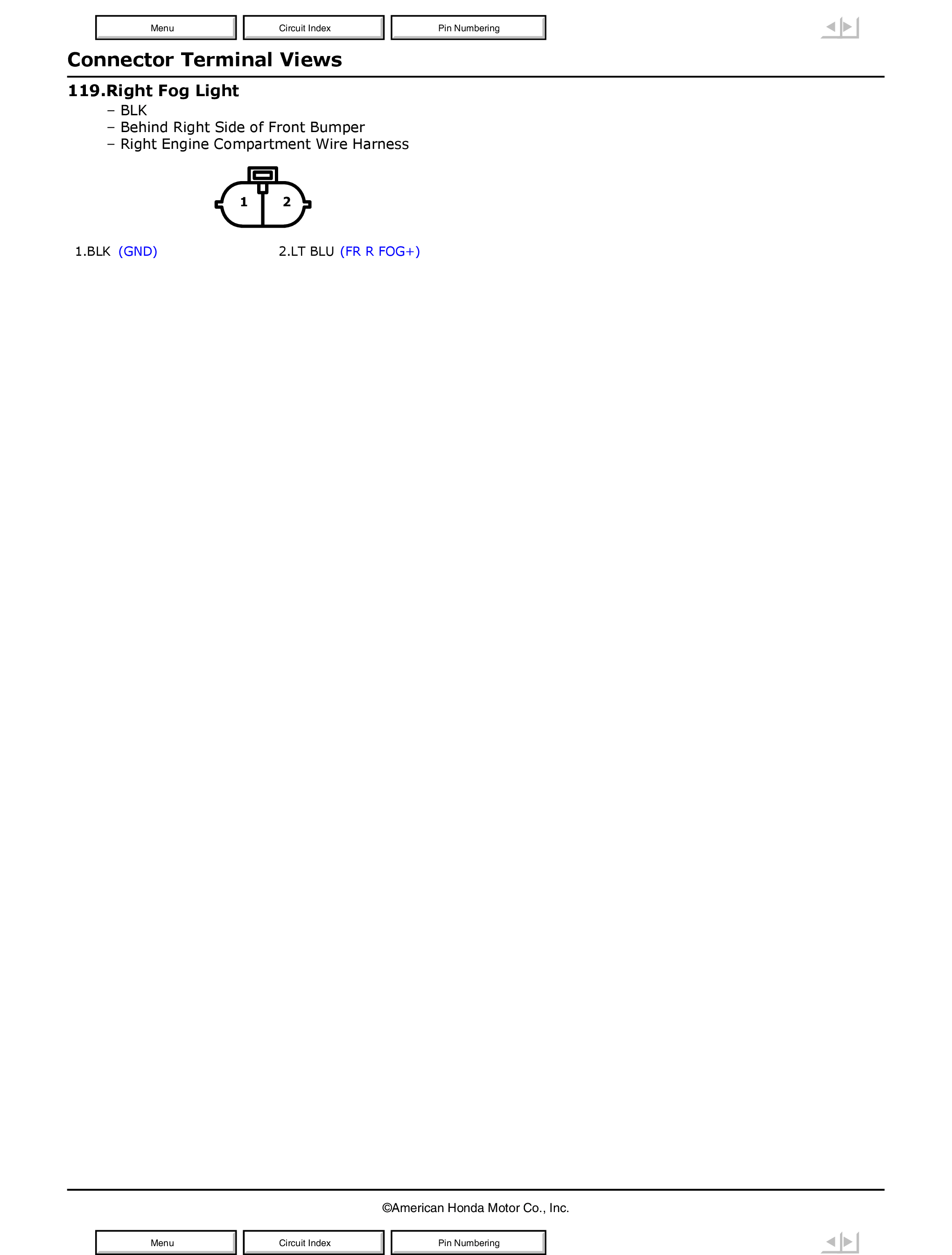

Fig 1: Right Fog Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

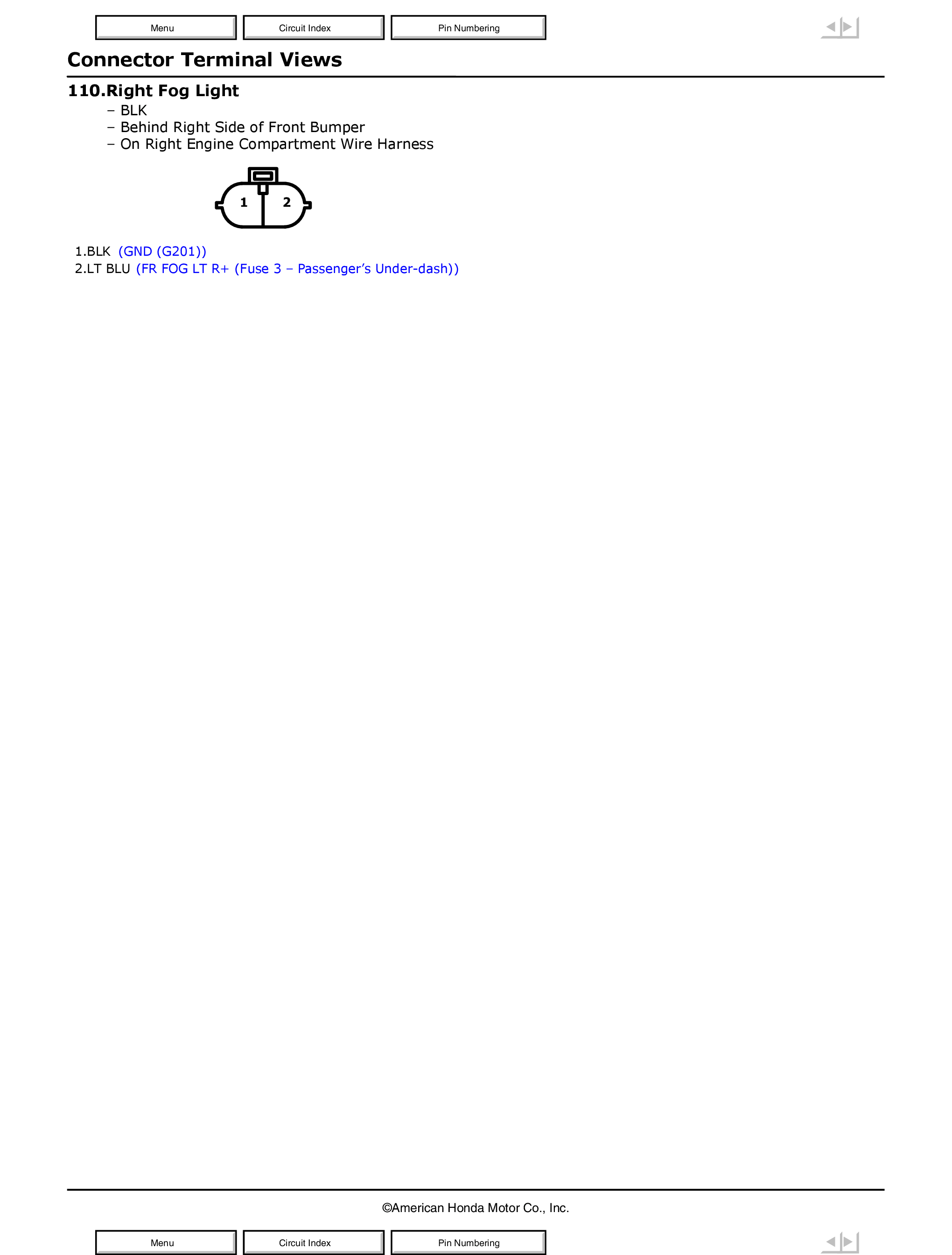

Fig 1: Right Fog Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
