Under-hood Fuse/Relay Box Connector End View
Under-hood Fuse/Relay Box Connector End View

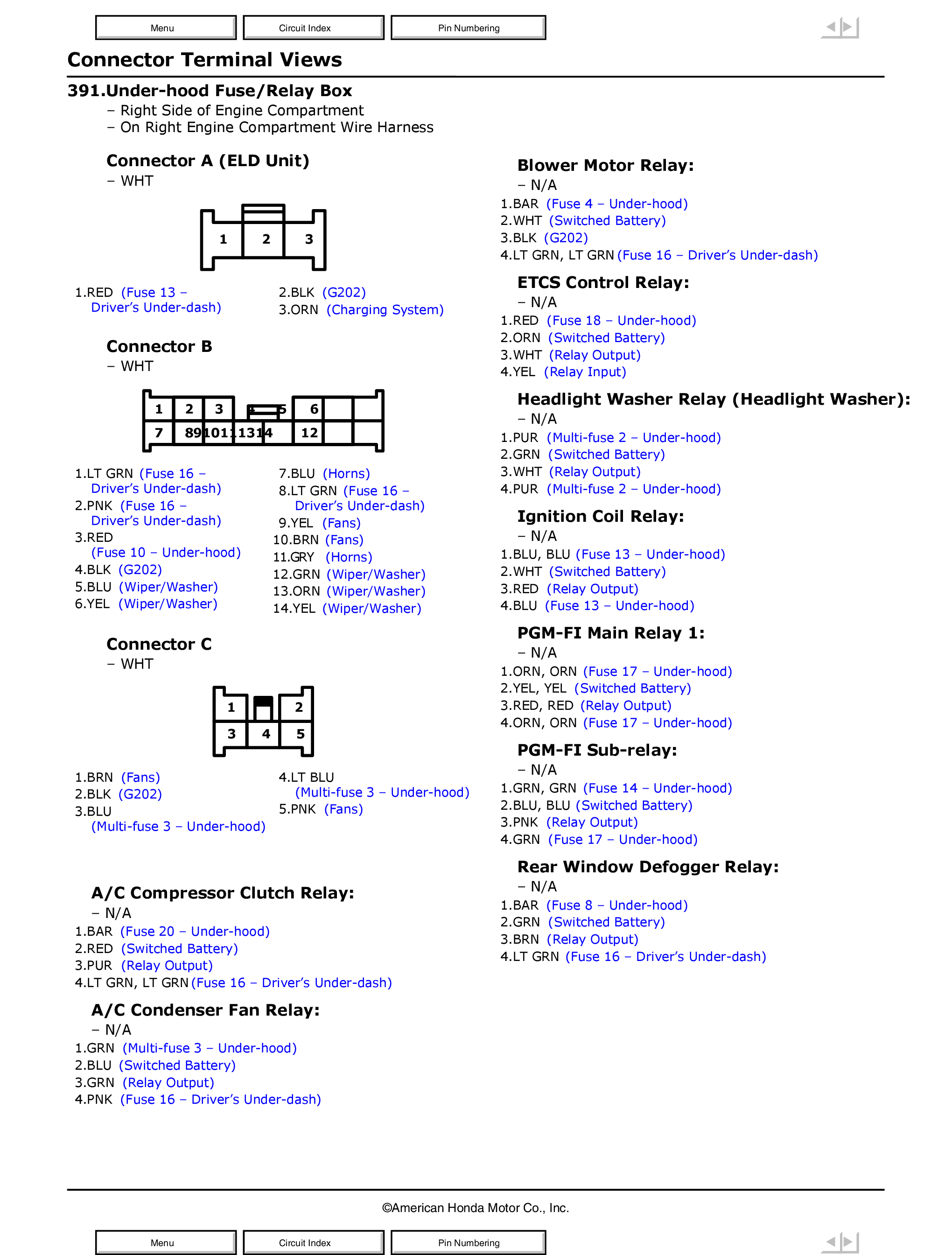

Fig 1: Under-hood Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

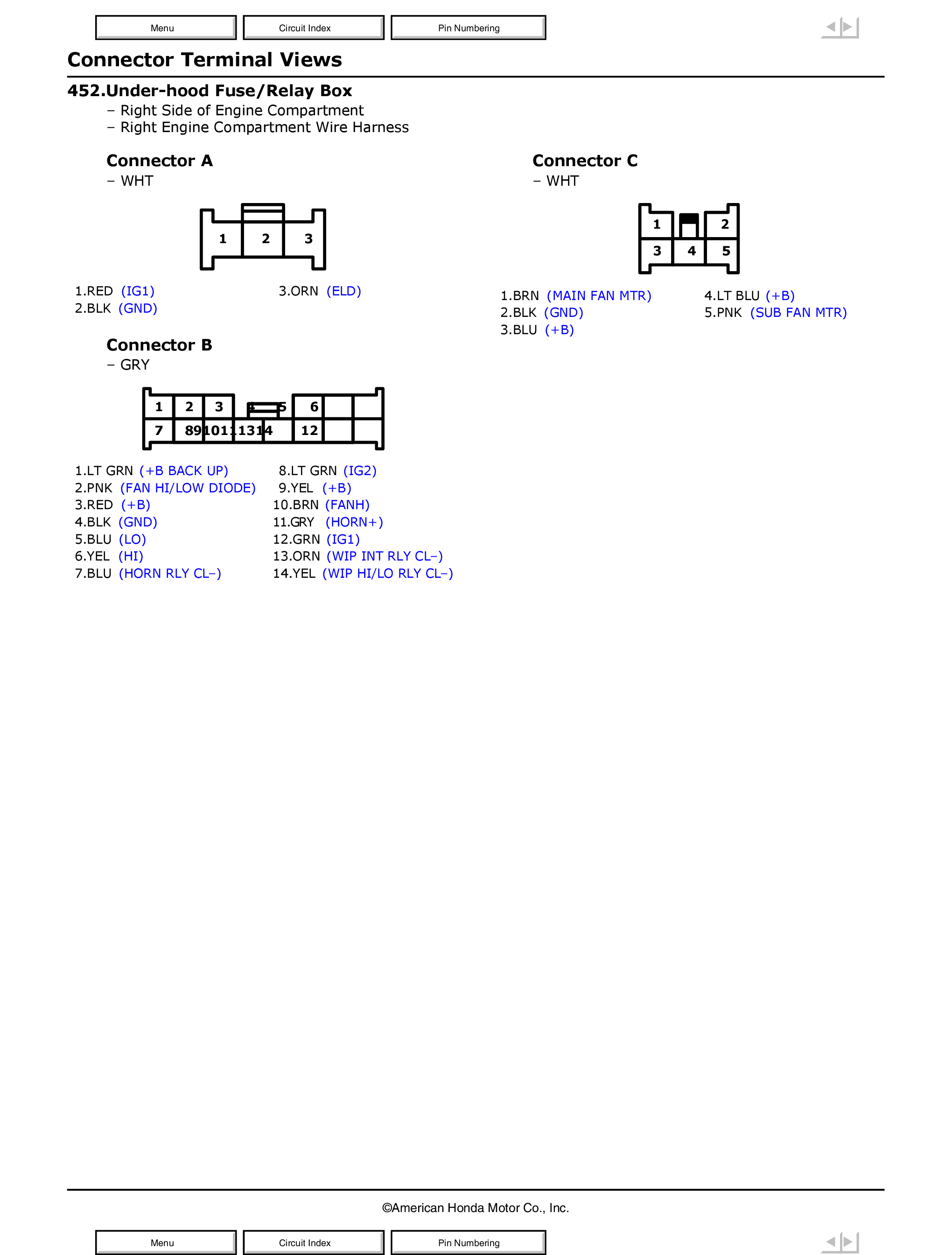

Fig 1: Under-hood Fuse/Relay Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
