Yaw Rate-Acceleration Sensor Connector End View
Yaw Rate-Acceleration Sensor Connector End View

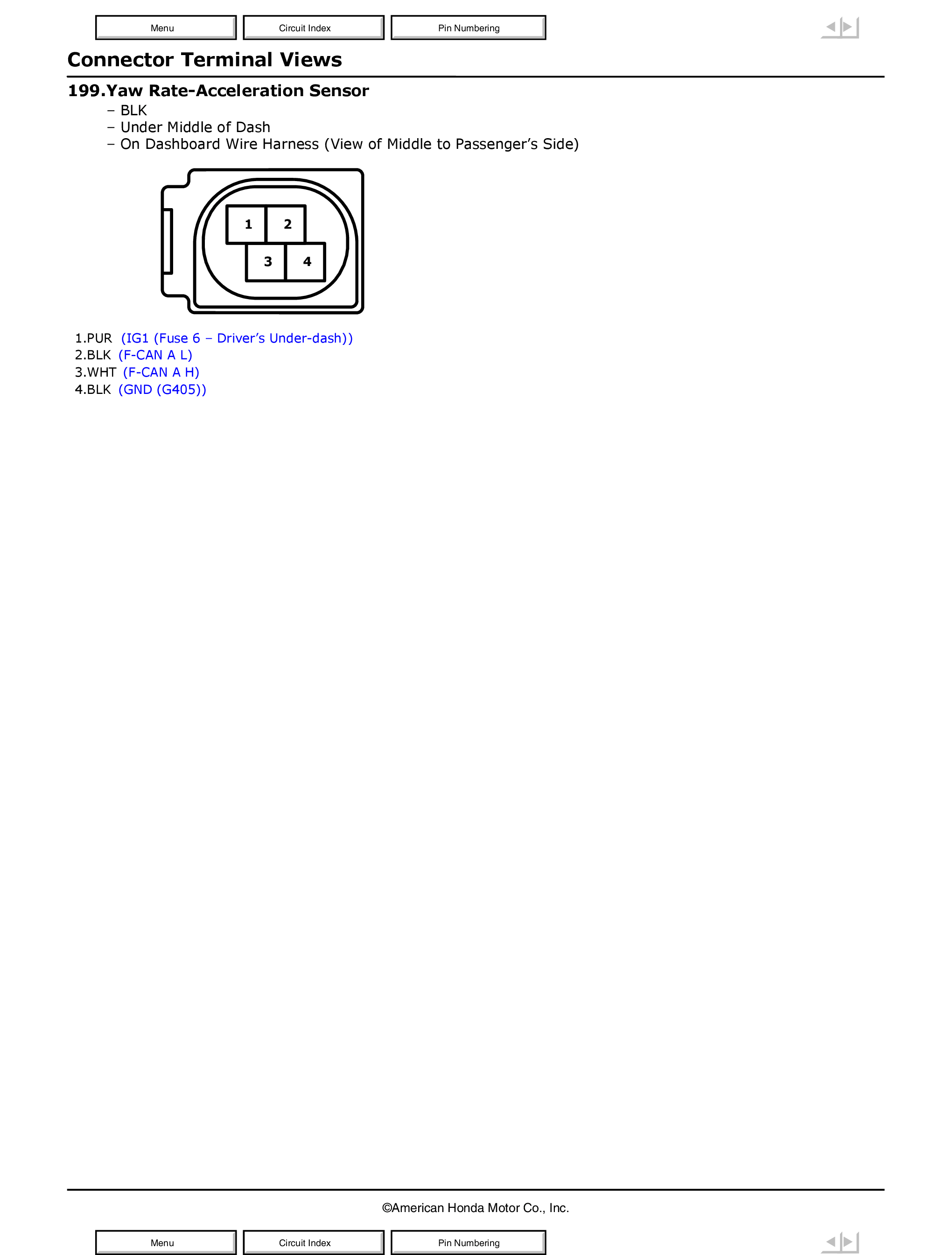

Fig 1: Yaw Rate-Acceleration Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

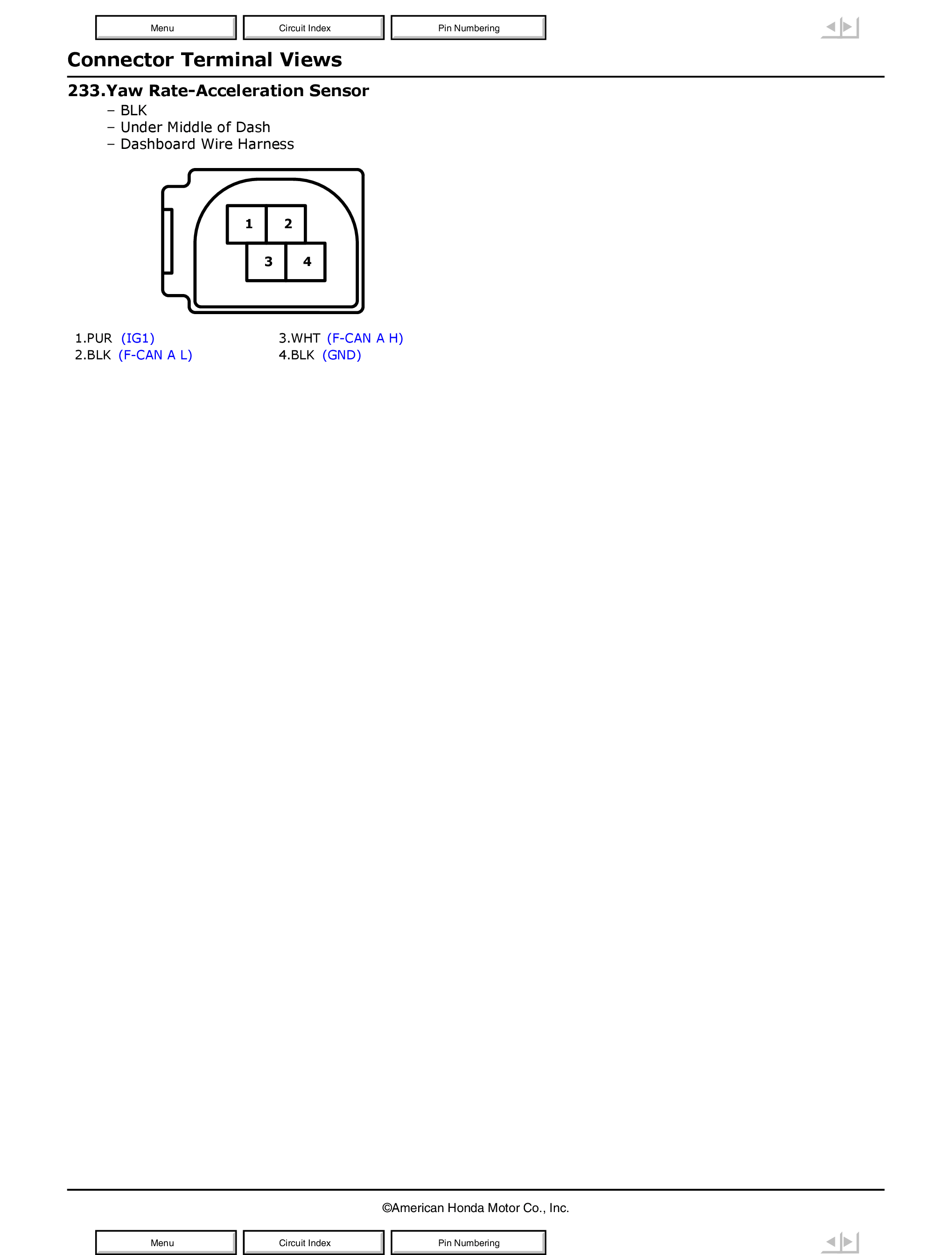

Fig 1: Yaw Rate-Acceleration Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
