A/T Interlock System
›
Circuit Diagram
Circuit Diagram

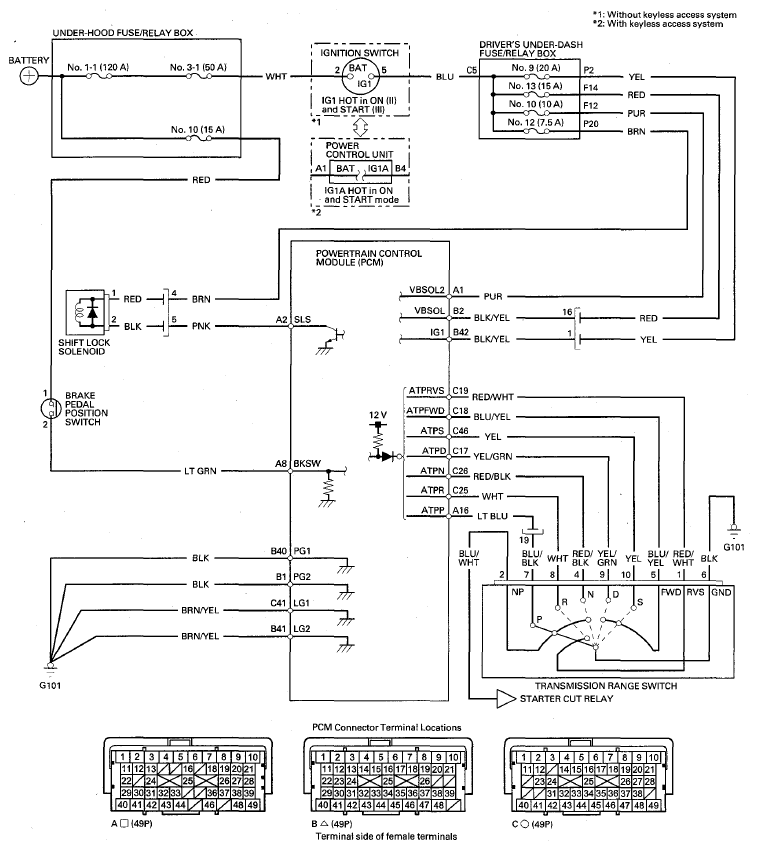

Fig 1: A/T Interlock System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
