Driving Position Memory System (DPMS) Component Location Index (2013-15)

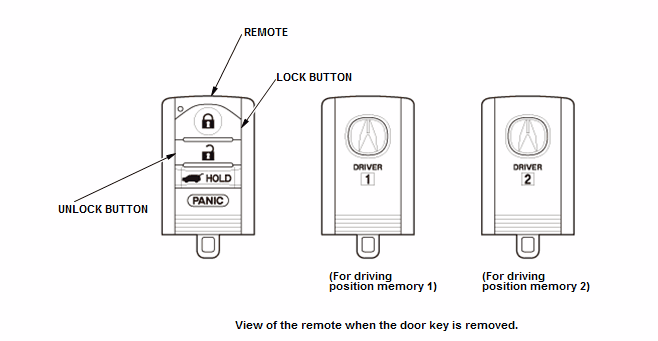

GHH75312

Courtesy of HONDA, U.S.A., INC.

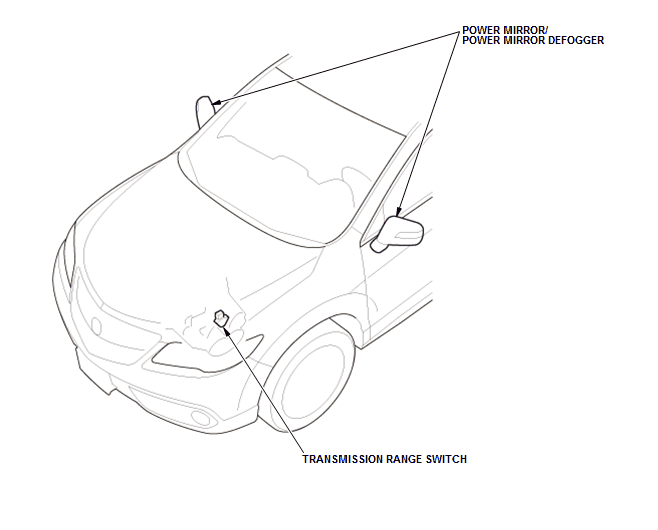

GHH75313

Courtesy of HONDA, U.S.A., INC.

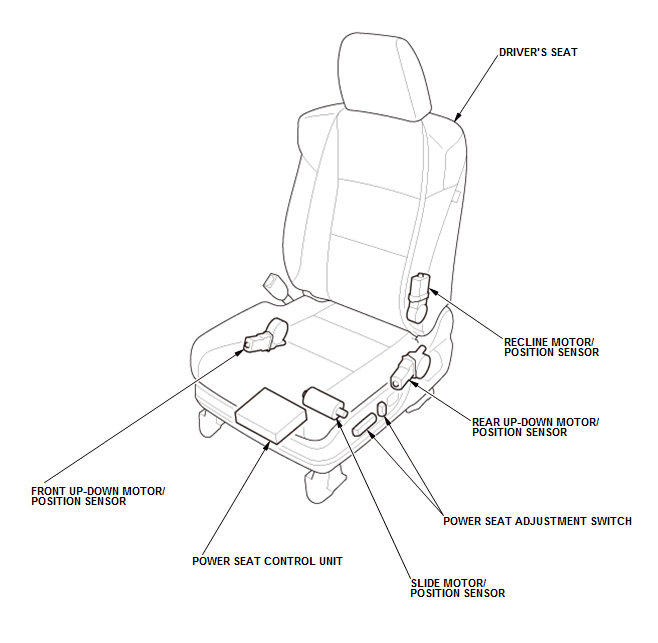

GHH75314

Courtesy of HONDA, U.S.A., INC.

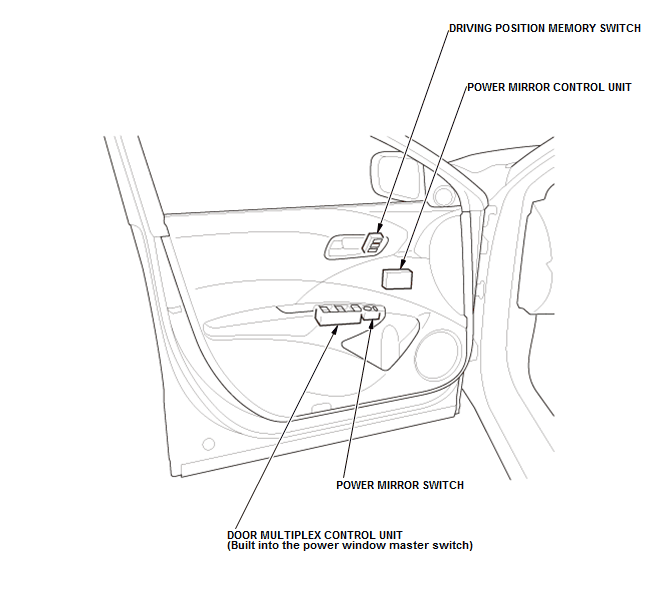

GHH75315

Courtesy of HONDA, U.S.A., INC.
