PGM-FI System Description - Components (2013-15)
PGM-FI System Description - Components (2013-15)

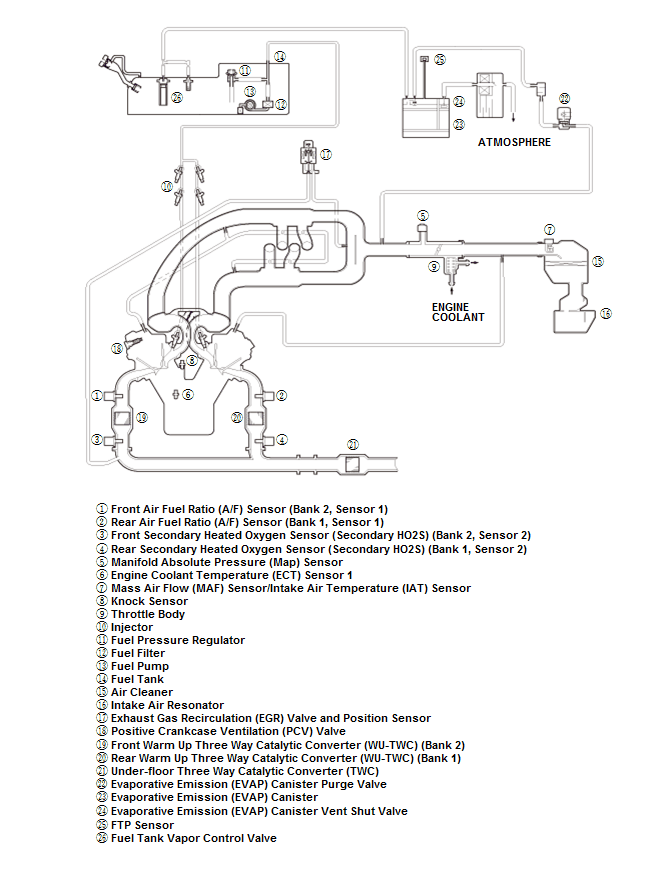

USA and Canada models
Courtesy of HONDA, U.S.A., INC.

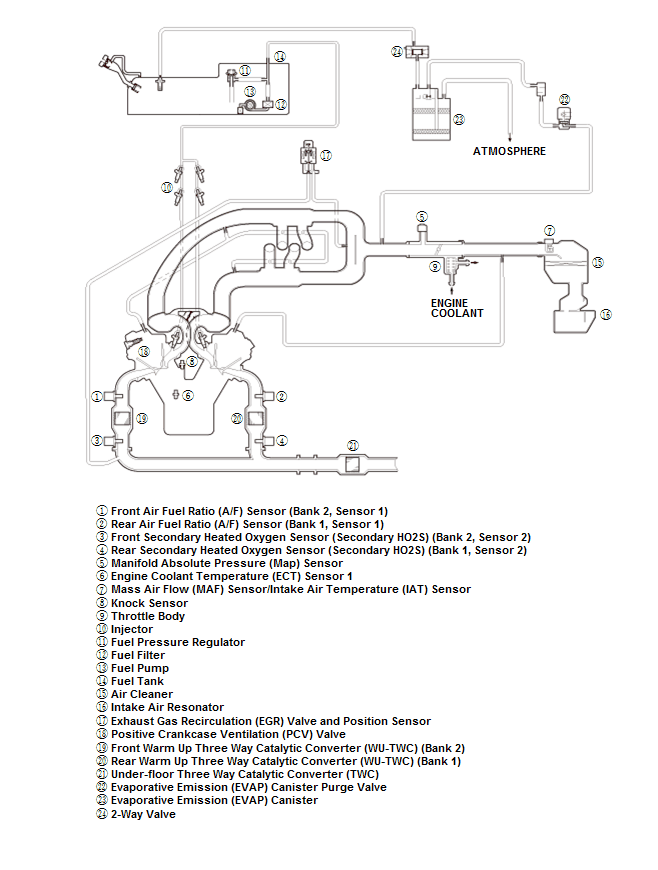

Mexico models
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
