Secondary HO2S Removal And Installation: Removal

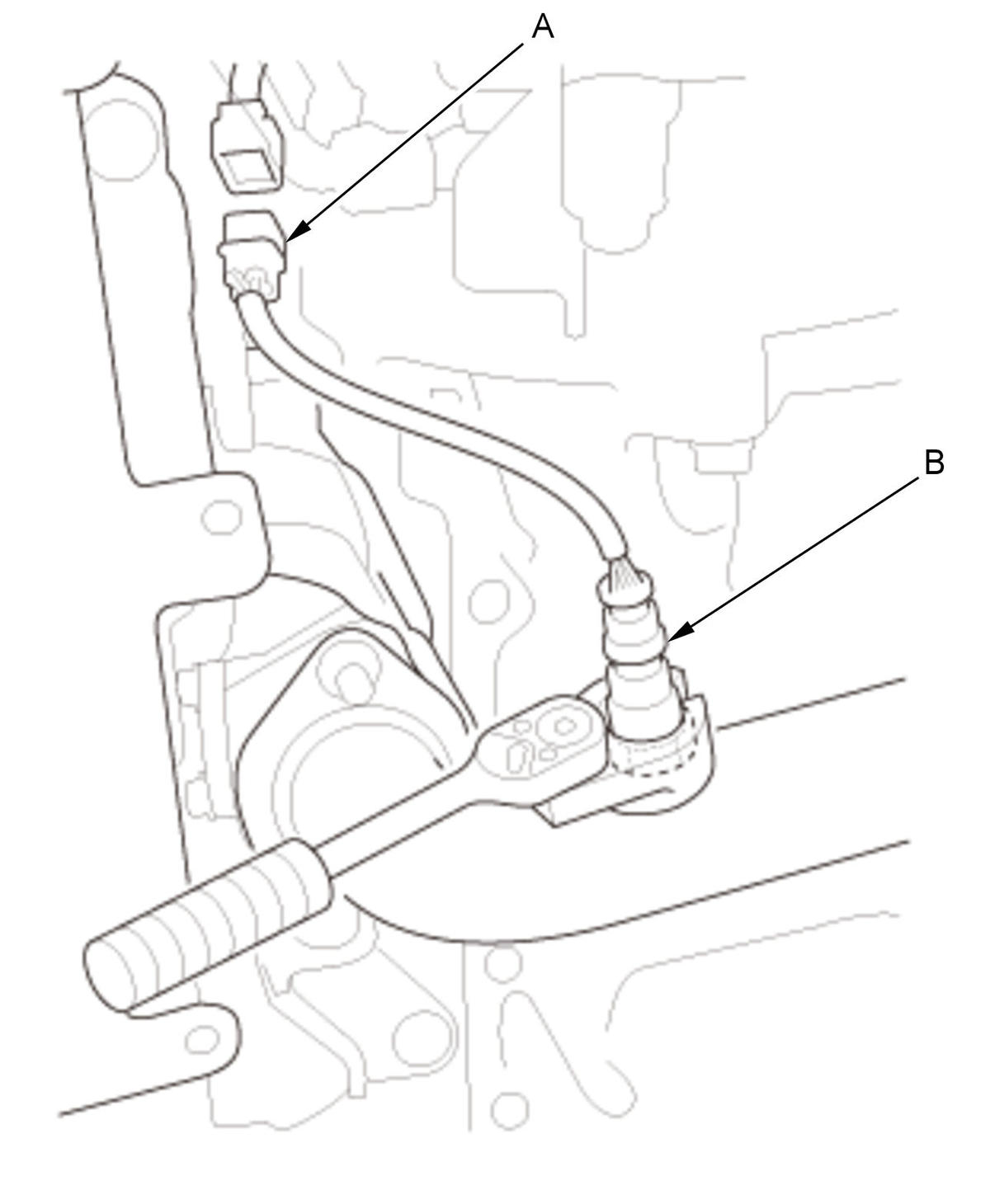

Front Bank (Bank 2)

1. Secondary HO2S - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the front secondary HO2S connector (A). 2. Remove front secondary HO2S (B).

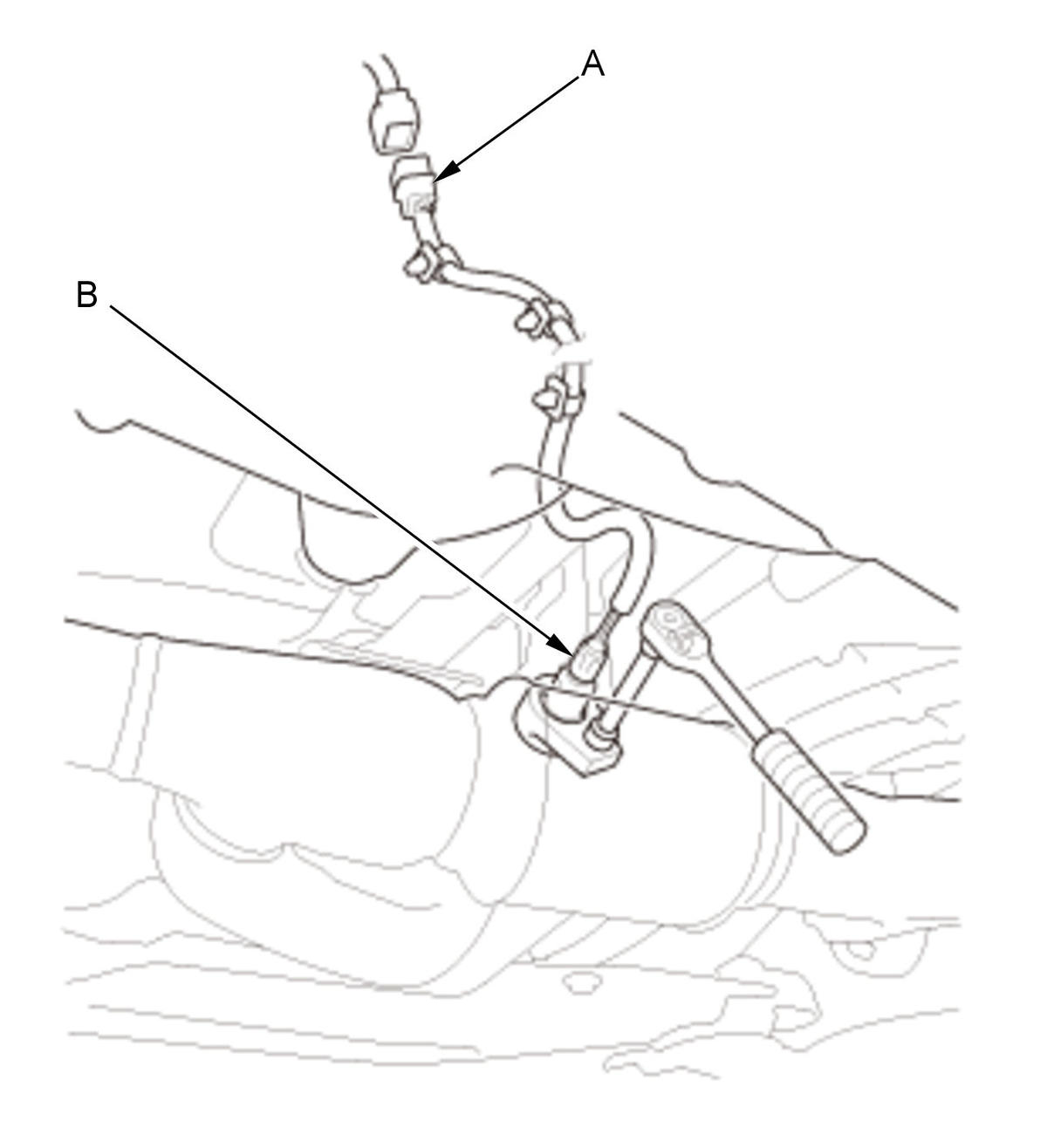

   Rear Bank (Bank 1)

2. Secondary HO2S - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the rear secondary HO2S connector (A). 2. Remove rear secondary HO2S (B).
