Without Navigation

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
Eject all the discs before removing the audio unit to prevent damaging the CD player's load mechanism.
If you are replacing the audio unit, write down the audio presets (if possible), then enter them into the new audio unit.

Make sure you have the anti-theft codes for the audio system.
Remove the dashboard center trim (see DASHBOARD CENTER TRIM REMOVAL/INSTALLATION ).
Remove the dashboard center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION ).

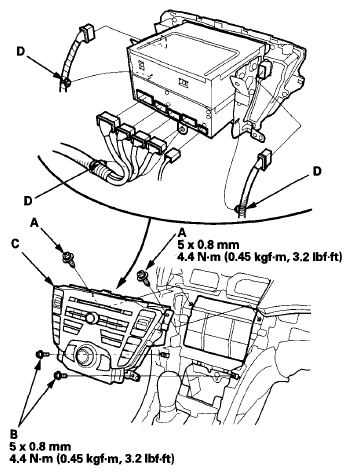

Carefully remove the bolts (A) and (B), then pull the audio unit (C) out.

Fig 1: Bolts And Audio Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors, and detach the clips (D).
Remove the climate control switches (see CLIMATE CONTROL SWITCH REMOVAL/INSTALLATION ).

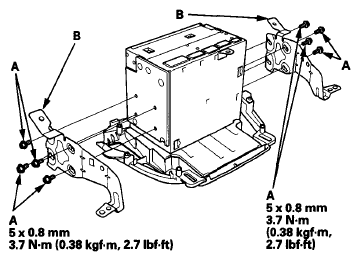

Remove the bolts (A) and stays (B).

Fig 2: Bolts And Stays With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit in the reverse order of removal, and note these items:
- Make sure all the connectors and the antenna lead are secure.
- Enter the anti-theft codes for the audio system.
Give the new anti-theft codes to the client if the audio unit is replaced.
