Circuit Diagram
›
Without Navigation
Without Navigation

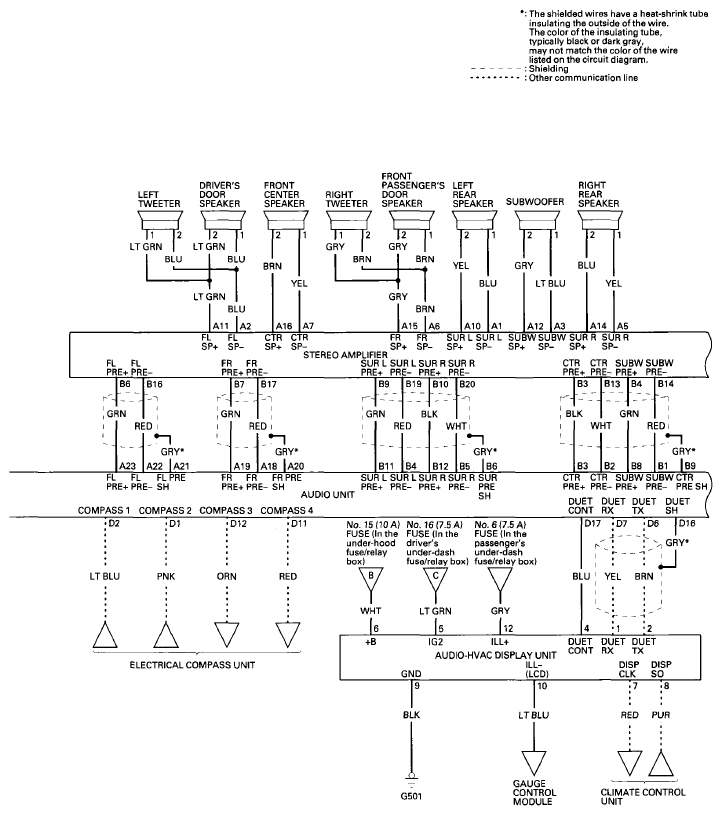

Fig 1: Audio System Circuit Diagram Without Navigation (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

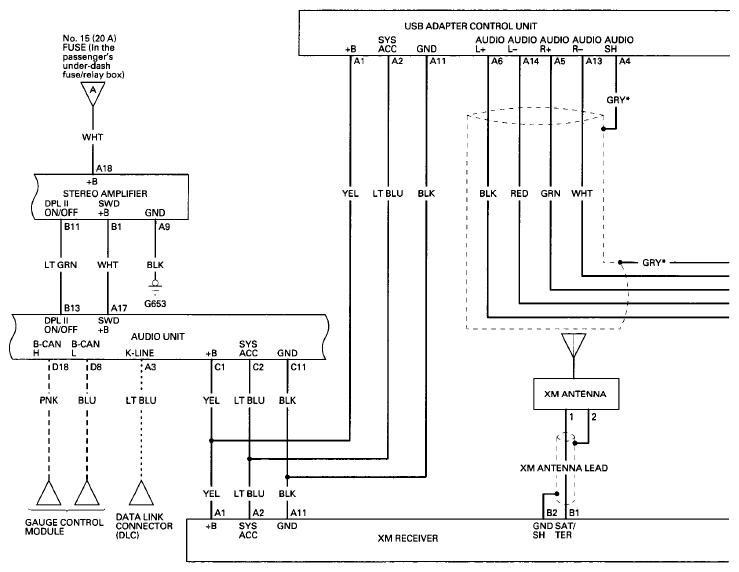

Fig 2: Audio System Circuit Diagram Without Navigation (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

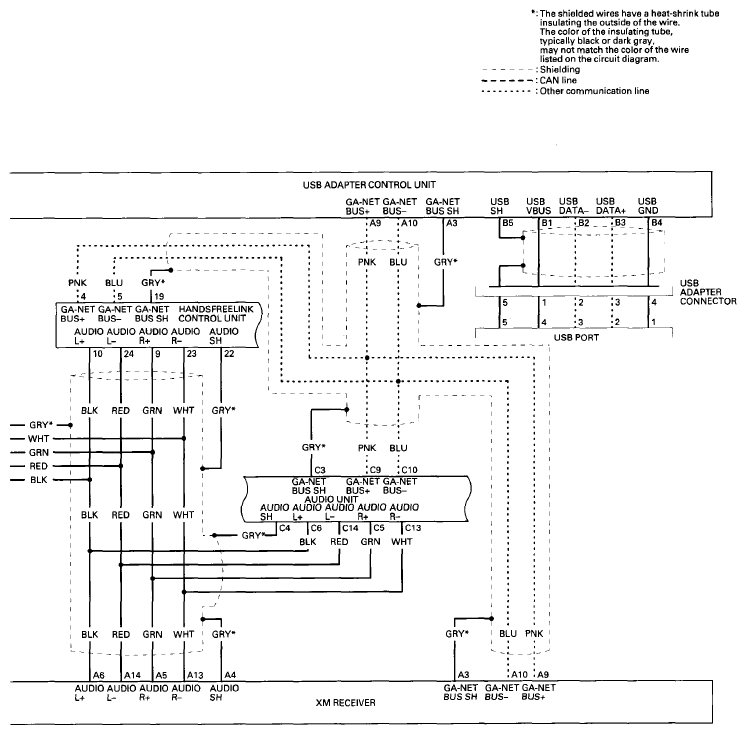

Fig 1: Audio System Circuit Diagram Without Navigation (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

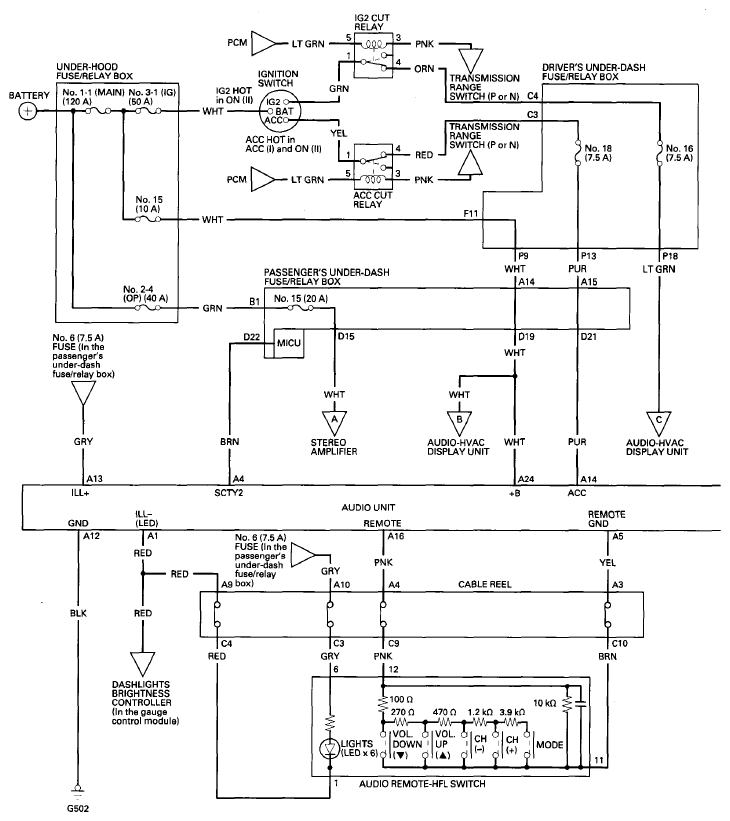

Fig 2: Audio System Circuit Diagram Without Navigation (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

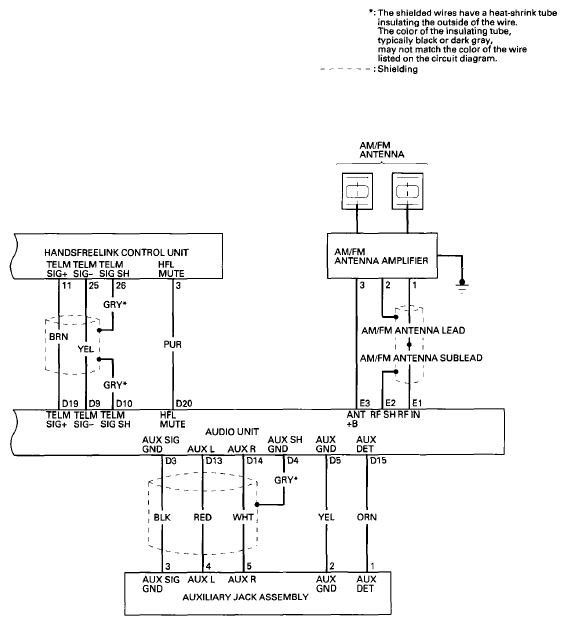

Fig 1: Audio System Circuit Diagram Without Navigation (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
