System Description
›
HDD Navigation System
›
USA models
USA models

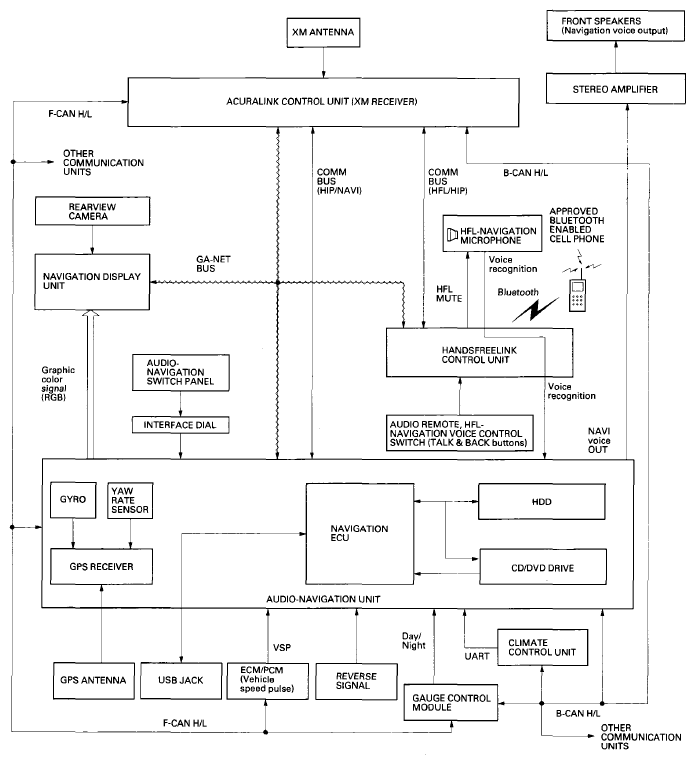

Fig 1: HDD Navigation System Diagram - USA Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
