Symptom Troubleshooting Using Malfunctioning Circuit Functions

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line(s) that should be checked in the table:

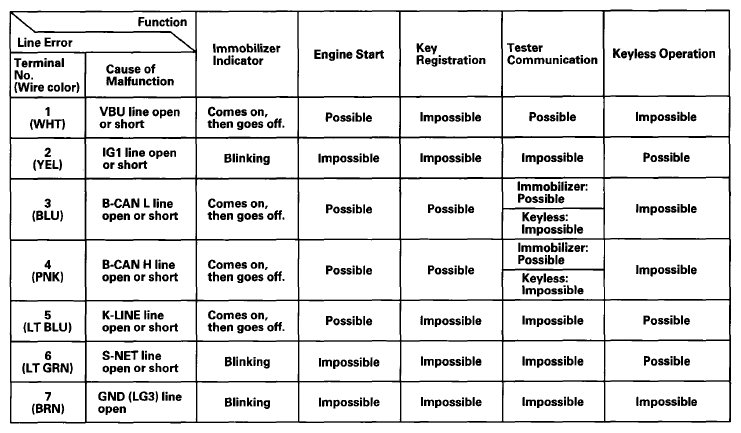

Fig 1: Identifying Malfunctioning Circuit Functions Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
