Front Seat Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Do the ODS unit initialization (see ODS UNIT INITIALIZATION ) after front passenger's seat replacement.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or tear the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Adjust the steering column to the full tilt up position and to the full telescopic in position.
Slide the front seat all the way forward. Carefully pry up on the bottom of the anchor cover (A) at the pry point (B) with the appropriate trim tool to release the hooks (C) and the tab (D), then remove the cover by pulling it upward. The driver's seat is shown; the passenger's seat is similar.

Fig 1: Sliding Front Seat All Way Forward
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lower anchor bolt (A).

Fig 2: Lower Anchor Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the seat track end covers (A) from the back of both seat tracks.

Fig 3: Removing Seat Track End Covers From Back Of Both Seat Tracks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the seat mounting bolts from the rear side of the front seat.

Fig 4: Identifying Seat Mounting Bolts From Rear Side Of Front Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slide the front seat all the way back, and remove the seat mounting bolts.

Fig 5: Sliding Front Seat All Way Back
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before removing the seat.
Lift up the front seat, then detach the harness clip(s) (A). Disconnect the side airbag connector (B) and the seat wire harness connector (C).
Driver's seat (Without seat ventilation)

Fig 6: Identifying Harness Clip, Side Airbag Connector And Seat Wire Harness Connector (Without Seat Ventilation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driver's seat (With seat ventilation)

Fig 7: Identifying Driver's Seat (With Seat Ventilation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

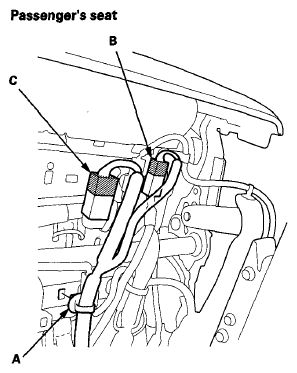

Passenger's seat

Fig 8: Identifying Passenger's Seat Wire Harness And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the head restraint.
With the help of an assistant, carefully remove the front seat through the front door opening.
Install the seat in the reverse order of removal, and note these items:
- Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten (1) and (2), then slide it forward and tighten (3) and (4).
- Tighten the bolts by hand first, then tighten them to the specified torque.
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Check for any DTCs that may have been set during repairs, and clear them.
Driver's seat

Fig 9: Driver's Seat Fasteners Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's seat

Fig 10: Passenger's Seat Fasteners Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
