Accessory Power Sockets
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

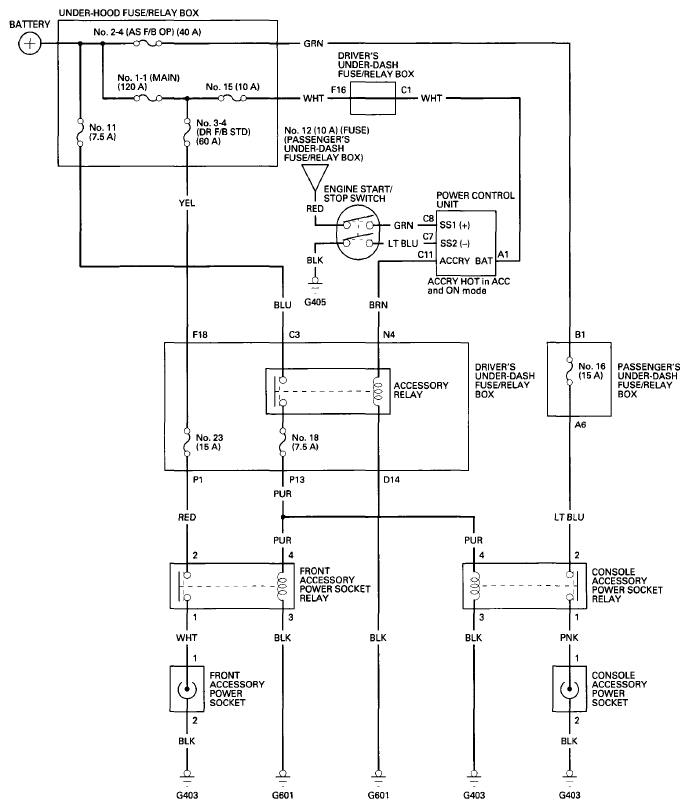

Fig 1: Accessory Power Socket - Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
