VSA Modulator-Control Unit Removal and Installation: Removal

Turn the ignition switch to LOCK (0).
Remove the suction line mount bolt (A) from the bracket.

Fig 1: Receiver Line, Clamp And Suction Line Mount Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the receiver line (B) from the clamp (C).
Disconnect the VSA modulator-control unit 47P connector (A) by pushing the lock (B) and pulling down the lever (C); the connector disconnects itself.

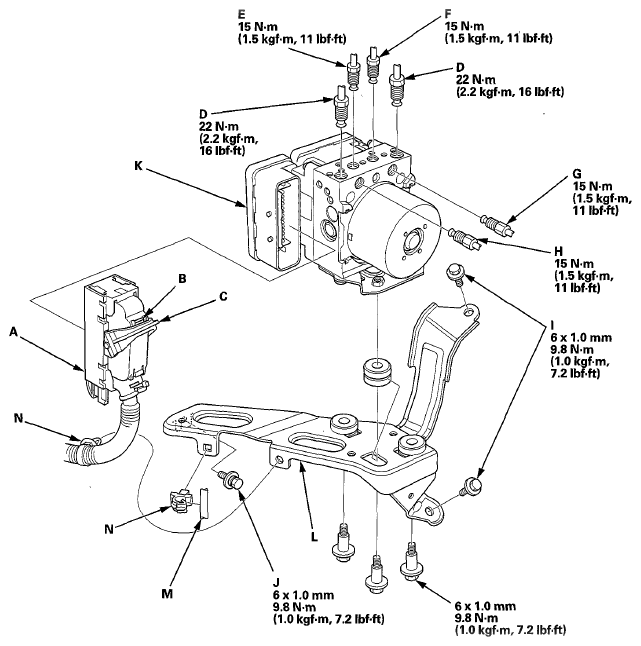

Fig 2: Exploded View Of VSA Modulator-Control Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit.
NOTE: Brake lines are connected to the master cylinder (D) and to the left-front (E), the right-front (F), the left-rear (G), and the right-rear (H) brake systems.
Remove the 6 x 12 mm flange bolts (I) and 6x16 mm flange bolt (J), then remove the VSA modulator-control unit (K) with the bracket (L) from the body.
Remove the receiver line (M) from the bracket, then remove the clips (N).
Remove the VSA modulator-control unit from the bracket.
