Yaw Rate-Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools when replacing the sensor.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. M/T: Remove the shift lever assembly (see SHIFT LEVER HOUSING REPLACEMENT ).
  4. Remove the yaw rate-acceleration sensor (A).

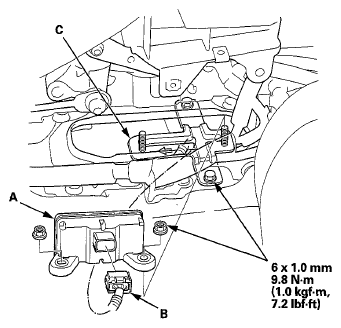

    Fig 1: Yaw Rate-Acceleration Sensor, 4P Connector, Bracket And Mounting Bolts With Torque Specification
    G07769446Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the yaw rate-acceleration sensor 4P connector (B).
  6. Check for deformation in the bracket (C). If necessary replace it.
  7. Install the yaw rate-acceleration sensor in the reverse order of removal.
  8. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
