ECM/PCM Circuit Diagram

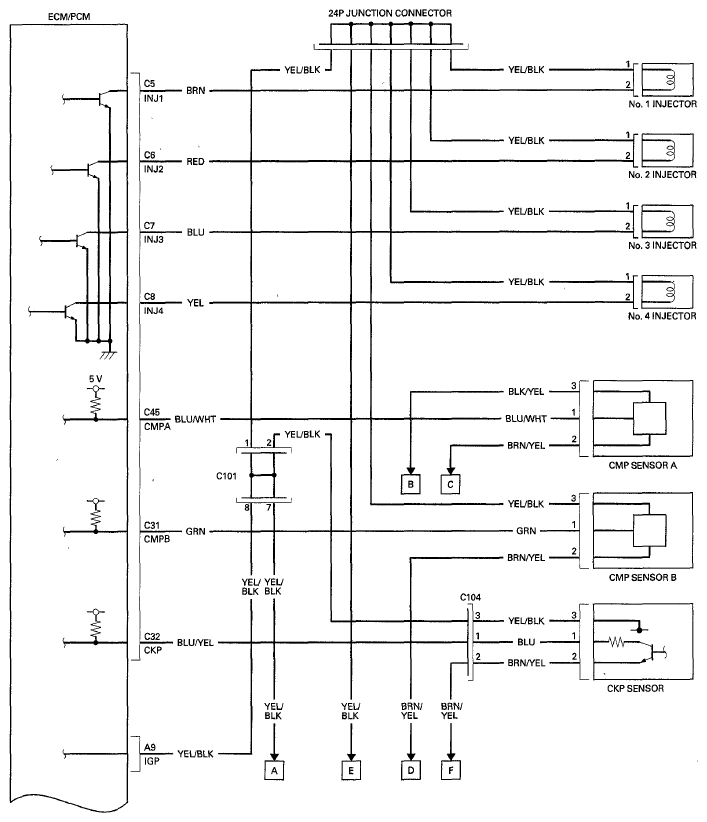

Fig 1: ECM/PCM Circuit Diagram (1 Of 16)

G07767300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

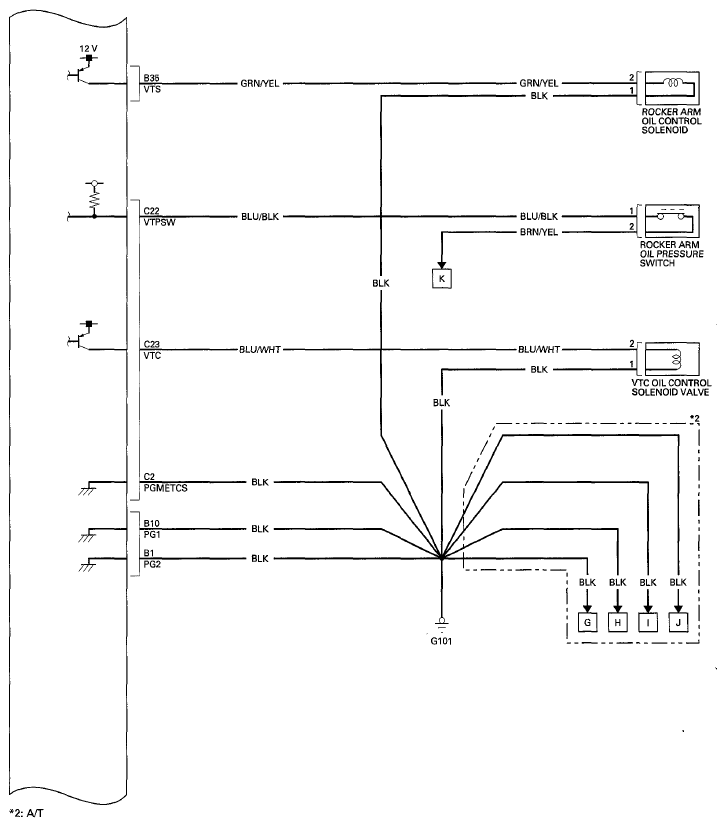

Fig 2: ECM/PCM Circuit Diagram (2 Of 16)

G07767301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

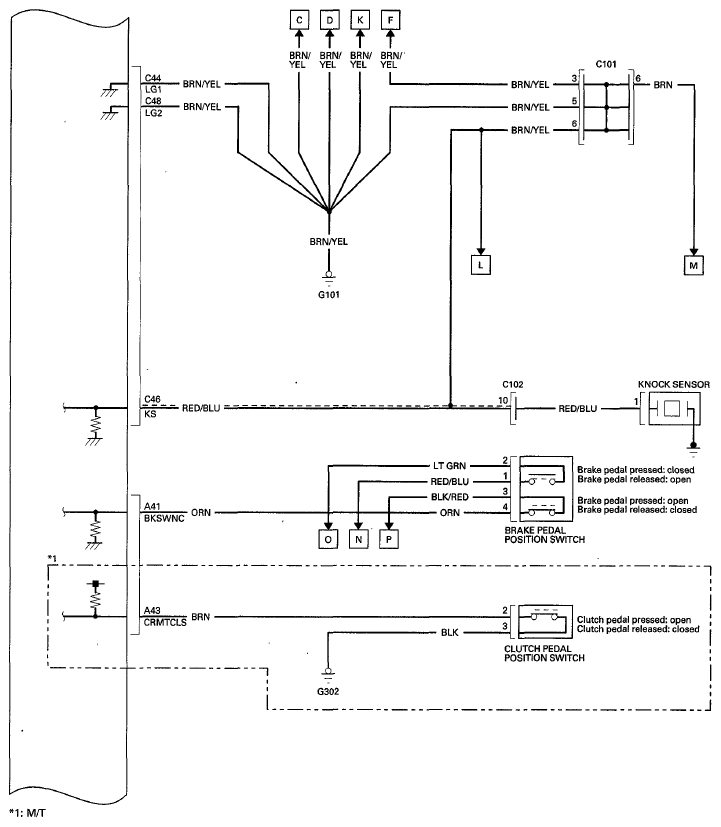

Fig 3: ECM/PCM Circuit Diagram (3 Of 16)

G07767302

Courtesy of AMERICAN HONDA MOTOR CO., INC.

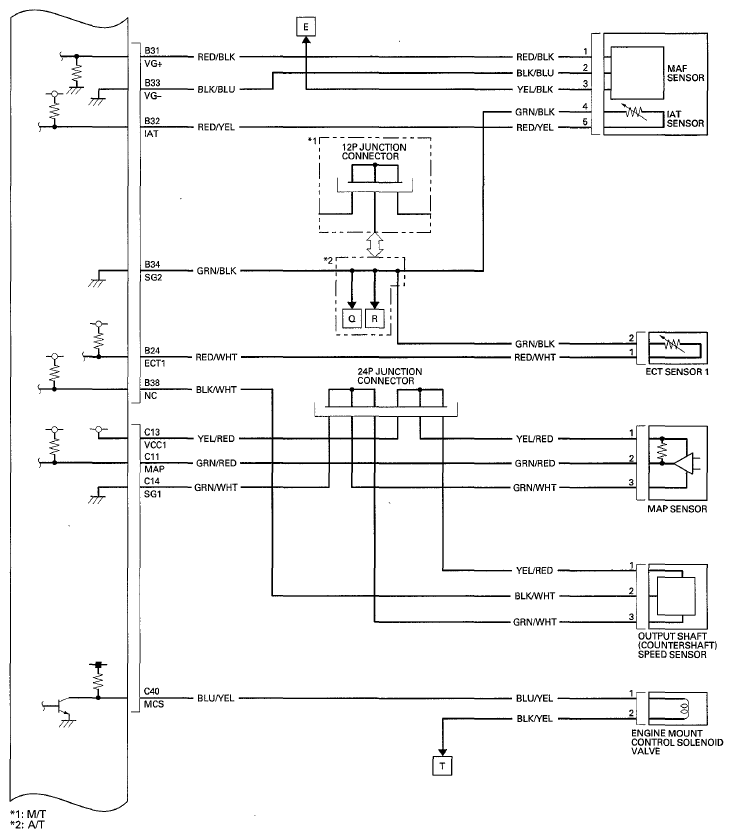

Fig 4: ECM/PCM Circuit Diagram (4 Of 16)

G07767303

Courtesy of AMERICAN HONDA MOTOR CO., INC.

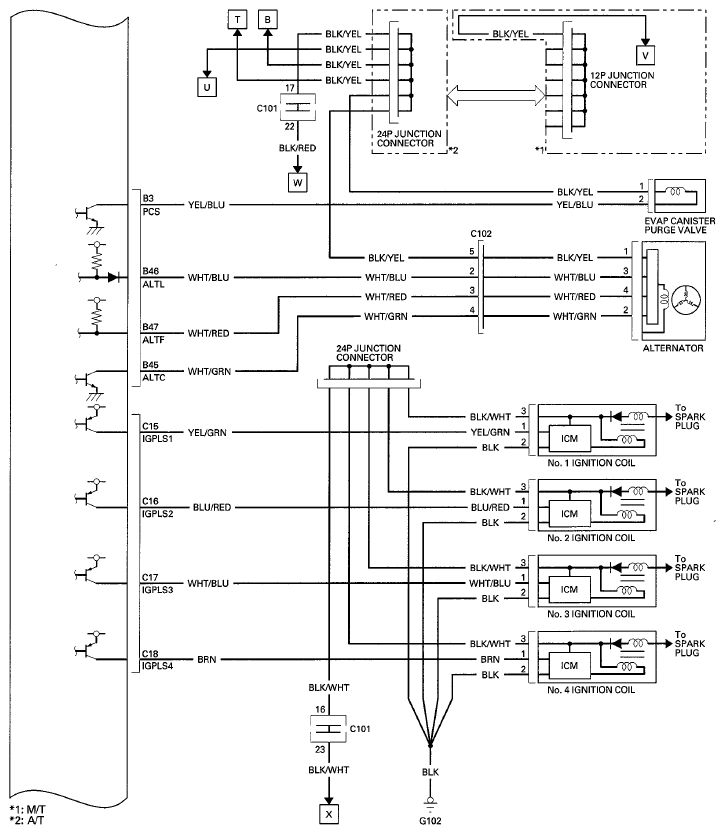

Fig 5: ECM/PCM Circuit Diagram (5 Of 16)

G07767304

Courtesy of AMERICAN HONDA MOTOR CO., INC.

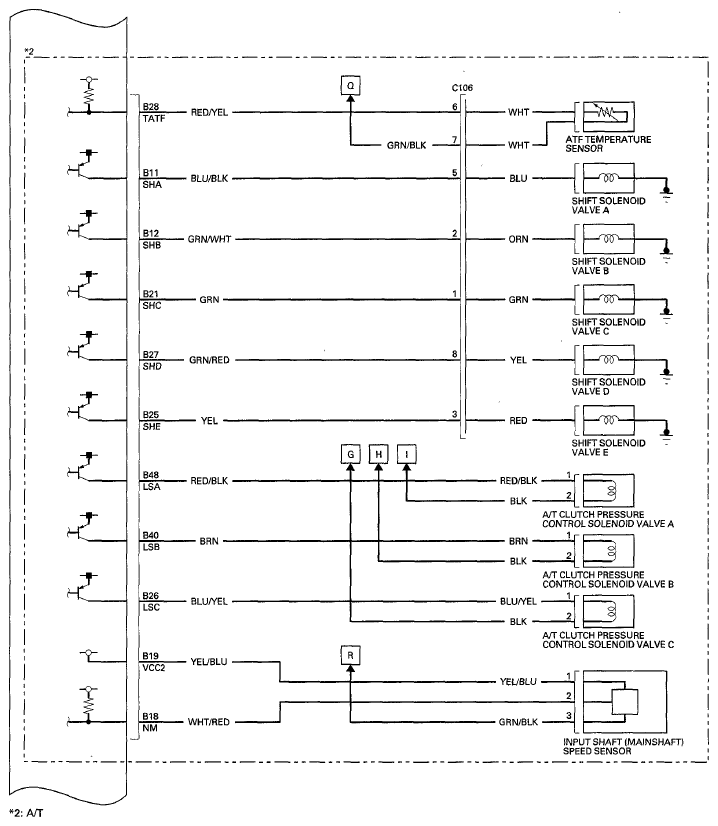

Fig 6: ECM/PCM Circuit Diagram (6 Of 16)

G07767305

Courtesy of AMERICAN HONDA MOTOR CO., INC.

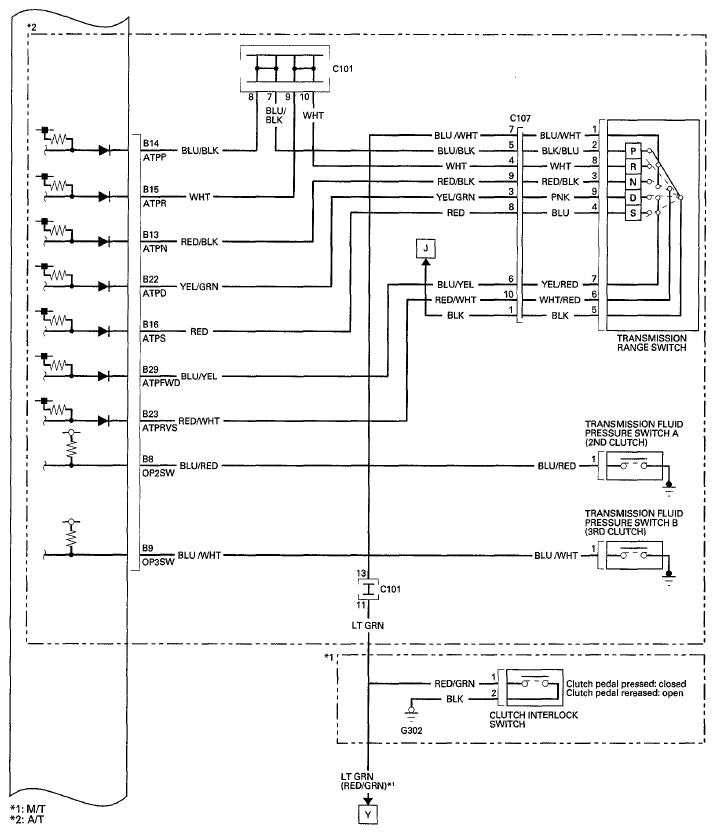

Fig 7: ECM/PCM Circuit Diagram (7 Of 16)

G07767306

Courtesy of AMERICAN HONDA MOTOR CO., INC.

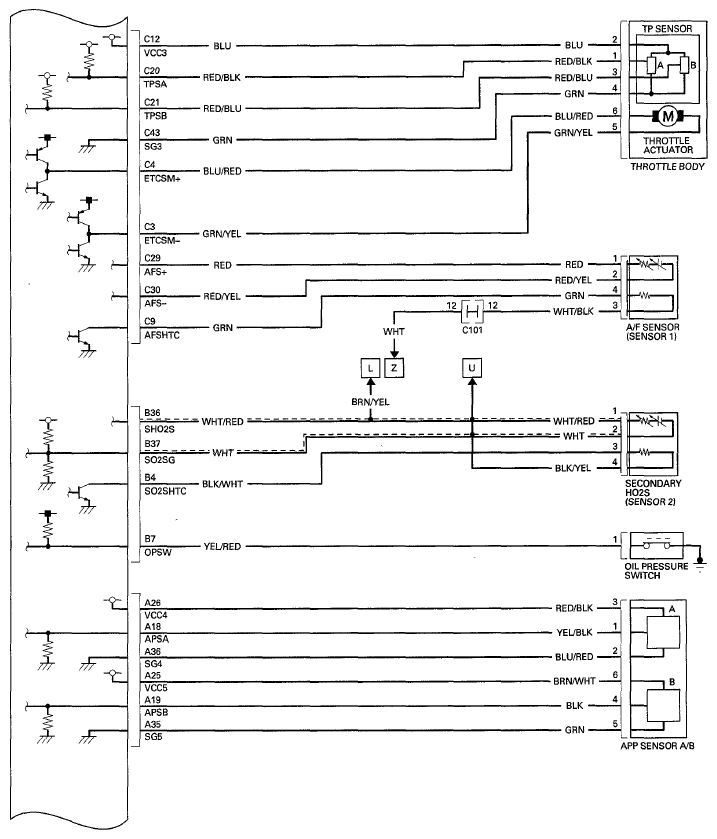

Fig 8: ECM/PCM Circuit Diagram (8 Of 16)

G07767307

Courtesy of AMERICAN HONDA MOTOR CO., INC.

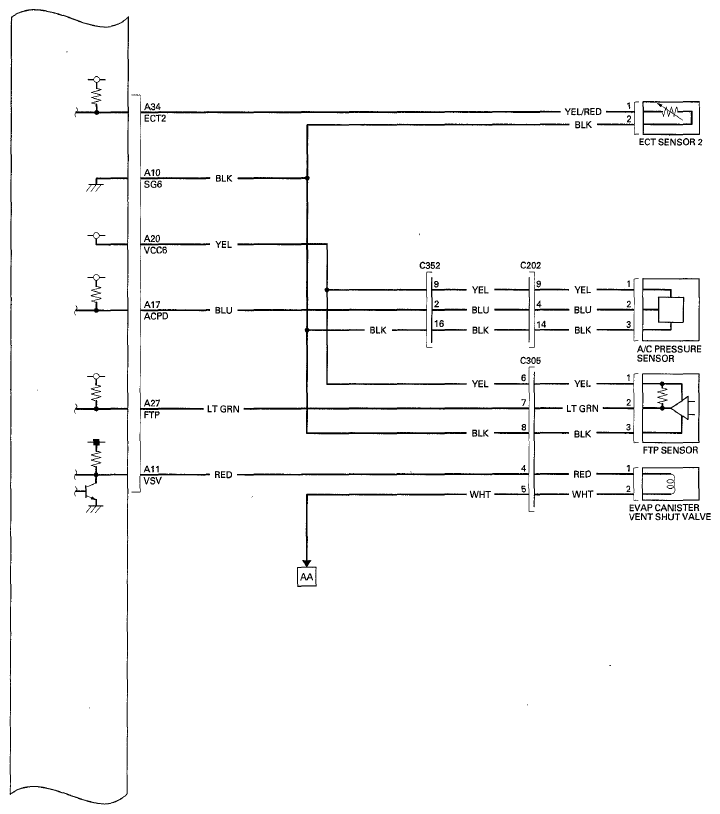

Fig 9: ECM/PCM Circuit Diagram (9 Of 16)

G07767308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

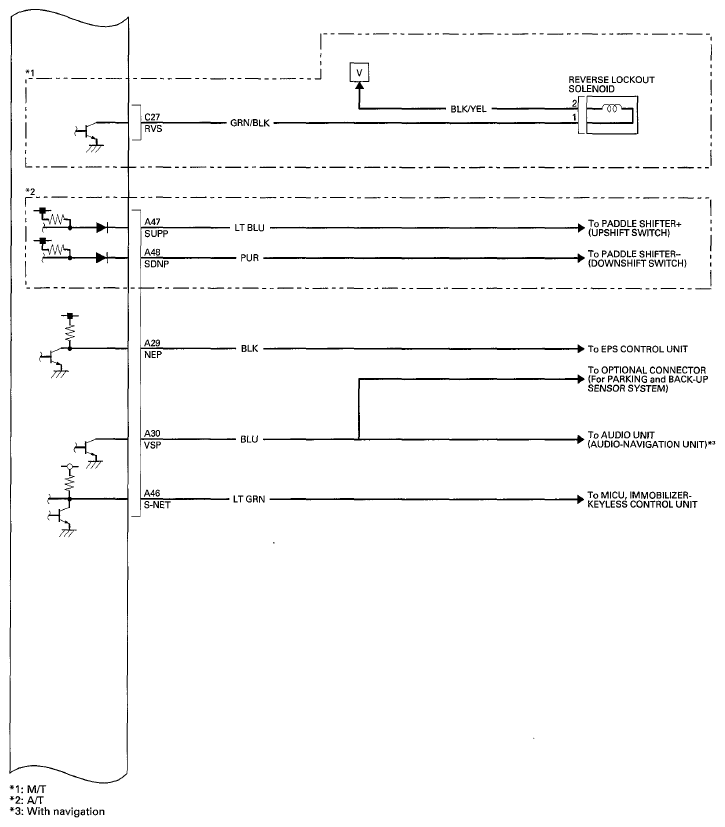

Fig 10: ECM/PCM Circuit Diagram (10 Of 16)

G07767309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

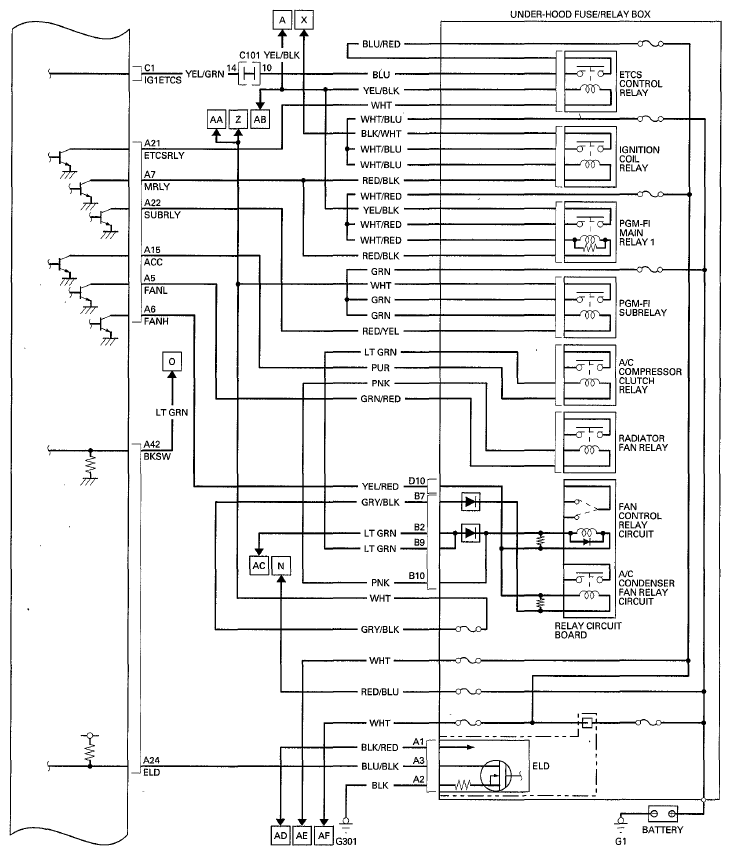

Fig 11: ECM/PCM Circuit Diagram (11 Of 16)

G07767310

Courtesy of AMERICAN HONDA MOTOR CO., INC.

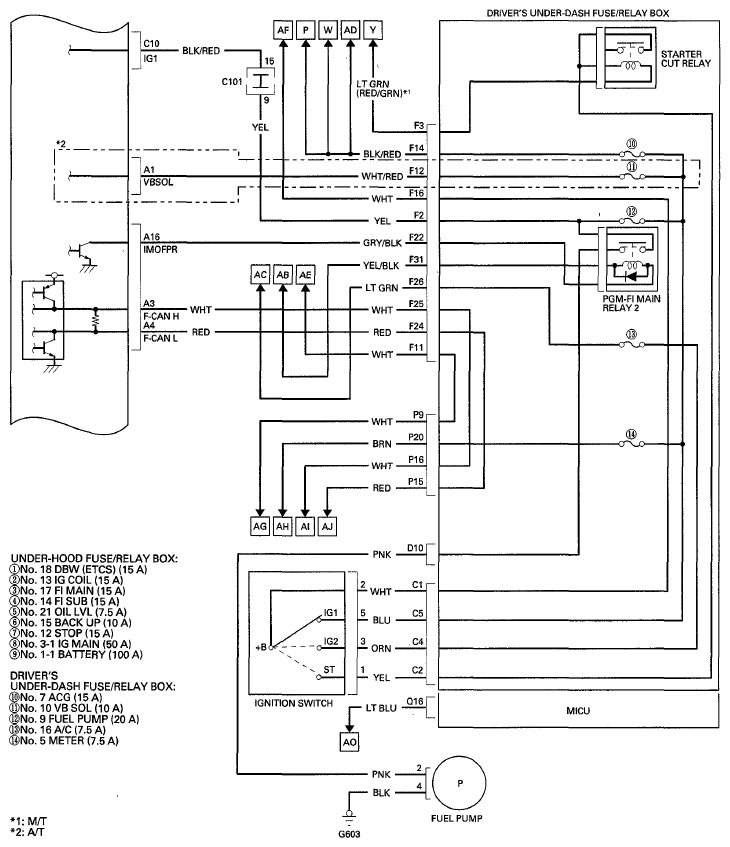

Fig 12: ECM/PCM Circuit Diagram (12 Of 16)

G07767311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

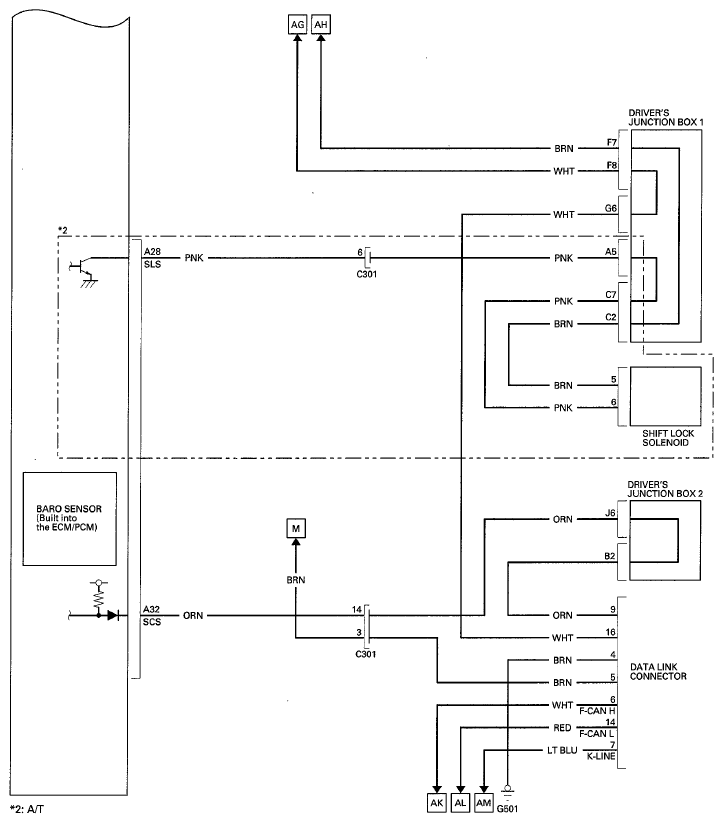

Fig 13: ECM/PCM Circuit Diagram (13 Of 16)

G07767312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

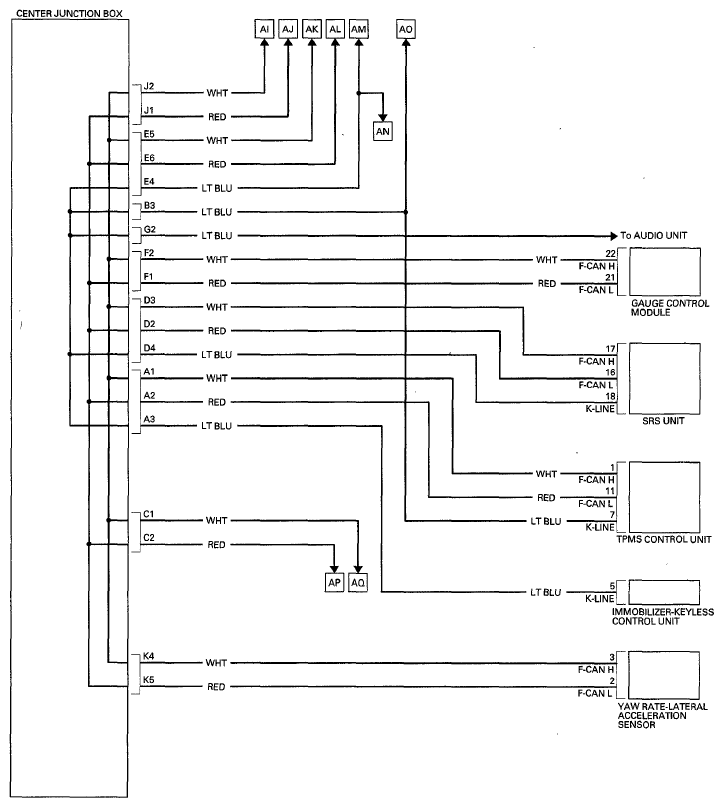

Fig 14: ECM/PCM Circuit Diagram (14 Of 16)

G07767313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

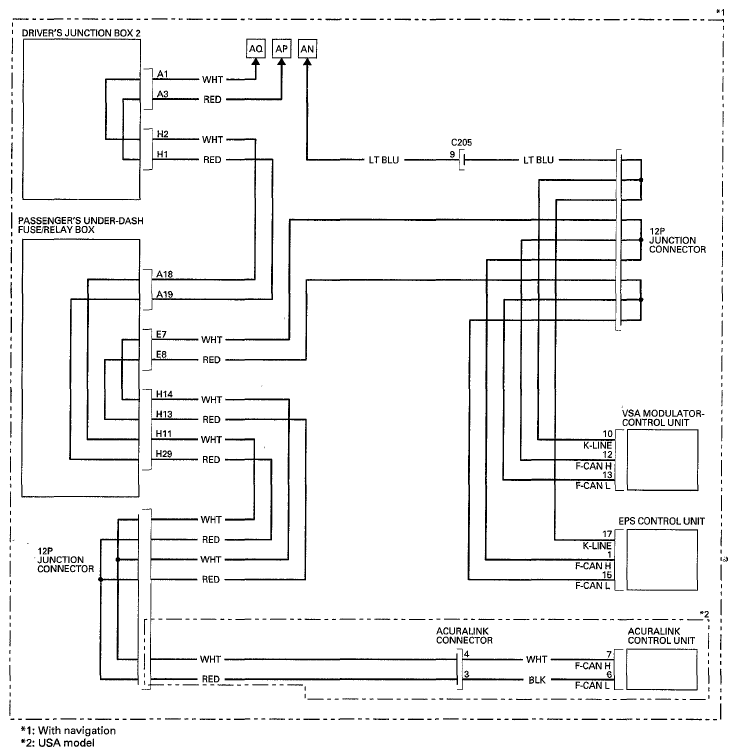

Fig 15: ECM/PCM Circuit Diagram (15 Of 16)

G07767314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

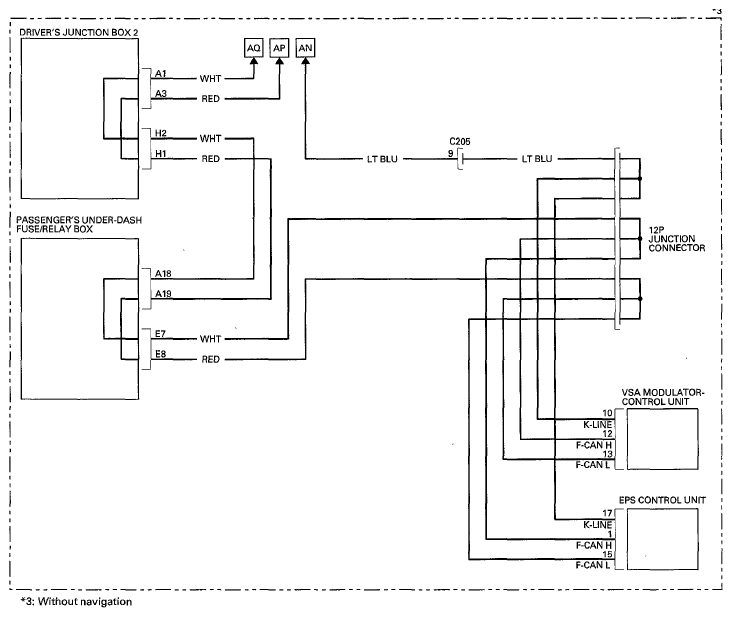

Fig 16: ECM/PCM Circuit Diagram (16 Of 16)

G07767315

Courtesy of AMERICAN HONDA MOTOR CO., INC.
