Intake valve side

The VTEC system changes the cam profile to correspond to engine speed. It maximizes torque at low engine speed and output at high engine speed.
The low lift cam is used at low engine speeds, and the high lift cam is used at high engine speeds.
The rocker arm oil control solenoid switches the intake valve side of the VTEC system on and off; the solenoid is controlled by the ECM/PCM.
The rocker arm oil pressure switch detects VTEC system oil pressure and sends this information to the ECM/PCM.

ENGINE SPEED SPECIFICATION CHART

ENGINE SPEED	ROCKER ARM OIL CONTROL SOLENOID	ROCKER ARM OIL PRESSURE SWITCH	INTAKE VALVE LIFT
LOW	OFF	ON	LOW
HIGH	ON	OFF	HIGH

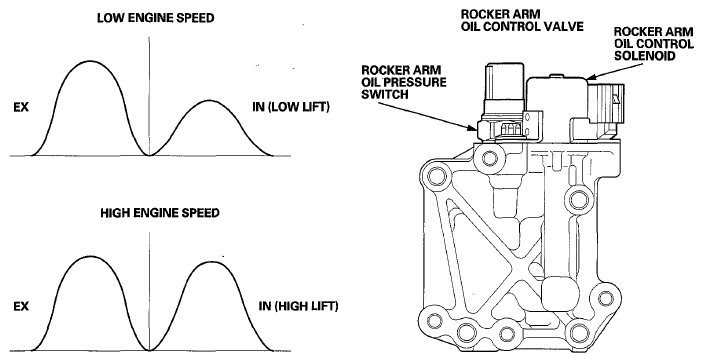

Fig 1: Identifying Rocker Arm Oil Control Valve, Rocker Arm Oil Pressure Switch And Rocker Arm Oil Control Solenoid

Courtesy of AMERICAN HONDA MOTOR CO., INC.
