Intake Air Resonator Removal/Installation

Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

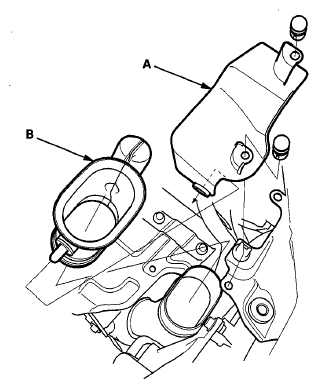

Remove the air intake cover (A), the intake air ducts (B).

Fig 1: Identifying Air Intake Cover And Intake Air Ducts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION - SEDAN ).
Remove the left front wheel.
Remove the clips (A), then remove the inner fender (B).

Fig 2: Identifying Inner Fender And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

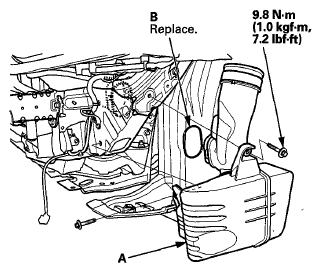

Remove the intake air resonator (A).
NOTE: When installing the resonator, use a new seal ring (B).

Fig 3: Intake Air Resonator, ECM/PCM Connectors And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

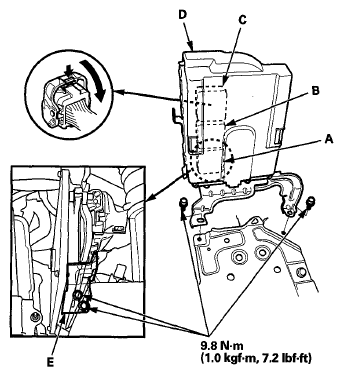

Disconnect ECM/PCM connectors A, B, and C, then remove the ECM/PCM (D).
NOTE:
- ECM/PCM connectors A, B, and C have symbols (A=□, B=Δ, C=◦) embossed on them for identification.
- Canada model: When disconnecting the ECM/PCM connectors, remove the ECM/PCM sub bracket (E).
Fig 4: Disconnecting ECM/PCM Connectors With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

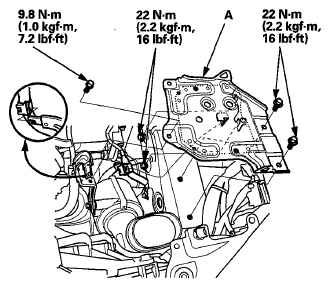

Remove the battery base (A).

Fig 5: Battery Base And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

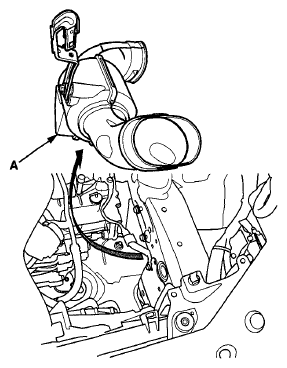

Remove the intake air duct (A).

Fig 6: Removing Intake Air Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
