CMP Sensor B Replacement

Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly.

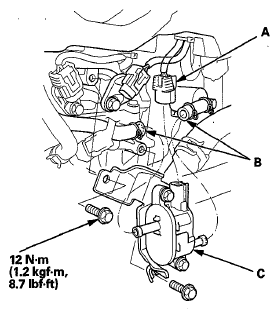

Fig 1: Connector, Hoses, EVAP Canister Purge Valve And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor B connector (A).

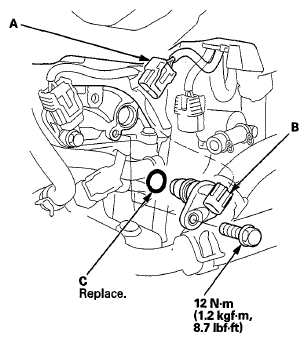

Fig 2: CMP Sensor B, Connector, O-Ring And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove CMP sensor B.
Install the parts in the reverse order of removal with a new O-ring (C).
