Ignition Switch Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Remove the steering column covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the ignition switch (B).

Fig 1: Identifying 5P Connector From Ignition Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

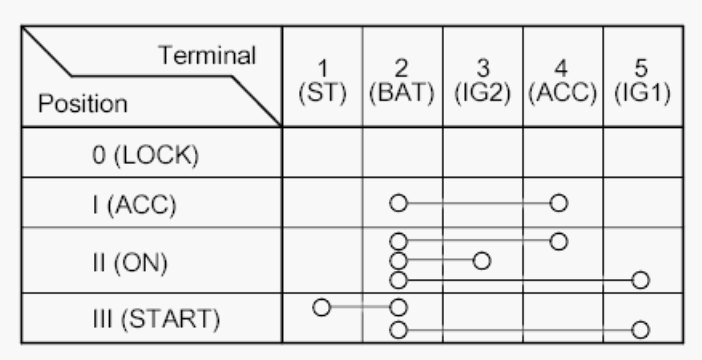

Check for continuity between the terminals in each switch position according to the table.

Fig 2: Checking Continuity Between Terminals In Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the ignition switch (see IGNITION SWITCH TEST ).
Do the battery terminal reconnection procedure (see RECONNECTION ).
