OEM Connector End Views
›
Connector End Views
›
Climate Control Unit (View 297)
Climate Control Unit (View 297)
GRY
Behind Climate Control Unit
On Audio Wire Harness
Connector A

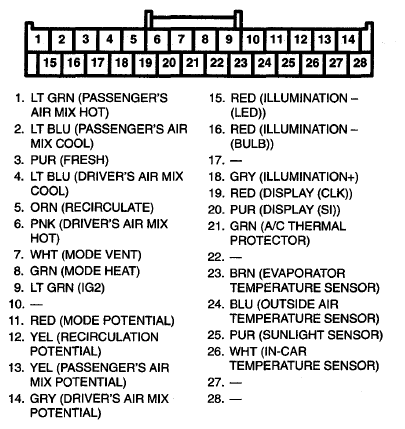

Fig 1: Climate Control Unit Connector A Terminals (View 297)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
Fig 2: Climate Control Unit Connector B Terminals (View 297)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
