Gauge Control Module (View 287)
Gauge Control Module (View 287)
GRY
Left Side of Dash
On Dashboard Wire Harness

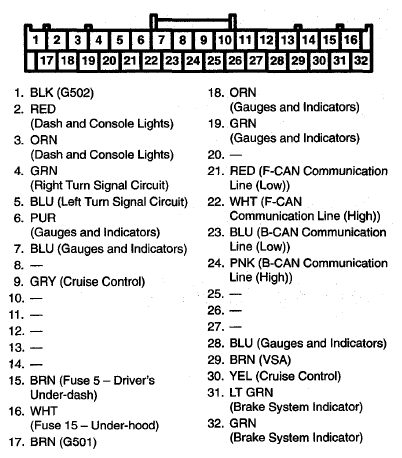

Fig 1: Gauge Control Module Connector Terminals (View 287)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
