Fuse-to-Components Index

Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
1 BATTERY 120A POWER DISTRIBUTION Alternator, ELD Unit, Fuses 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 and 20 and Multi-fuse 3 in Under-hood Fuse/Relay Box
AS FUSE BOX 40A POWER DISTRIBUTION Fuses 7, 8, 9, 10, 11, 12, 13, 20 and 21 in Passenger's Under-dash Fuse/Relay Box
2 EPS 70A POWER DISTRIBUTION EPS Control Unit
ABS/VSA 30A POWER DISTRIBUTION VSA Modulator-Control Unit
ABS/VSA MOTOR 30A POWER DISTRIBUTION VSA Modulator-Control Unit
AS FUSE BOX (40A) POWER DISTRIBUTION Fuses 14, 15, 16, 17, 18, 19 and 22 in Passenger's Under-dash Fuse/Relay Box
- - POWER DISTRIBUTION Not Used
- - POWER DISTRIBUTION Not Used
3 SUB FAN MOTOR 30A POWER DISTRIBUTION A/C Condenser Fan Relay
WIPER MOTOR 30A POWER DISTRIBUTION Windshield Wiper Relay
MAIN FAN MOTOR 30A POWER DISTRIBUTION Radiator Fan Relay
DR LIGHT MAIN 30A POWER DISTRIBUTION Fuses 26, 27, 28, 29 and 30 in Driver's Under-dash Fuse/Relay Box
DR FUSE BOX 60A POWER DISTRIBUTION Fuses 14, 19, 20, 21, 22, 23, 24 and 25 in Driver's Under-dash Fuse/Relay Box
AS LIGHT MAIN 30A POWER DISTRIBUTION Fuses 1, 2, 3, 4 and 5 in Passenger's Under-dash Fuse/Relay Box
- - POWER DISTRIBUTION Not Used
IG MAIN 50A POWER DISTRIBUTION Fuse 31 in Driver's Under-dash Fuse/Relay Box, Ignition Switch
4 RR DEFROSTER 40A POWER DISTRIBUTION Rear Window Defogger Relay
5 - - POWER DISTRIBUTION Not Used
6 - - POWER DISTRIBUTION Not Used
7 - - POWER DISTRIBUTION Not Used
8 HEATER MOTOR 40A POWER DISTRIBUTION Blower Motor Relay
9 HAZARD 15A 10 Driver's MICU, Hazard Warning Switch
10 HORN 10A 10 Horn Relay

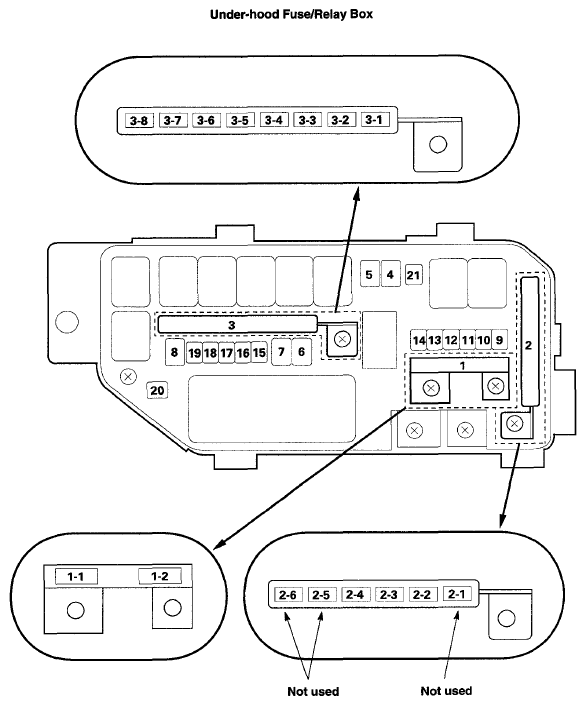

Fig 1: Under-Hood Fuse/Relay Box (6-13)
G07749353Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
11 - - 10 Not Used
12 STOP 15A 10 Brake Pedal Position Switch
13 IG COIL 15A 10 Ignition Coil Relay
14 FI SUB 15A 10 PCM, PGM-FI Sub-relay
15 BACK UP 10A POWER DISTRIBUTION , POWER DISTRIBUTION AcuraLink Control Unit (XM Receiver) (AcuraLink), AcuraLink Reprogramming Connector (AcuraLink), Audio Unit (without Navigation), Audio-Navigation Unit (Navigation), Audio/Navigation Switch Panel (Navigation), Audio-HVAC Display Unit (without Navigation), DLC, Driver's Door Courtesy Light, Driver's MICU, Front HFL-Navigation-ANC/Active Sound Control Microphone, Front Passenger's Door Courtesy Light, Gauge Control Module, HandsFreeLink Control Unit, Immobilizer-Keyless Control Unit, Navigation Display Unit (Navigation), Passenger's MICU, Power Seat Control Unit, Power Window Master Switch
16 INTR LT 7.5A POWER DISTRIBUTION Ceiling Light, Driver's Footwell Light, Driver's Vanity Mirror Light, Front Individual Map Lights, Front Passenger's Footwell Light, Front Passenger's Vanity Mirror Light, HomeLink® Unit, Ignition Key Switch/Key Light, Left Rear Door Courtesy Light, Right Rear Door Courtesy Light, Trunk Light
17 FI MAIN 15A POWER DISTRIBUTION PGM-FI Main Relay
18 DBW 15A POWER DISTRIBUTION ETCS Control Relay
19 - - POWER DISTRIBUTION Not Used
20 MG CLUTCH 7.5A POWER DISTRIBUTION A/C Compressor Clutch Relay
21 FAN RLY 7.5A 10 A/C Diode B, Radiator Fan Relay

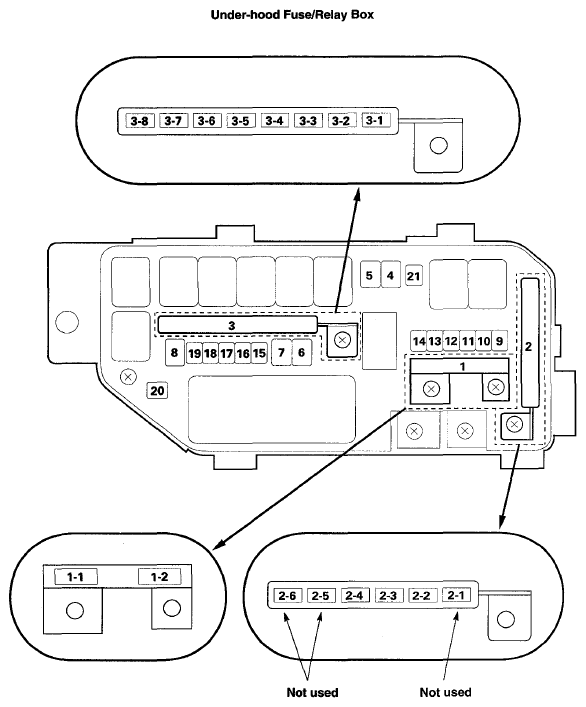

Fig 1: Under-Hood Fuse/Relay Box (6-15)
G07749354Courtesy of AMERICAN HONDA MOTOR CO., INC.
