Electronic Throttle Control System (V6)
›
Component Location Index
Component Location Index

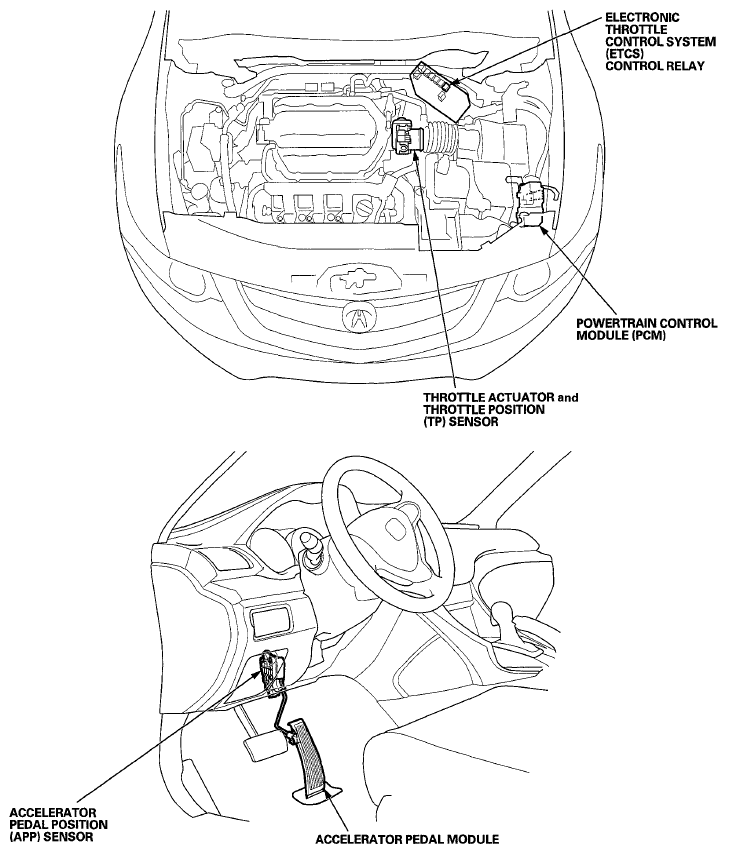

Fig 1: Identifying Electronic Throttle Control System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
