Fuel Line/Quick-Connect Fitting Installation

NOTE: Before you work on the fuel lines and fittings, read the Fuel Line/Quick-Connect Fitting Precautions (see FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS ).

Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed.

Fig 1: Checking Contact Area Of Line For Dirt Or Damage
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
- replacing the fuel rail.
- replacing the fuel line.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the EVAP canister.
- replacing the fuel fill pipe.
- replacing the fuel tank.
- removing the retainer from the line.
- NOTE: When you replace a retainer, use the same size and the manufacturer as the original retainer (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).

  Fig 2: Inserting Retainer Into Connector
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Before connecting a new fuel line/quick-connect fitting assembly (A), remove the old retainer (B) from the mating line.

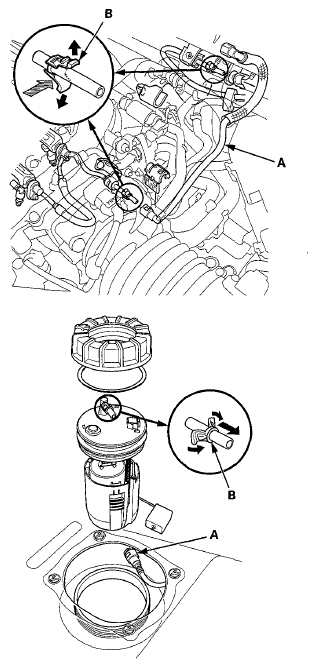

Fig 3: Identifying Retainer Removal Procedure (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

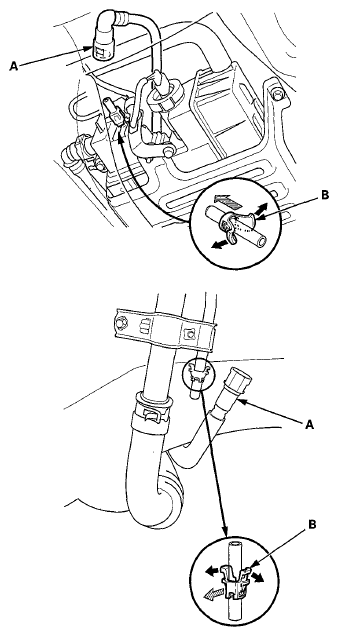

Fig 4: Identifying Retainer Removal Procedure (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the quick-connect fittings with the line (A), and align the retainer locking tabs (B) with the connector grooves (C). Then press the quick-connect fittings onto the line until both retainer tabs lock with a clicking sound.
NOTE: If it is hard to connect, put a small amount of new engine oil on the line end.

Connection with new retainer

Fig 5: Connecting Line With Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to new fuel line

Fig 6: Connecting Retainer With Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Reconnection to existing retainer

Fig 7: Connecting Connector Grooves To Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When you reconnect the connector with the old retainer, make sure the connection is secure and the tabs (A) are firmly locked into place; check visually and also by pulling the connector (B). When you replace the fuel line with a new one, make sure you remove the ring pull (C) upwards after you confirm the connection is secure.
NOTE: Before you remove the ring pull, make sure the fuel line connection is secure. If the connection is not secure, the ring pull could break when you try to remove it.

Fig 8: Checking Fuel Line Connection
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to new fuel line

Fig 9: Connecting Connector To Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect the negative cable to the battery, and turn the ignition switch to ON (II) (but do not operate the starter motor). The fuel pump runs for about 2 seconds, and fuel pressure rises. Repeat this two or three times, then make sure there are no fuel leaks.
If equipped, install the quick-connect fitting cover. Set the groove of the cover (A) on the fuel line (B) as shown, then install it. Make sure the cover is firmly locked in place.

Fig 10: Setting Groove Of Cover On Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
