Air Cleaner Removal/Installation

Do the battery removal procedure (see RECONNECTION ).
Disconnect the MAF sensor/IAT sensor 5P connector (A).

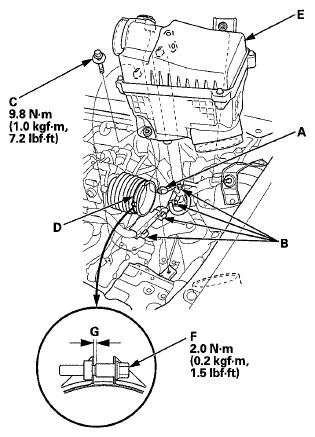

Fig 1: MAF Sensor/IAT Sensor 5P Connector, Harness Clamps And Air Cleaner Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clamps (B) and the bolt (C).
Loosen the band (D), then remove the air cleaner housing (E).
Install the parts in the reverse order of removal.
NOTE: After you torque the hose clamp screw (F), make sure the clearance (G) is less than 0.04 in (1.0 mm).
Do the battery installation procedure (see RECONNECTION ).
