Component Location Index
›

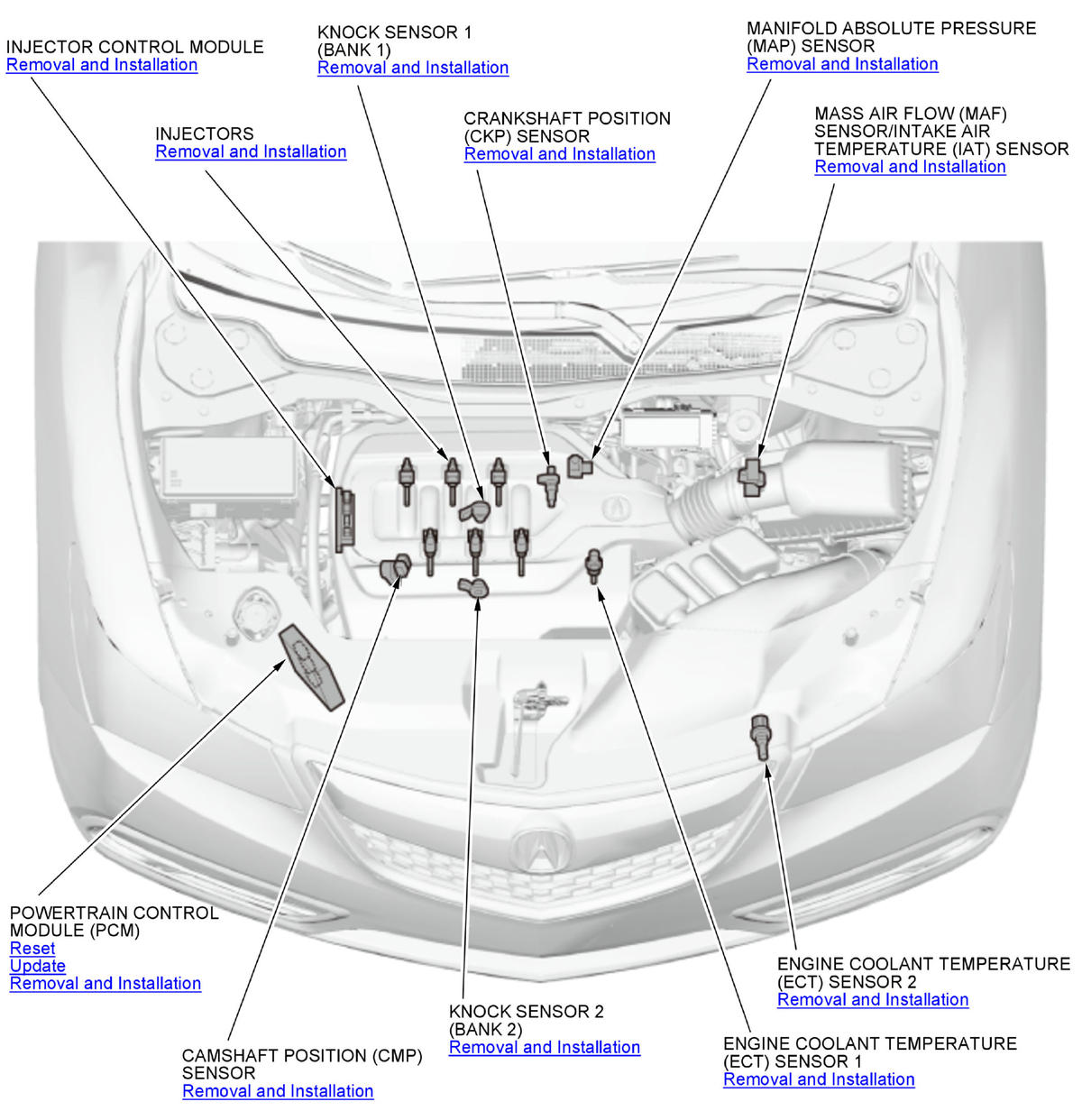

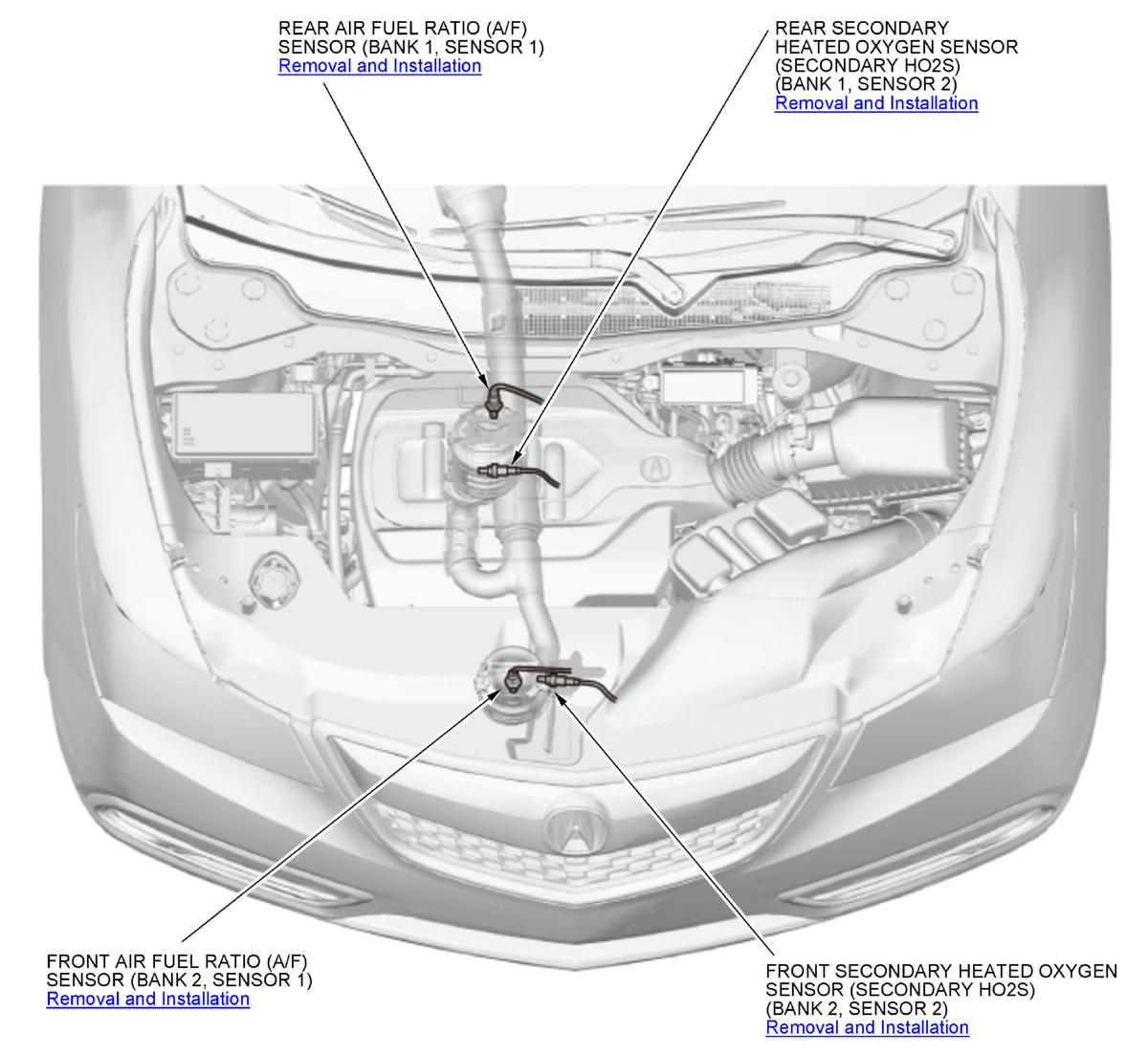

PGM-FI System Component Location Index
PGM-FI System Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
