Engine Block Assembly Component Location Index

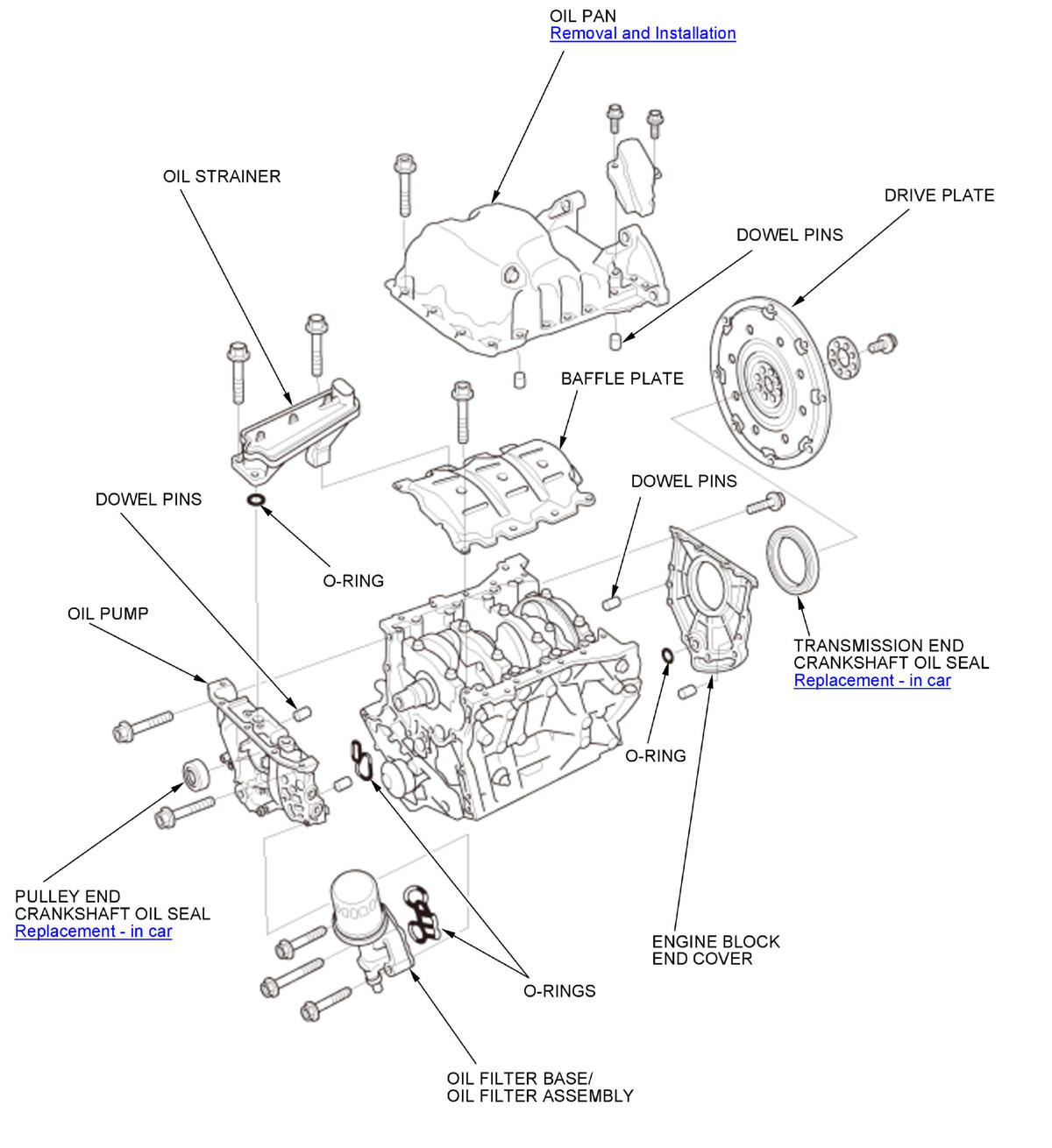

GHH319982

Courtesy of HONDA, U.S.A., INC.

GHH319983

Courtesy of HONDA, U.S.A., INC.

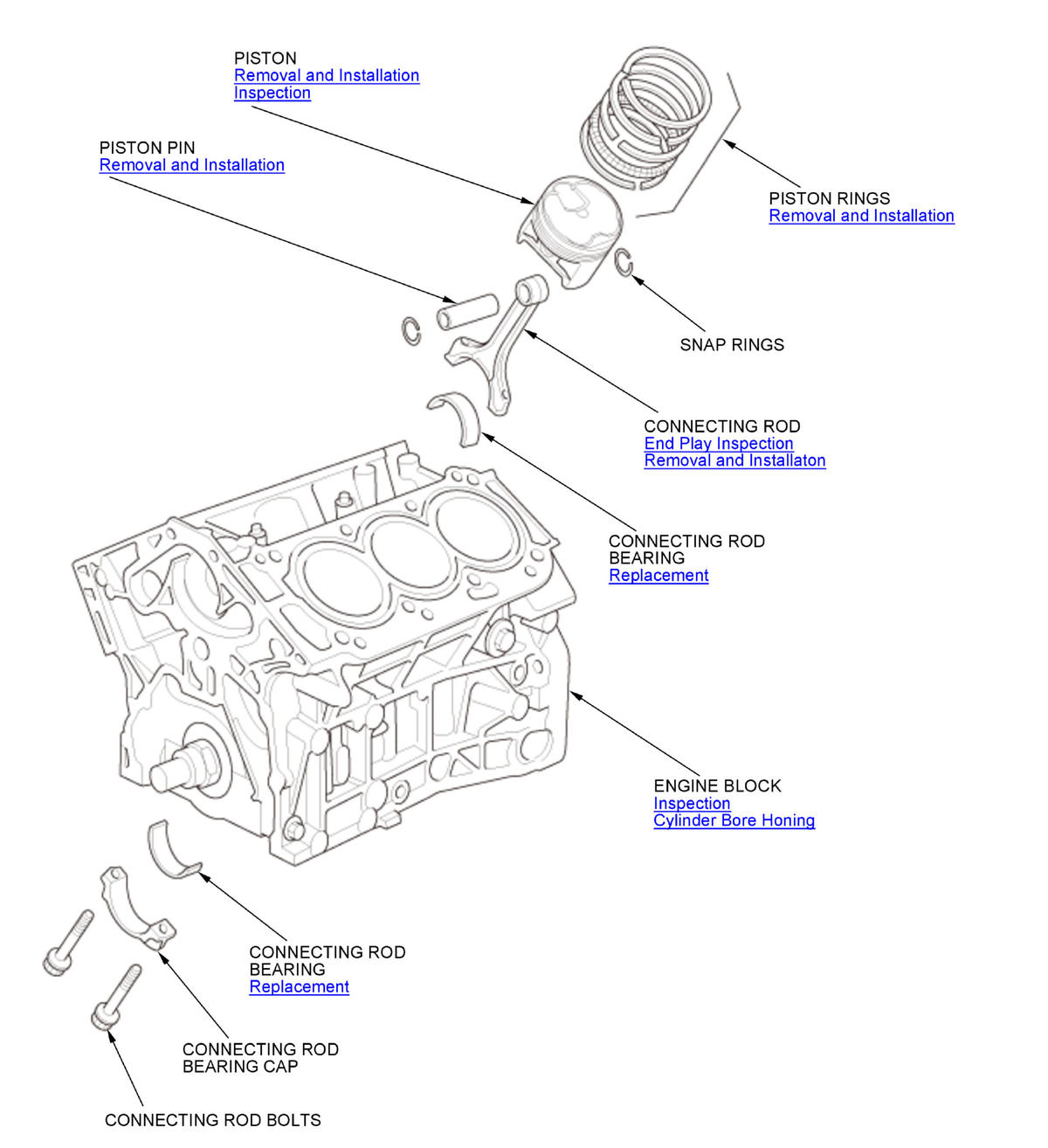

GHH319984

Courtesy of HONDA, U.S.A., INC.
