Keyless Access System Component Location Index

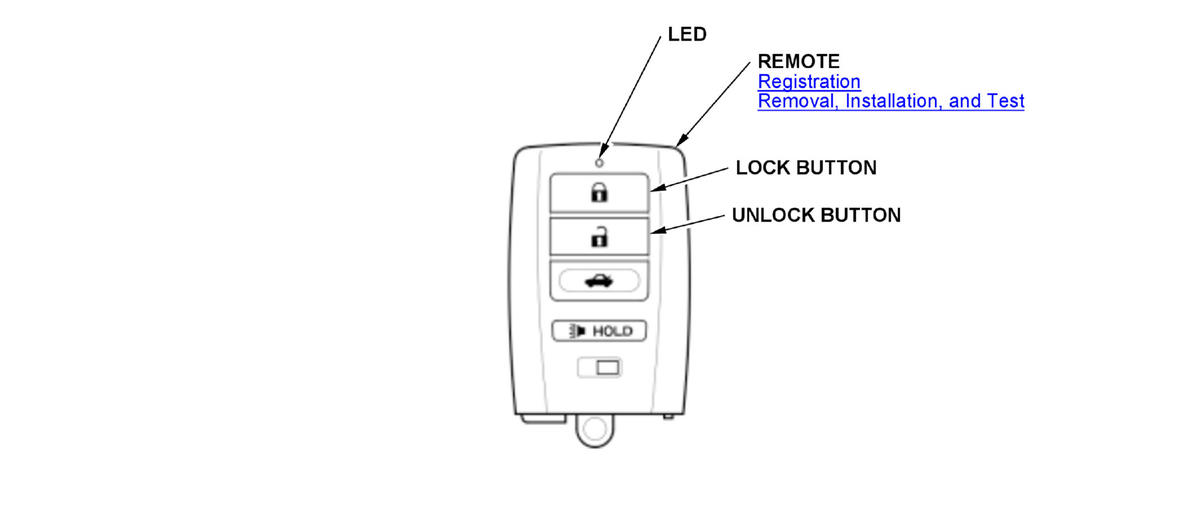

GHH350958

Courtesy of HONDA, U.S.A., INC.

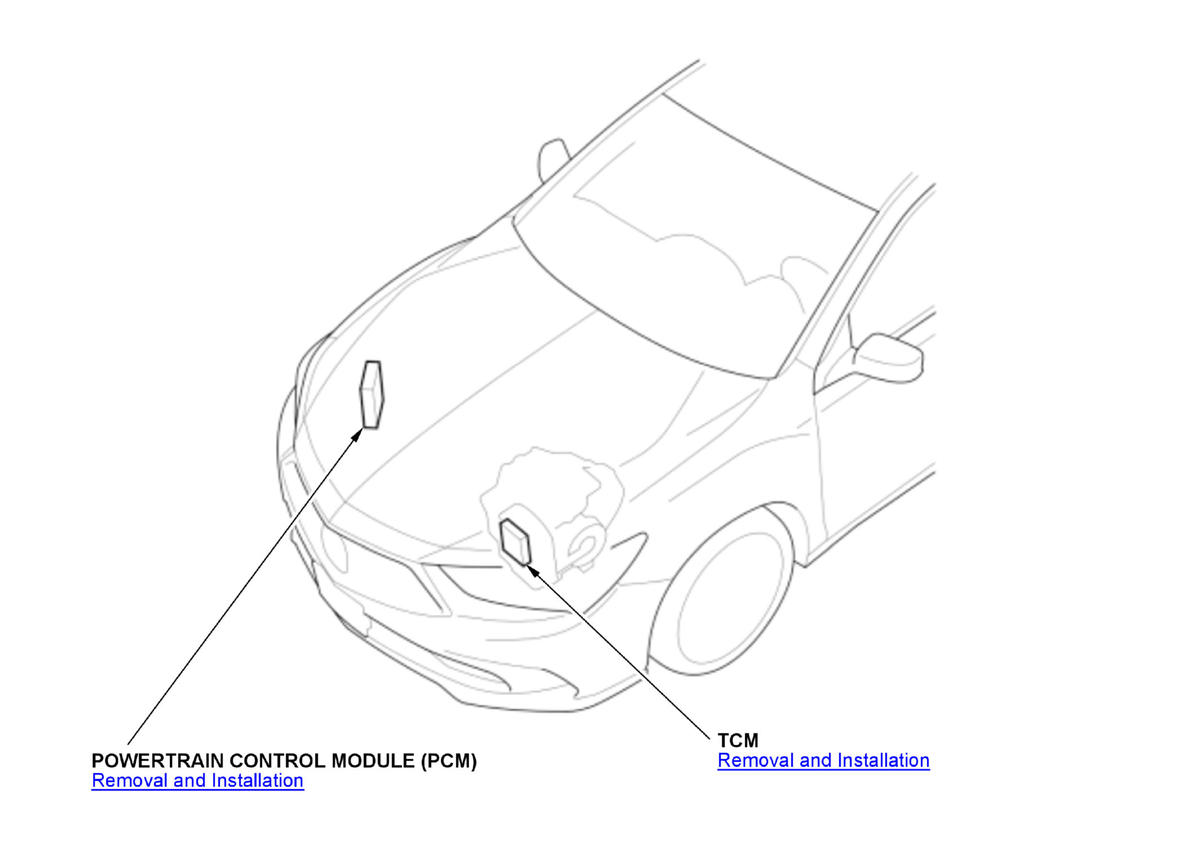

GHH350959

Courtesy of HONDA, U.S.A., INC.

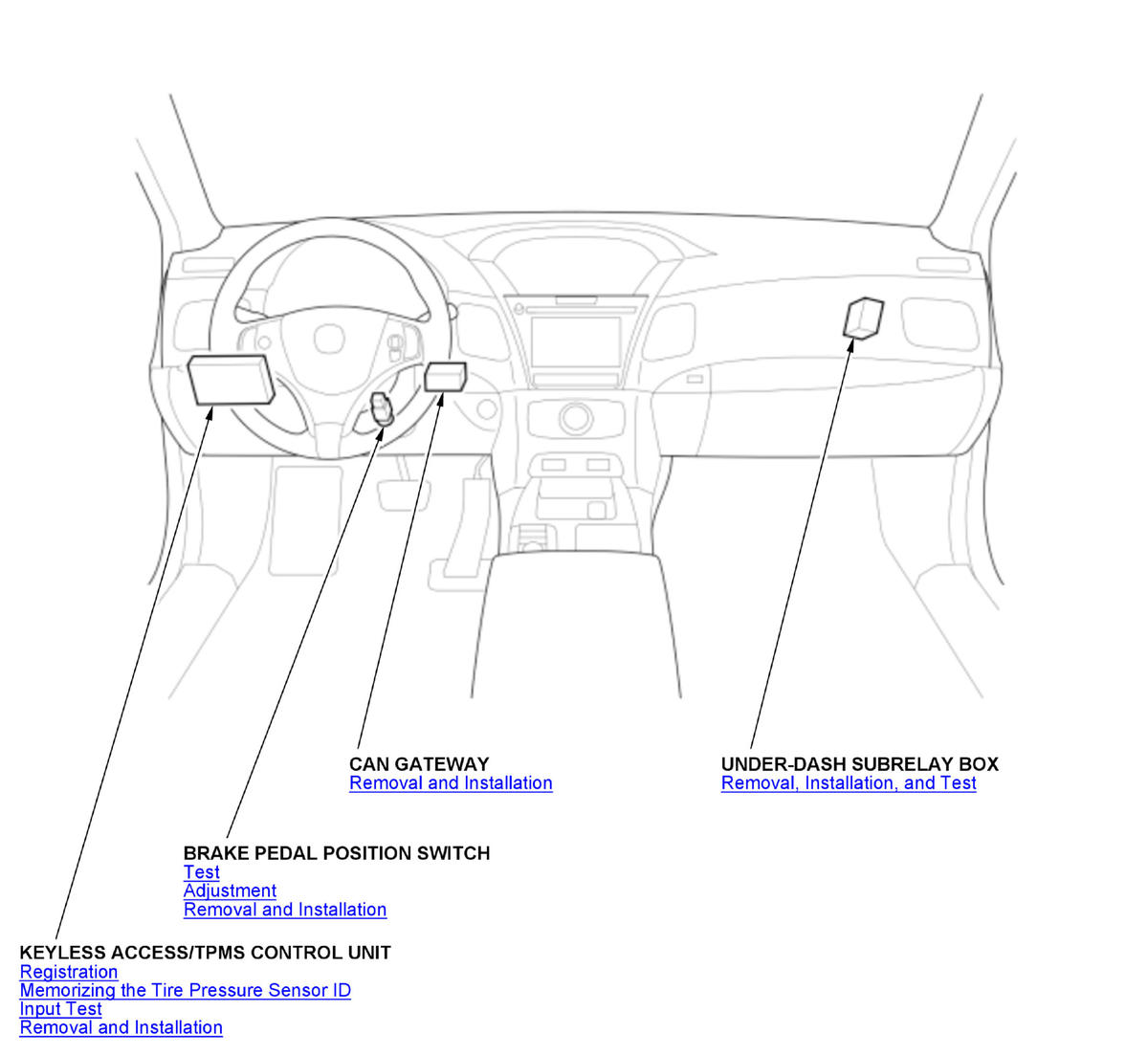

GHH350960

Courtesy of HONDA, U.S.A., INC.

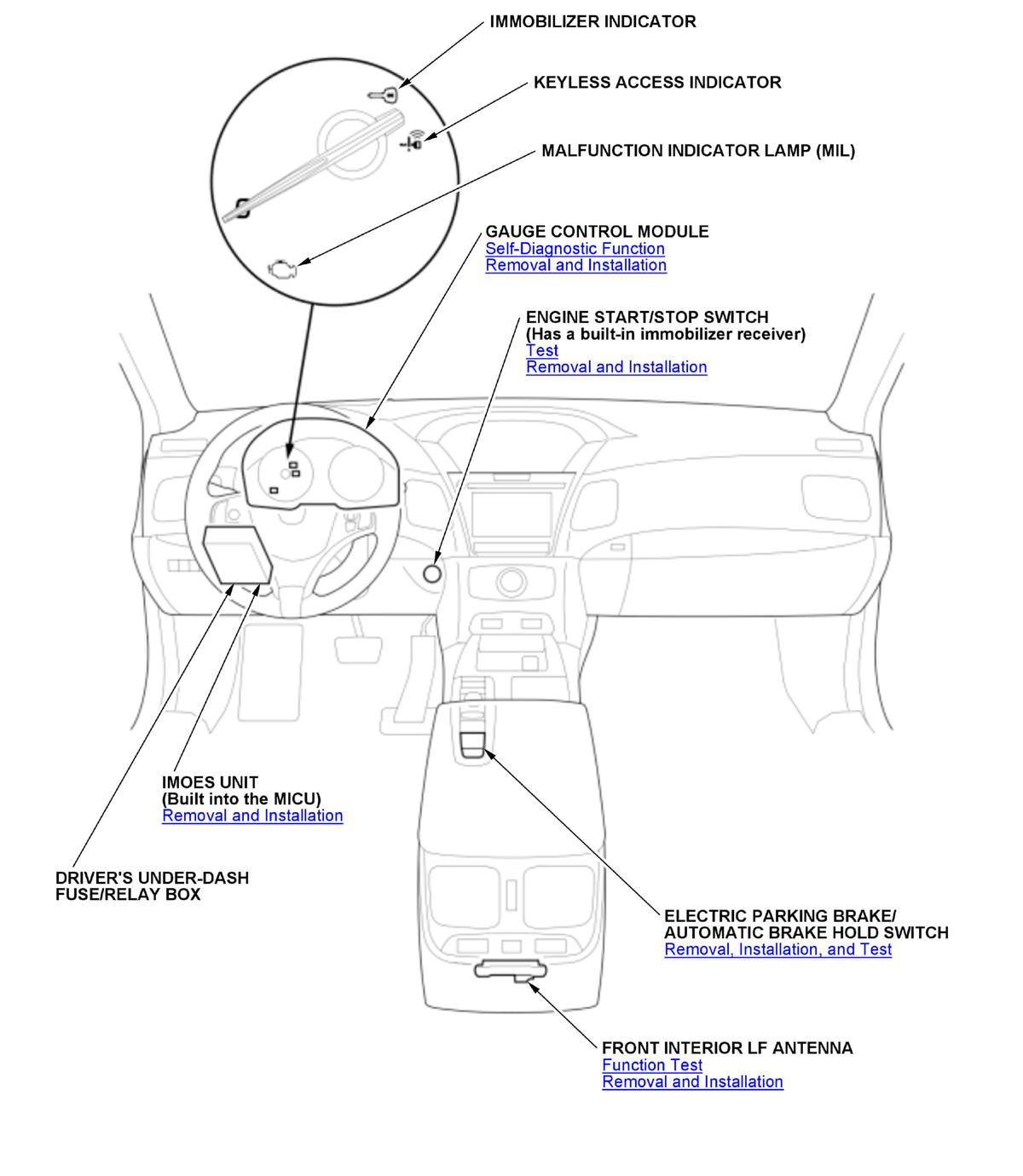

GHH350961

Courtesy of HONDA, U.S.A., INC.

GHH350962

Courtesy of HONDA, U.S.A., INC.

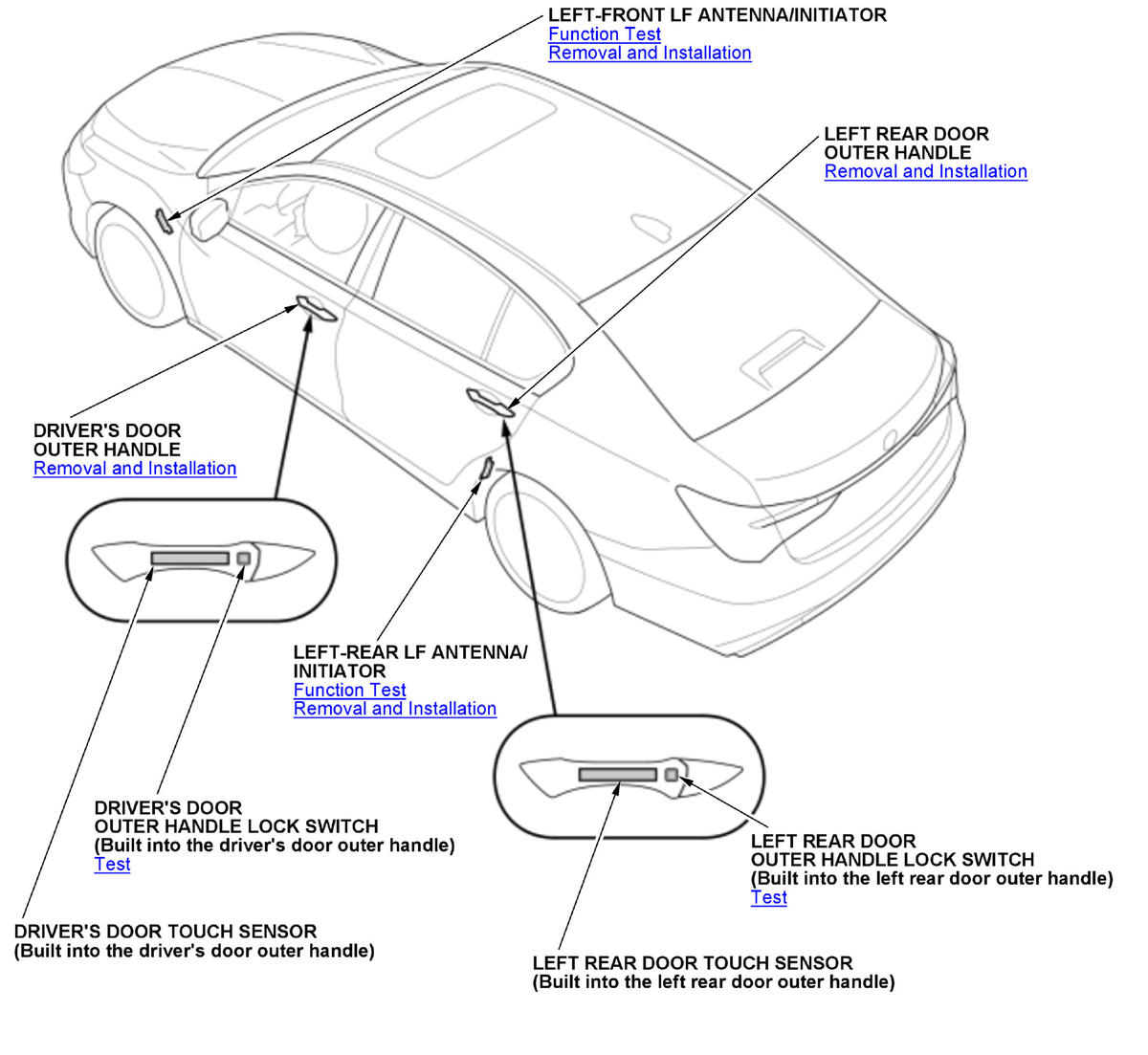

GHH350963

Courtesy of HONDA, U.S.A., INC.

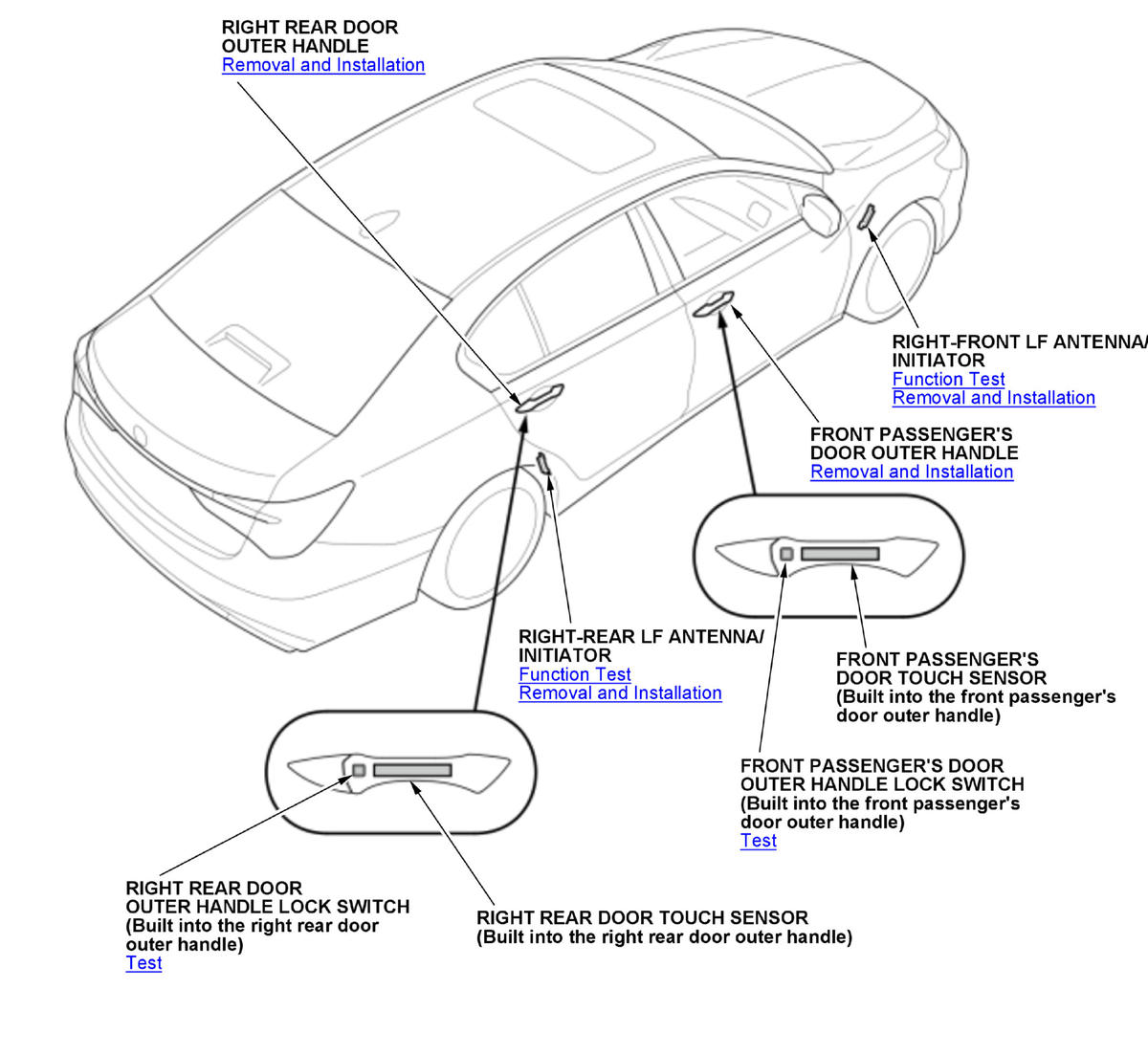

GHH350964

Courtesy of HONDA, U.S.A., INC.

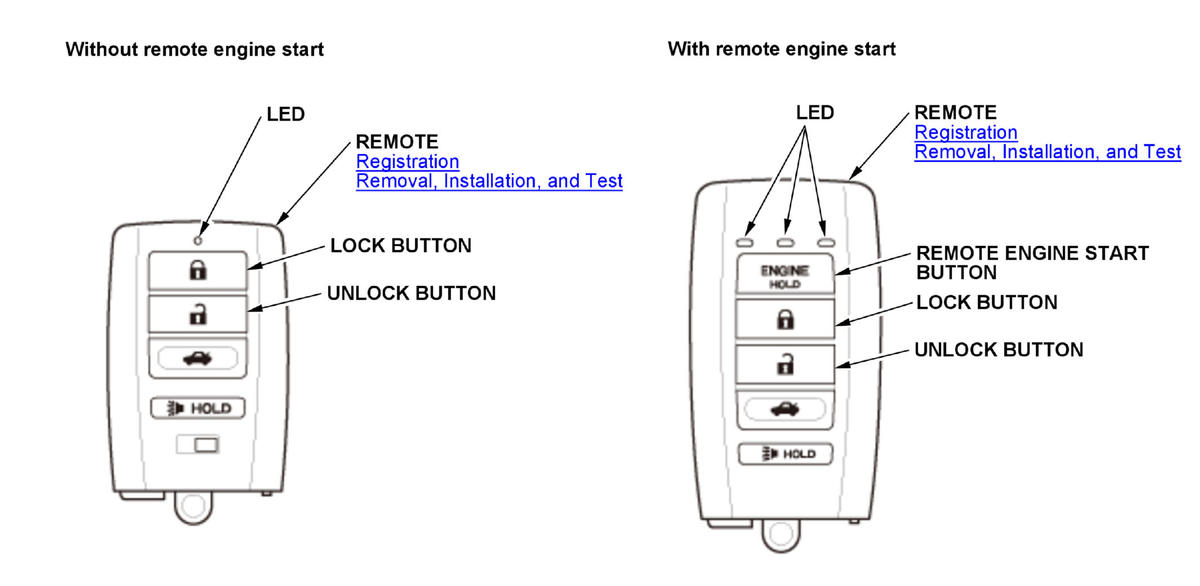

GHH350972

Courtesy of HONDA, U.S.A., INC.

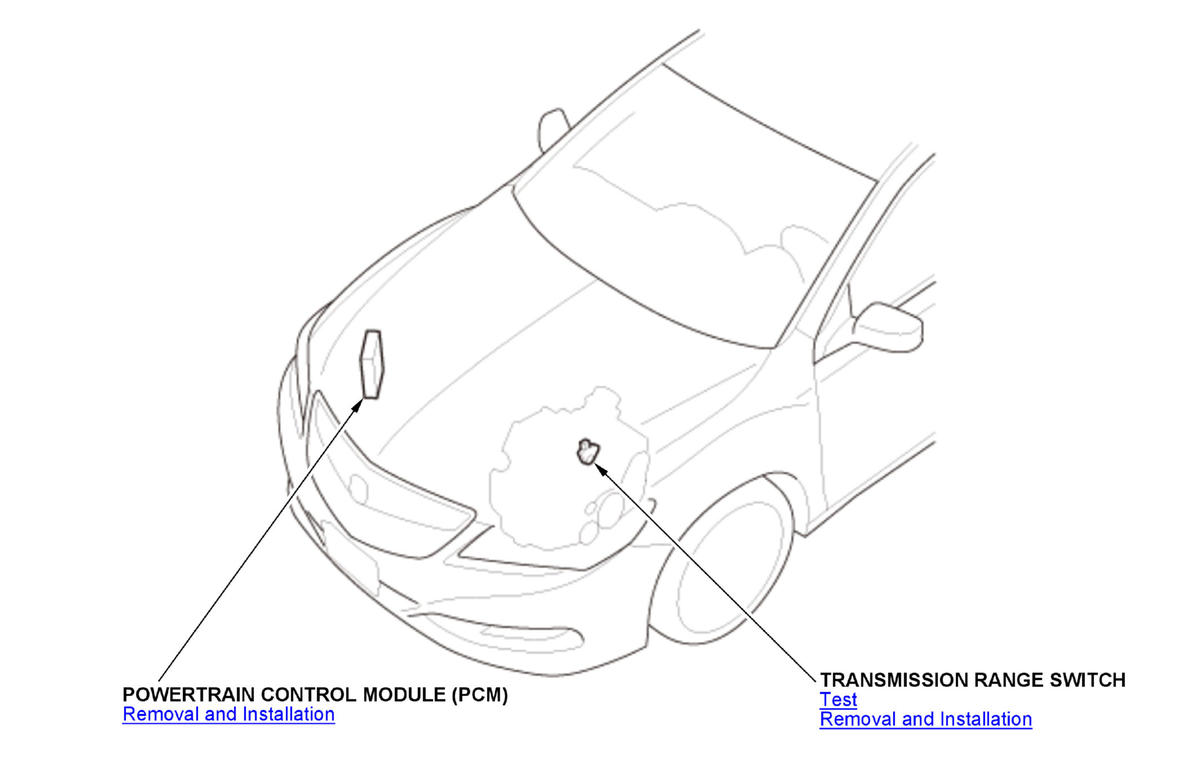

GHH350973

Courtesy of HONDA, U.S.A., INC.

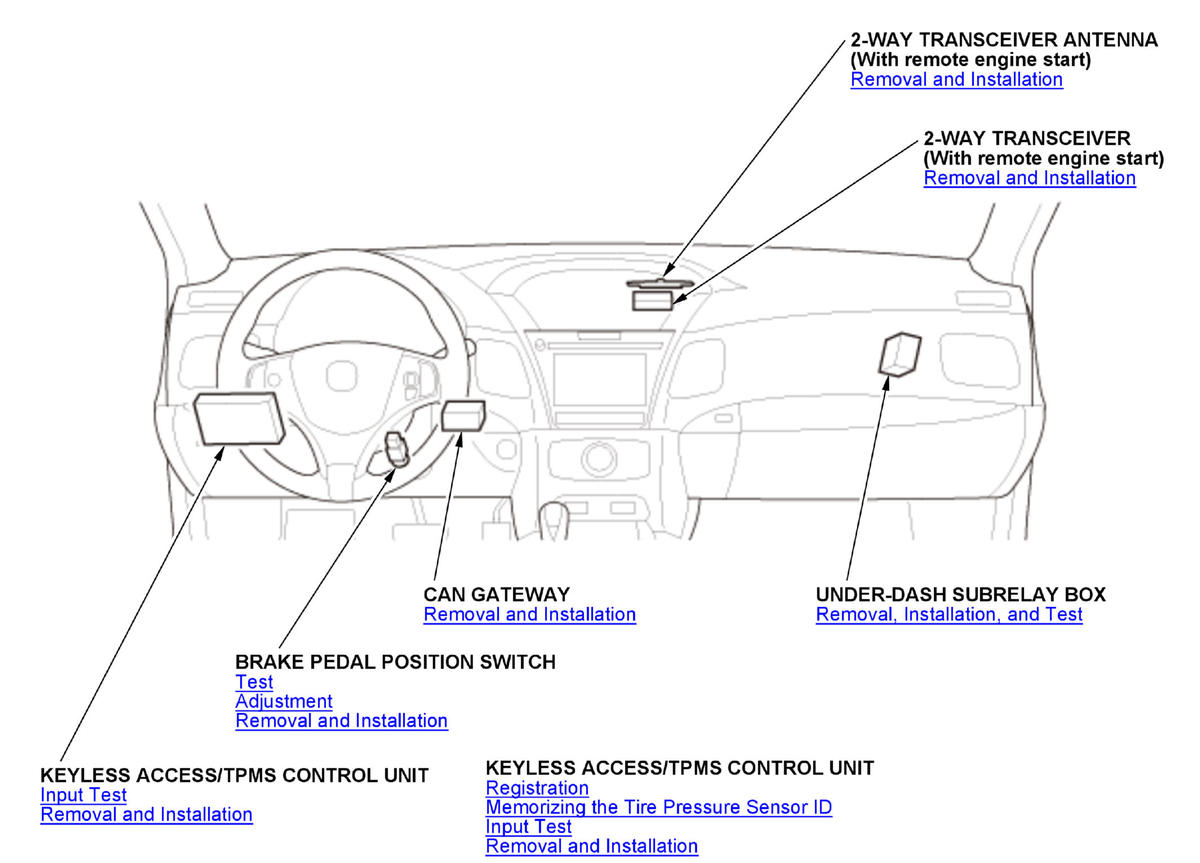

GHH350974

Courtesy of HONDA, U.S.A., INC.

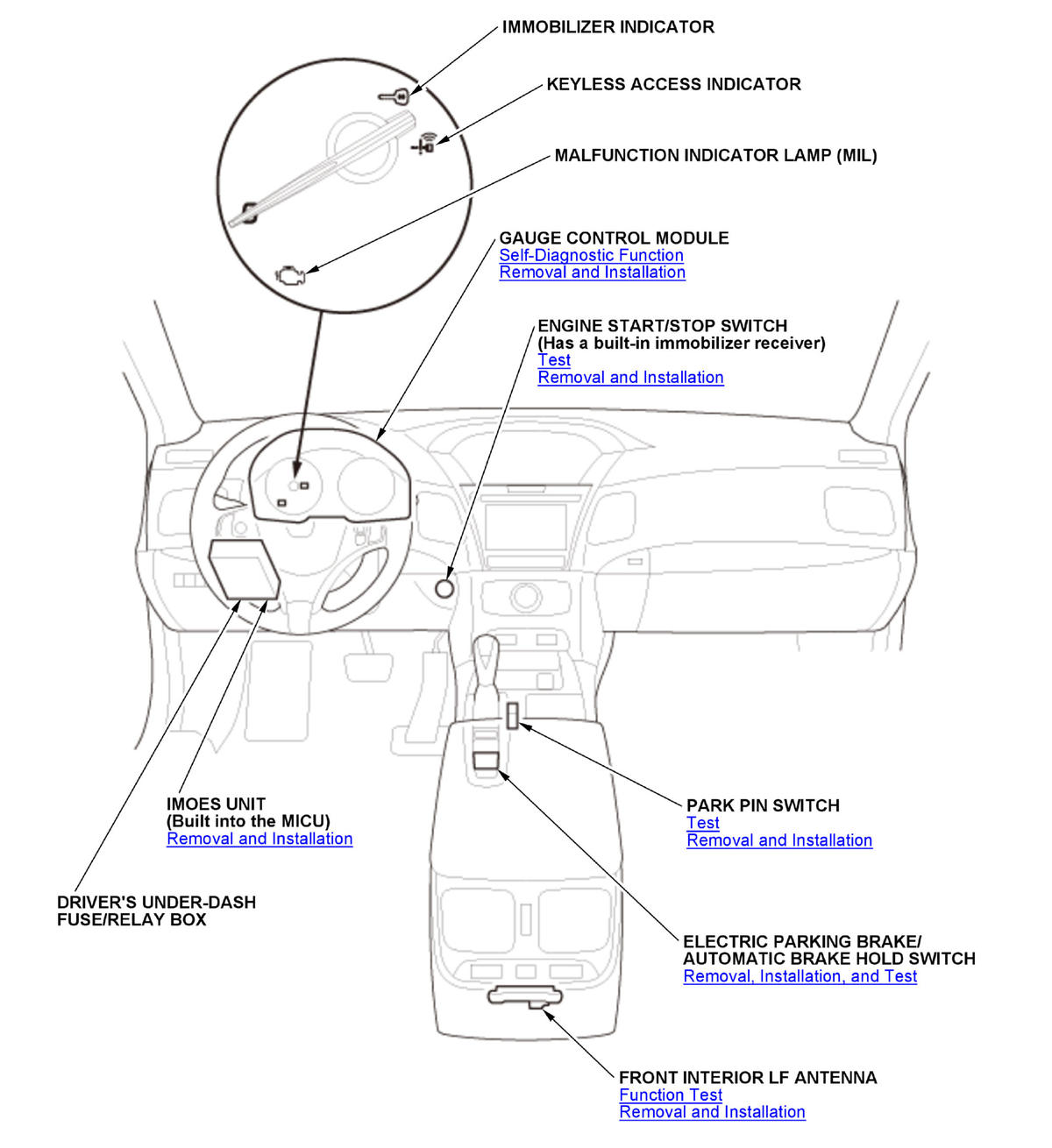

GHH350975

Courtesy of HONDA, U.S.A., INC.

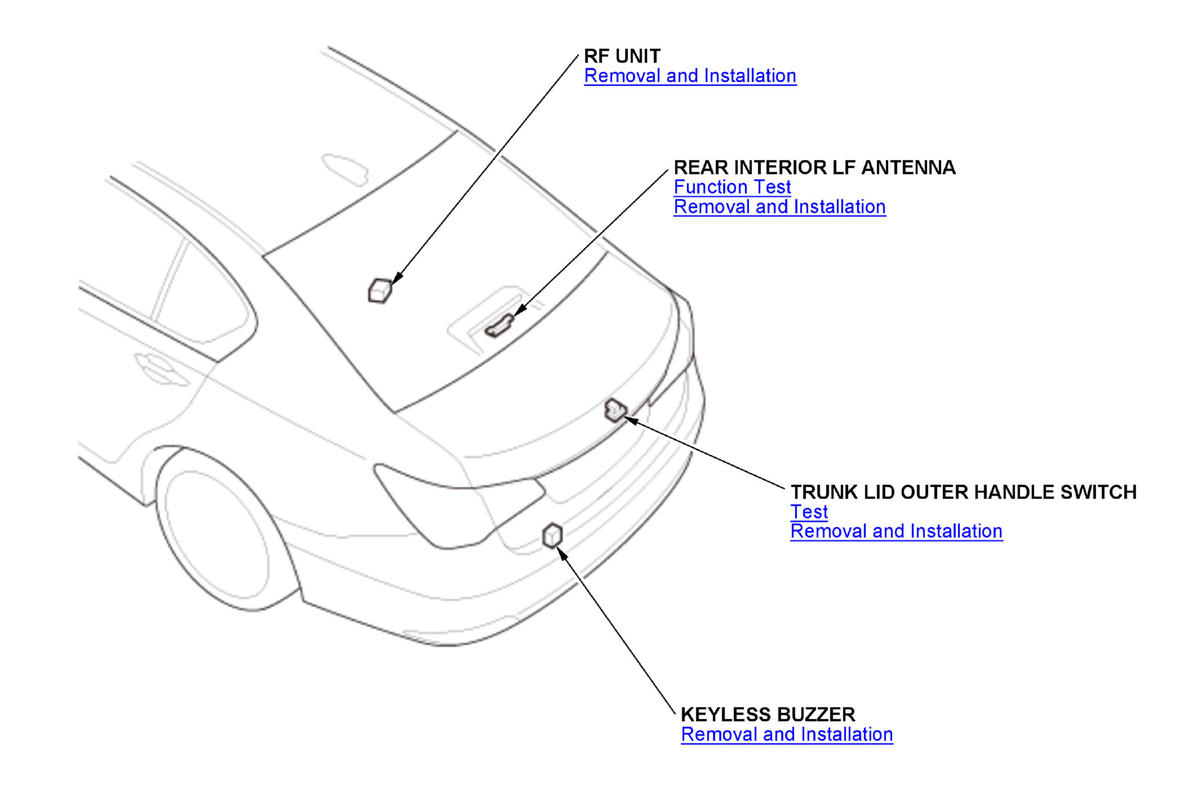

GHH350976

Courtesy of HONDA, U.S.A., INC.

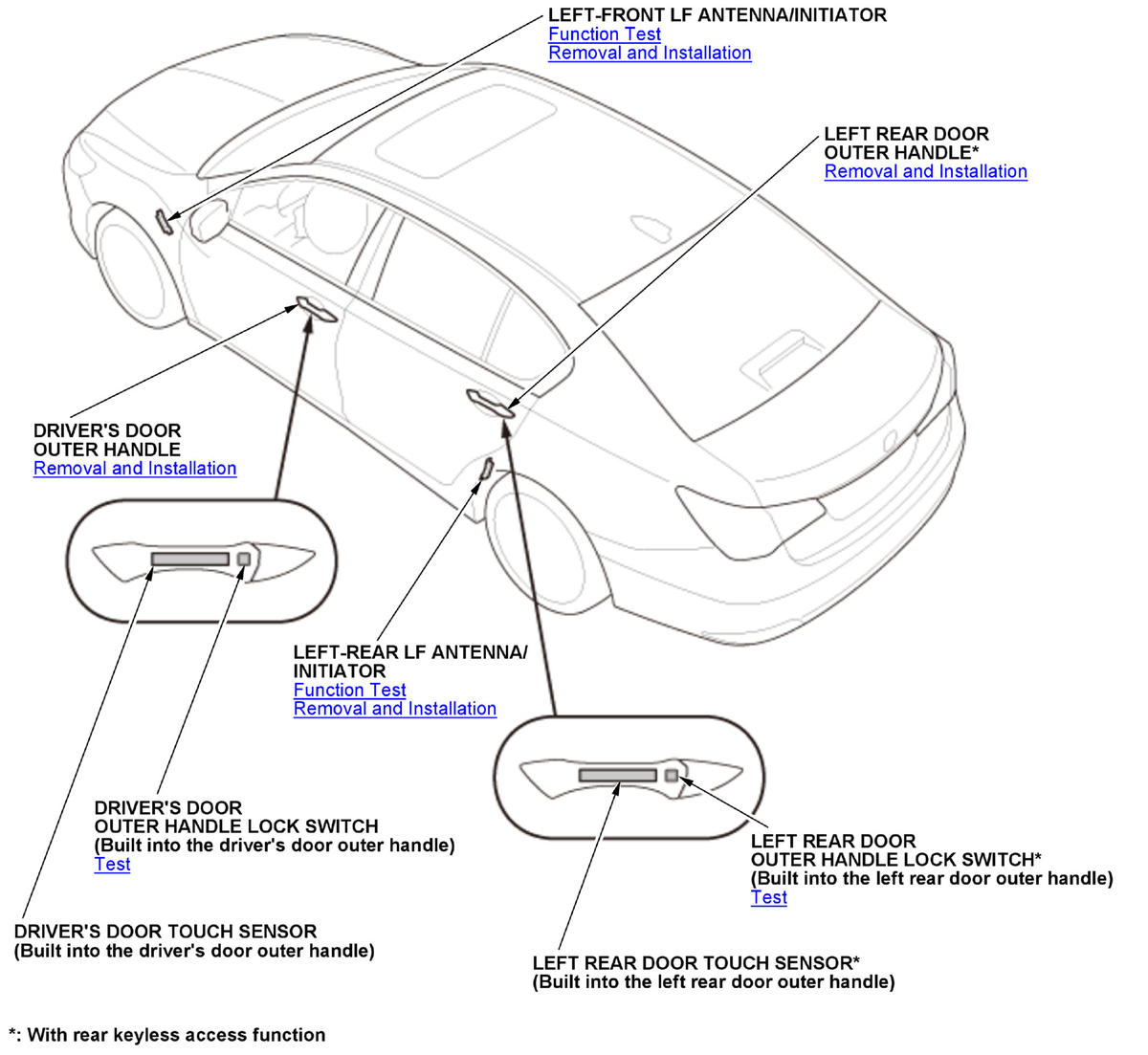

GHH350977

Courtesy of HONDA, U.S.A., INC.

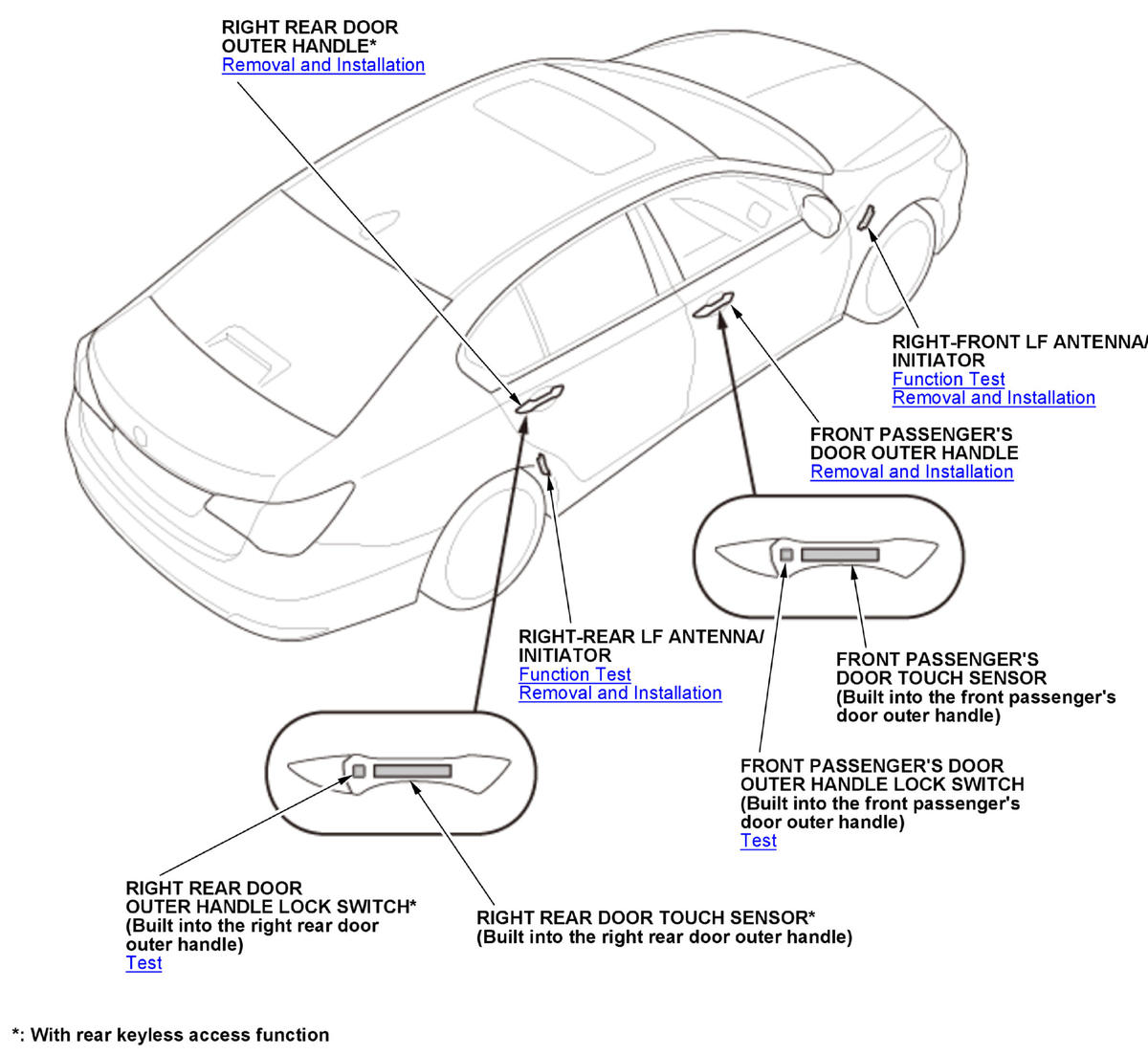

GHH350978

Courtesy of HONDA, U.S.A., INC.
