Air Cleaner Removal And Installation: Removal

Air Cleaner - Remove

Courtesy of HONDA, U.S.A., INC.

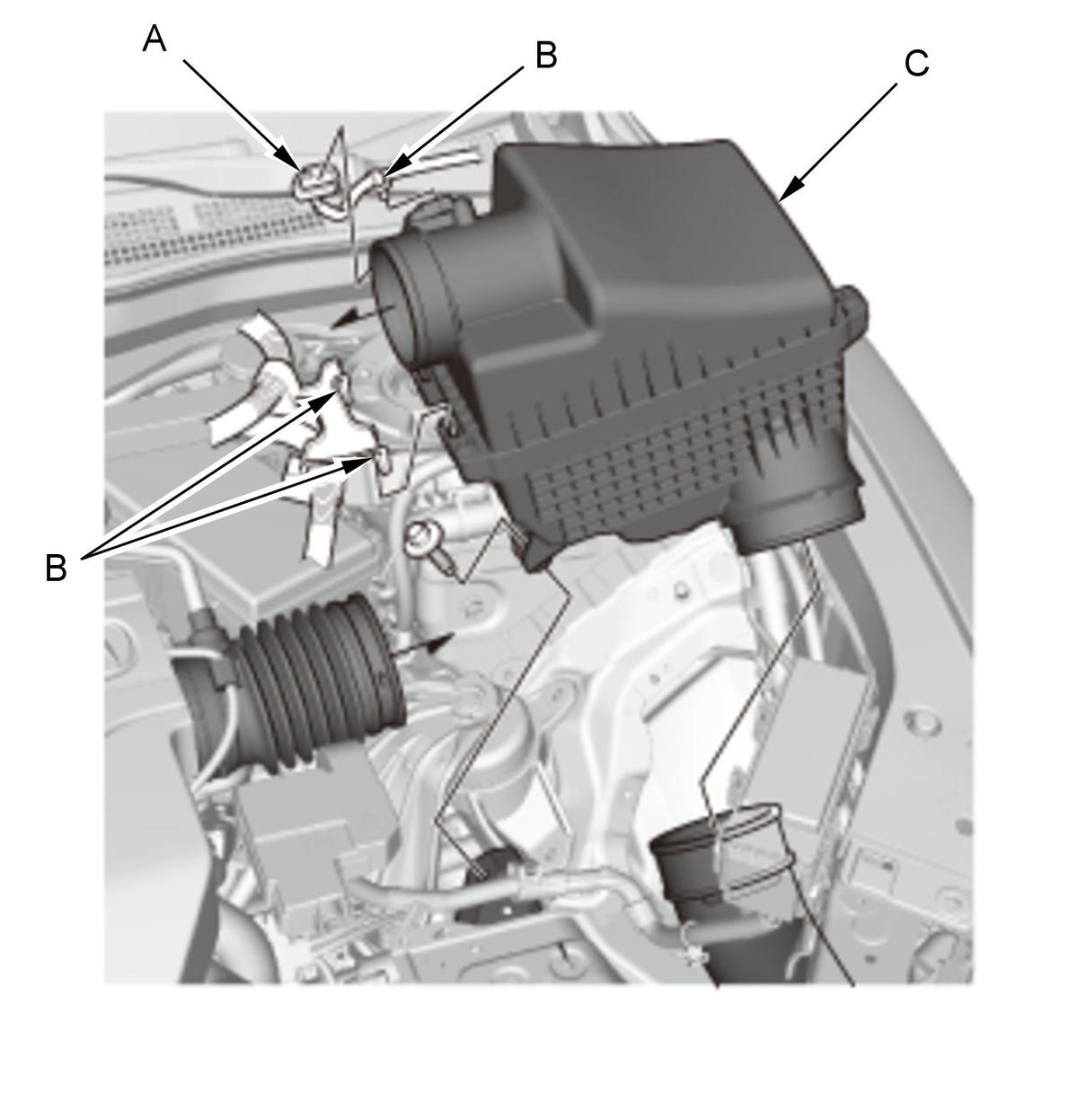

1. Disconnect the MAF sensor/IAT sensor connector (A).

2. Remove the harness clamps (B).

3. Remove the air cleaner (C).
