Secondary HO2S Removal And Installation: Installation

Front Bank (Bank 2)

1. Secondary HO2S - Install

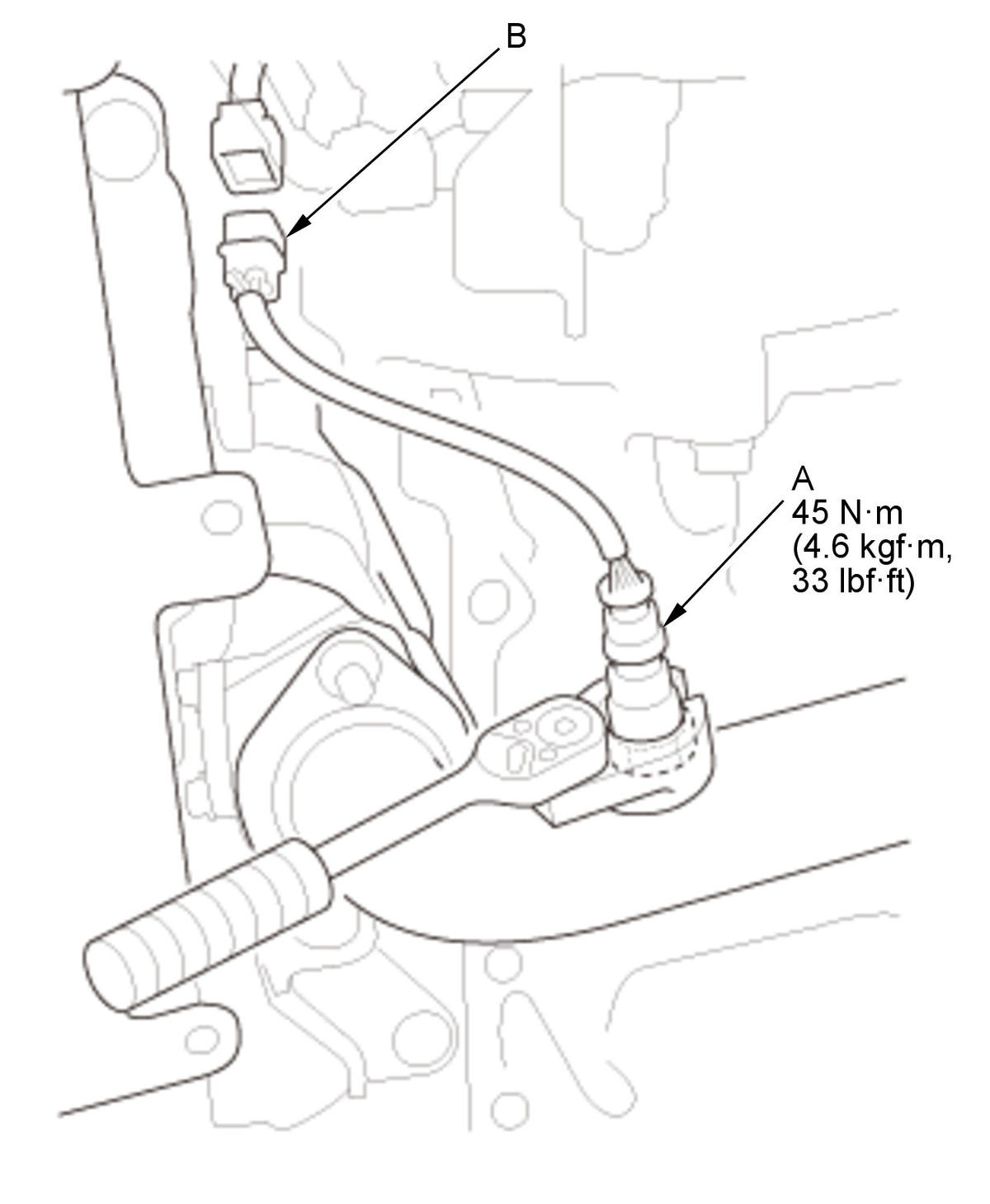

   Fig 1: Secondary HO2S With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install front secondary HO2S (A). 2. Connect the front secondary HO2S connector (B).

   Rear Bank (Bank 1)

2. Secondary HO2S - Install

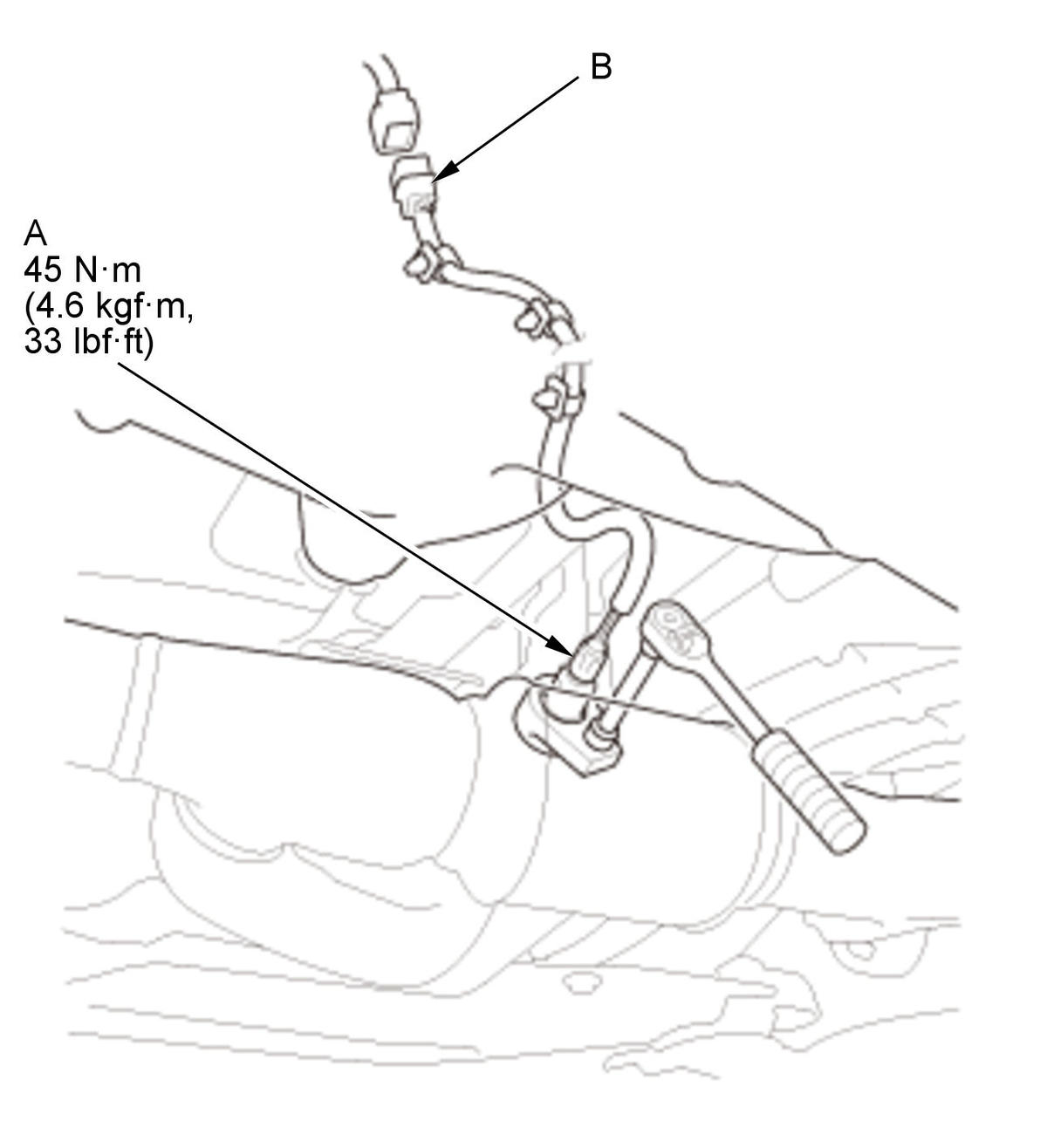

   Fig 2: Secondary HO2S With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install rear secondary HO2S (A). 2. Connect the rear secondary HO2S connector (B).
